CO-100K 100kHz super wide range microphone
An omnidirectional super wide range condenser microphone with unprecedented 20Hz to 100kHz frequency response.
Main Benefits
- 20Hz to 100kHz Microphone
- Unique Diaphragm Design
- For Professional Recording
Tech Specs
Directivity |
Omni directional |
Transducer |
DC biased condenser |
Frequency range |
20Hz - 100kHz |
Sensitivity (nominal at 1kHz) |
39.8mV/Pa ( -28dB,0dB=1V/Pa) |
Equivalent noise level (A-weighted) |
22dB-A |
Max SPL (1% THD) |
125dB SPL |
Output impedance at 1KHz |
150 ohms |
Powering |
+48±4V phantom |
Current consumption |
less than 6mA |
Weight |
150g |
Dimensions |
191.5mm X 20.5mm (diameter) |
Surface finish |
matte black |
Connector |
XLR-3M |
Graphics

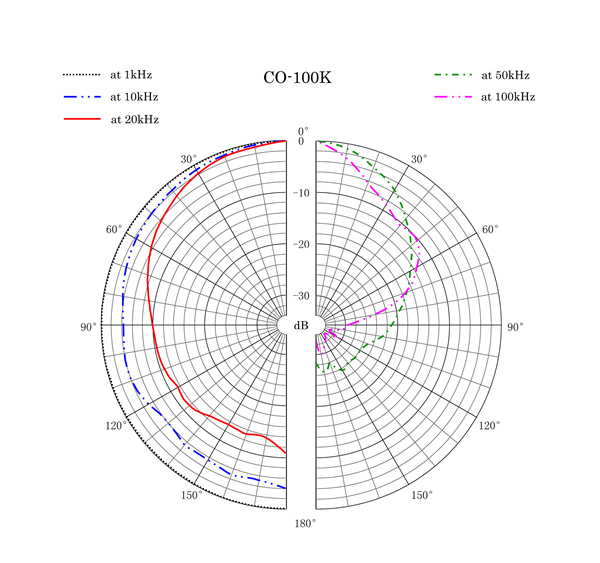

♦ Fig-1

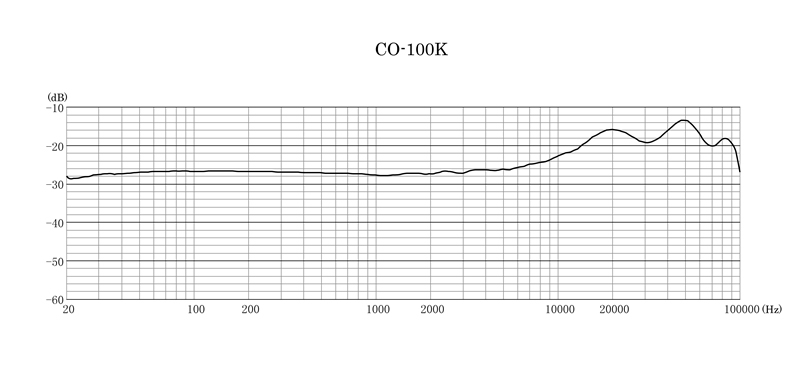

♦ Fig-2
