Product Code: 016925

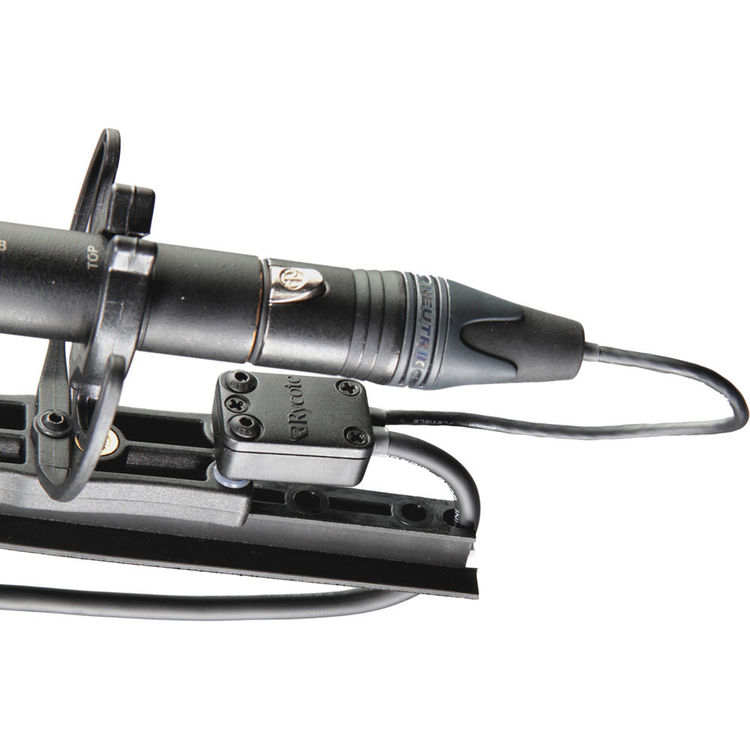

The Connbox has been designed to isolate and greatly reduce handling and cable-borne noise to the microphone. Connbox CB4 is suitable for single shank stereo microphones with 5-pin XLR.
Main Benefits:
- Isolates and minimises handling and cable-borne noise
- Greatly improves audio quality of recordings
- A ready-to-use solution to connection problems
Description
An effective and ready-to-use solution to connection problems, the Connbox will enable professional sound recorders to achieve clean, high quality audio recordings.
Acting as a transition connector and anchor point for the microphone tail, the lengths of cable are set to work perfectly with the microphone fitted in the windshield, without touching the internal surface of the basket. The soft cable then greatly reduces the transmission path of cable-borne noise, thus further reducing cable rumble.
The Connbox is made of the highest quality components, using Gold 5-pin Neutrik X-series XLR connectors, and an ultra soft Mogami star-quad cable.
Tech Specs
INPUT
Input connector: XLR -5F
Input Connbox Connector: Hardwired
Input Cable outside diameter: 2.5mm
Input Cable Exposed Length: 130mm
Input Cable Band Colour: Plain
OUTPUT
Output Connector: XLR – 5M
Output Connbox Connector: Hardwired
Output Cable Outside Diameter: 4.8mm
Output Cable Exposed Length: 450mm
Input Cable Band Colour: Plain
Compatibility
| Audio-Technica AT 815ST (BP4027) |
For more information on this specific microphone, go to Audio-Technicas website at http://www.audio-technica.com/world_map/. |
| Audio-Technica AT 822 |
The AT822 is ideal for DAT recording as well as television, FM and field applications. Its compact, lightweight design is perfect for... |
| Audio-Technica AT 825 |
For more information on this specific microphone, go to Audio-Technicas website at http://www.audio-technica.com/world_map/. |
| Edirol CS-50 |
A compact, lightweight stereo microphone for location use, particularly with the R-4 and R-4 Pro recorders. The polar pattern is sele... |
| Panasonic MS 2 |
A very light microphone specially made for MS recording in TV, video and film production. The M and S signals are combined by the int... |
| Pearl MS 2 |
A very light microphone specially made for MS recording in TV, video and film production. The M and S signals are combined by the int... |
| Pearl MS 8 |
For more information on this specific microphone, go to Pearl Microphones website at http://www.pearlmicrophones.com |
| Pearl MSH 10 |
Specially made for MS recording in TV, video and film production, the MSH 10 has a short shotgun and figure-of-8 capsule system to de... |
| Pearl MSH 20 |
A short shotgun and figure-of-8 capsule system which delivers a Middle and Side signal. These are combined by an internal matrix to p... |
| Pearl MSH 20 |
A short shotgun and figure-of-8 capsule system which delivers a Middle and Side signal. These are combined by an internal matrix to p... |
| Sennheiser MKE 44P |
Pre-polarised condenser microphone with two cardioid microphone capsules set at 90° for X-Y stereo applications. Features inc... |
| Sony ECM MS5 |
For more information on this specific product, go to Sony's website at http://www.sony.com |
