DPA 4018 Supercardioid Microphone

This microphone is part of the flexible d:dicate™ Microphones series. It has a highly-directional supercardioid pickup pattern with a smooth and uniform off-axis frequency response.

The supercardioid shape is frequency independent, securing an identical sound color around the microphone. The usual rear lobe heard on most supercardioids is minimized on this capsule. This makes it much more isolated without sudden frequency dependent peaks and dips.

Combine it with the preamp of your choice

At any time, and with no tools needed, it is possible to transform the MMC4018 Supercardioid Microphone Capsule into a new configuration.

The MMP-A Microphone Preamp is an ultra-transparent, transformerless preamp with active drive for impedance balancing. The MMP-C Compact Microphone Preamp is an ultra-compact preamp with active drive for impedance balancing. It has a slightly softer character than the other preamps in the d:dicate™ Microphones Series.

Other preamps include the very small form factor types MMP-E Modular Active Cable (XLR output) and MMP-G Modular Active Cable (MicroDot output), allowing for very slim set-ups. The MMP-G even allows you to match a larger microphone directly to a wireless transmitter. The MMP-G, together with the GSM4000 Gooseneck Shock Mount, can be used for anything from very lightweight booming applications to very high-end instrument miking using the d:vote™ 4099 series of instrument mounting options.

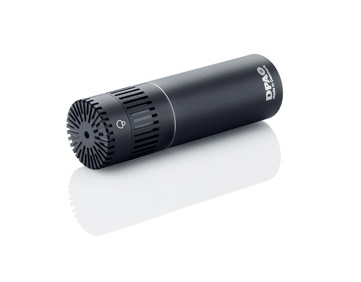

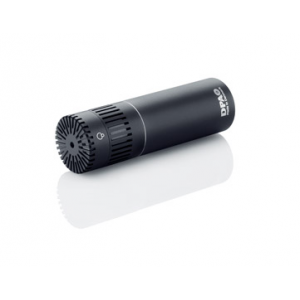

d:dicate™ 4018C Compact Supercardioid Microphone

A bit about supercardioids

A supercardioid microphone is similar to a cardioid – it is most sensitive to sound coming in at the front and is least sensitive at the back. Supercardioid mics tend to have a much narrower angle of sensitivity  (and hypercardioids even narrower) – making them even more focused than a “normal” cardioid mic. The off-axis sound will normally be more or less colored and damped – and, due to the narrow angle of focus, the area of damped sound is increased significantly. The unique DPA capsule technique however skips the colorization of the sound coming from the sides or the rear of the mic and just reduces the sensitivity to these angles and thereby offers perfect sound stages. The amount of damping depends on the exact specifications of the mic.

Due to their nature, supercardioid mics are often used on the live stage – both during concerts as well as spoken-word events, to capture the focused sound of an instrument or voice. The narrow angle of sensitivity helps to minimize the bleed from other sounds on a busy stage. One thing to note with supercardioid mics is the proximity effect, which causes an increase in bass response the closer the microphone is moved to the sound source. In addition, supercardioid mics are far more sensitive to wind, pop and handling noises than omni mics, so be sure to take precautions to guard against this.

This microphone is part of the flexible d:dicate™ Microphones series. It has a highly-directional supercardioid pickup pattern with a smooth and uniform off-axis frequency response.

The supercardioid shape is frequency independent, securing an identical sound color around the microphone. The usual rear lobe heard on most supercardioids is minimized on this capsule. This makes it much more isolated without sudden frequency dependent peaks and dips.

Combine it with the preamp of your choice

At any time, and with no tools needed, it is possible to transform the MMC4018 Supercardioid Microphone Capsule into a new configuration.

The MMP-A Microphone Preamp is an ultra-transparent, transformerless preamp with active drive for impedance balancing. The MMP-C Compact Microphone Preamp is an ultra-compact preamp with active drive for impedance balancing. It has a slightly softer character than the other preamps in the d:dicate™ Microphones Series.

Other preamps include the very small form factor types MMP-E Modular Active Cable (XLR output) and MMP-G Modular Active Cable (MicroDot output), allowing for very slim set-ups. The MMP-G even allows you to match a larger microphone directly to a wireless transmitter. The MMP-G, together with the GSM4000 Gooseneck Shock Mount, can be used for anything from very lightweight booming applications to very high-end instrument miking using the d:vote™ 4099 series of instrument mounting options.

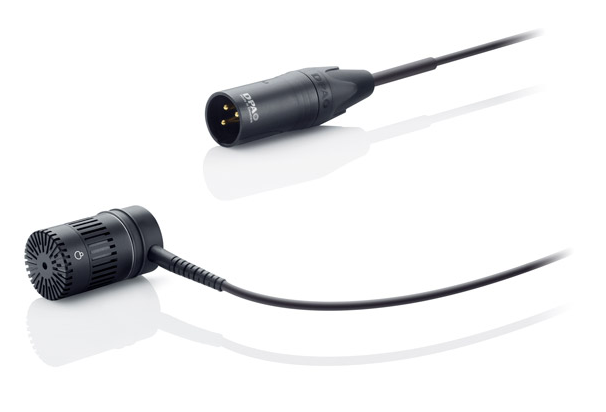

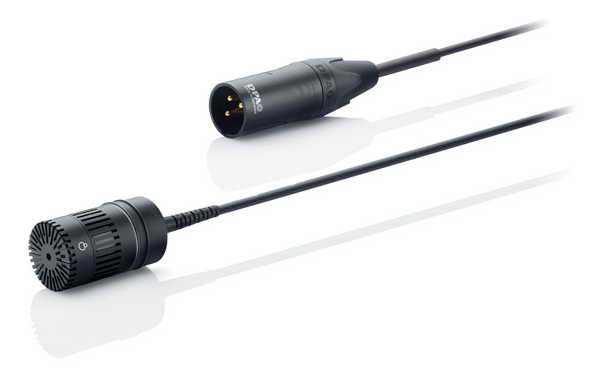

d:dicate™ 4018ER/ES Supercardioid Microphone

Ideal for unobtrusive or distant miking applications such as desktop or hanging use, the d:dicate™ 4018ER/ES Supercardioid Microphone is an ultra-compact supercardioid microphone.

With a length of only 35 mm (1.38 in), the low-key appearance of the mic is as unique as its highly-directional supercardioid pickup pattern with a smooth and uniform off-axis frequency response.

The d:dicate™ 4018ER/ES Supercardioid Microphone combines the MMC4018 Supercardioid Microphone Capsule with the MMP-ER/ES Modular Active Cable, XLR, an integrated cable solution with either side (4018ES) or rear (4018ER) cable entry. It is designed for a broad range of music recording and broadcast / ENG / film long-distance miking applications. It is ideal for use as spot or hanging mic for orchestra recording situations when used with the SM4000-C Suspension Mount, which is included in the package. This allows the 4018E to be hung from the ceiling and create precision spot miking of orchestra sections or ambience atmosphere.

A bit about supercardioids

A supercardioid microphone is similar to a cardioid – it is most sensitive to sound coming in at the front and is least sensitive at the back. Supercardioid mics tend to have a much narrower angle of sensitivity  (and hypercardioids even narrower) – making them even more focused than a “normal” cardioid mic. The off-axis sound will normally be more or less colored and damped – and, due to the narrow angle of focus, the area of damped sound is increased significantly. The unique DPA capsule technique however skips the colorization of the sound coming from the sides or the rear of the mic and just reduces the sensitivity to these angles and thereby offers perfect sound stages. The amount of damping depends on the exact specifications of the mic.

Due to their nature, supercardioid mics are often used on the live stage – both during concerts as well as spoken-word events, to capture the focused sound of an instrument or voice. The narrow angle of sensitivity helps to minimize the bleed from other sounds on a busy stage. One thing to note with supercardioid mics is the proximity effect, which causes an increase in bass response the closer the microphone is moved to the sound source. In addition, supercardioid mics are far more sensitive to wind, pop and handling noises than omni mics, so be sure to take precautions to guard against this.

This microphone is part of the flexible d:dicate™ Microphones series. It has a highly-directional supercardioid pickup pattern with a smooth and uniform off-axis frequency response.

The supercardioid shape is frequency independent, securing an identical sound color around the microphone. The usual rear lobe heard on most supercardioids is minimized on this capsule. This makes it much more isolated without sudden frequency dependent peaks and dips.

Combine it with the preamp of your choice

At any time, and with no tools needed, it is possible to transform the MMC4018 Supercardioid Microphone Capsule into a new configuration.

The MMP-A Microphone Preamp is an ultra-transparent, transformerless preamp with active drive for impedance balancing. The MMP-C Compact Microphone Preamp is an ultra-compact preamp with active drive for impedance balancing. It has a slightly softer character than the other preamps in the d:dicate™ Microphones Series.

Other preamps include the very small form factor types MMP-E Modular Active Cable (XLR output) and MMP-G Modular Active Cable (MicroDot output), allowing for very slim set-ups. The MMP-G even allows you to match a larger microphone directly to a wireless transmitter. The MMP-G, together with the GSM4000 Gooseneck Shock Mount, can be used for anything from very lightweight booming applications to very high-end instrument miking using the d:vote™ 4099 series of instrument mounting options.

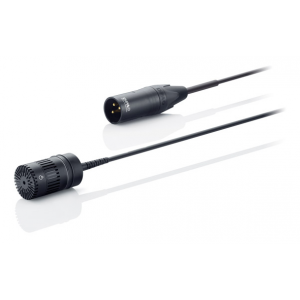

d:dicate™ 4018ER/ES Supercardioid Microphone

Ideal for unobtrusive or distant miking applications such as desktop or hanging use, the d:dicate™ 4018ER/ES Supercardioid Microphone is an ultra-compact supercardioid microphone.

With a length of only 35 mm (1.38 in), the low-key appearance of the mic is as unique as its highly-directional supercardioid pickup pattern with a smooth and uniform off-axis frequency response.

The d:dicate™ 4018ER/ES Supercardioid Microphone combines the MMC4018 Supercardioid Microphone Capsule with the MMP-ER/ES Modular Active Cable, XLR, an integrated cable solution with either side (4018ES) or rear (4018ER) cable entry. It is designed for a broad range of music recording and broadcast / ENG / film long-distance miking applications. It is ideal for use as spot or hanging mic for orchestra recording situations when used with the SM4000-C Suspension Mount, which is included in the package. This allows the 4018E to be hung from the ceiling and create precision spot miking of orchestra sections or ambience atmosphere.

A bit about supercardioids

A supercardioid microphone is similar to a cardioid – it is most sensitive to sound coming in at the front and is least sensitive at the back. Supercardioid mics tend to have a much narrower angle of sensitivity  (and hypercardioids even narrower) – making them even more focused than a “normal” cardioid mic. The off-axis sound will normally be more or less colored and damped – and, due to the narrow angle of focus, the area of damped sound is increased significantly. The unique DPA capsule technique however skips the colorization of the sound coming from the sides or the rear of the mic and just reduces the sensitivity to these angles and thereby offers perfect sound stages. The amount of damping depends on the exact specifications of the mic.

Due to their nature, supercardioid mics are often used on the live stage – both during concerts as well as spoken-word events, to capture the focused sound of an instrument or voice. The narrow angle of sensitivity helps to minimize the bleed from other sounds on a busy stage. One thing to note with supercardioid mics is the proximity effect, which causes an increase in bass response the closer the microphone is moved to the sound source. In addition, supercardioid mics are far more sensitive to wind, pop and handling noises than omni mics, so be sure to take precautions to guard against this.

Combine it with the preamp of your choice

At any time, and with no tools needed, it is possible to transform the MMC4018 Supercardioid Microphone Capsule into a new configuration.

The MMP-A Microphone Preamp is an ultra-transparent, transformerless preamp with active drive for impedance balancing. The MMP-C Compact Microphone Preamp is an ultra-compact preamp with active drive for impedance balancing. It has a slightly softer character than the other preamps in the d:dicate™ Microphones Series.

Other preamps include the very small form factor types MMP-E Modular Active Cable (XLR output) and MMP-G Modular Active Cable (MicroDot output), allowing for very slim set-ups. The MMP-G even allows you to match a larger microphone directly to a wireless transmitter. The MMP-G, together with the GSM4000 Gooseneck Shock Mount, can be used for anything from very lightweight booming applications to very high-end instrument miking using the d:vote™ 4099 series of instrument mounting options.

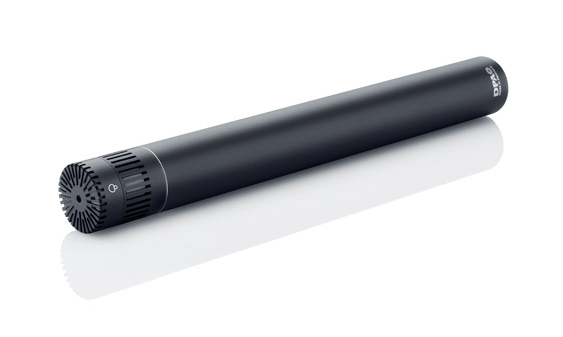

d:dicate™ 4018A Supercardioid Microphone

A bit about supercardioids

A supercardioid microphone is similar to a cardioid – it is most sensitive to sound coming in at the front and is least sensitive at the back. Supercardioid mics tend to have a much narrower angle of sensitivity  (and hypercardioids even narrower) – making them even more focused than a “normal” cardioid mic. The off-axis sound will normally be more or less colored and damped – and, due to the narrow angle of focus, the area of damped sound is increased significantly. The unique DPA capsule technique however skips the colorization of the sound coming from the sides or the rear of the mic and just reduces the sensitivity to these angles and thereby offers perfect sound stages. The amount of damping depends on the exact specifications of the mic.

Due to their nature, supercardioid mics are often used on the live stage – both during concerts as well as spoken-word events, to capture the focused sound of an instrument or voice. The narrow angle of sensitivity helps to minimize the bleed from other sounds on a busy stage. One thing to note with supercardioid mics is the proximity effect, which causes an increase in bass response the closer the microphone is moved to the sound source. In addition, supercardioid mics are far more sensitive to wind, pop and handling noises than omni mics, so be sure to take precautions to guard against this.
