DPA 4098 CORE Supercardioid Tabletop and Ceiling Microphone
With very low noise and a high sensitivity, our ceiling and tabletop microphones offer the most clear, transparent, and natural sound available on the small footprint mic market. They ensure maximum speech intelligibility regardless of the acoustical environment. With a linear response, low distortion and an extremely large dynamic range, they sound great in any environment.
The Microphone Base is made specifically to work with the 4098 CORE Supercardioid Podium Microphone. It has an elegant yet unobtrusive design with a white, non-reflective surface and integrated shock mount. The audio cables are an integral part of the Microphone Base unit.
The Microphone Base fits most electrical back boxes and secures ease of installation. Furthermore, the great off-axis response and the physics of sound level vs distance, makes it possible to cover a small to mid-size room with only one or a few microphones. Read more about microphones in installed systems.
Features
- Outstanding audio quality
- Slim, elegant Scandinavian design
- Highly directional – very isolated
- High rejection of radio frequency interference
- Meets the needs of architects, AV consultants, system integrators and installing electricians
Description

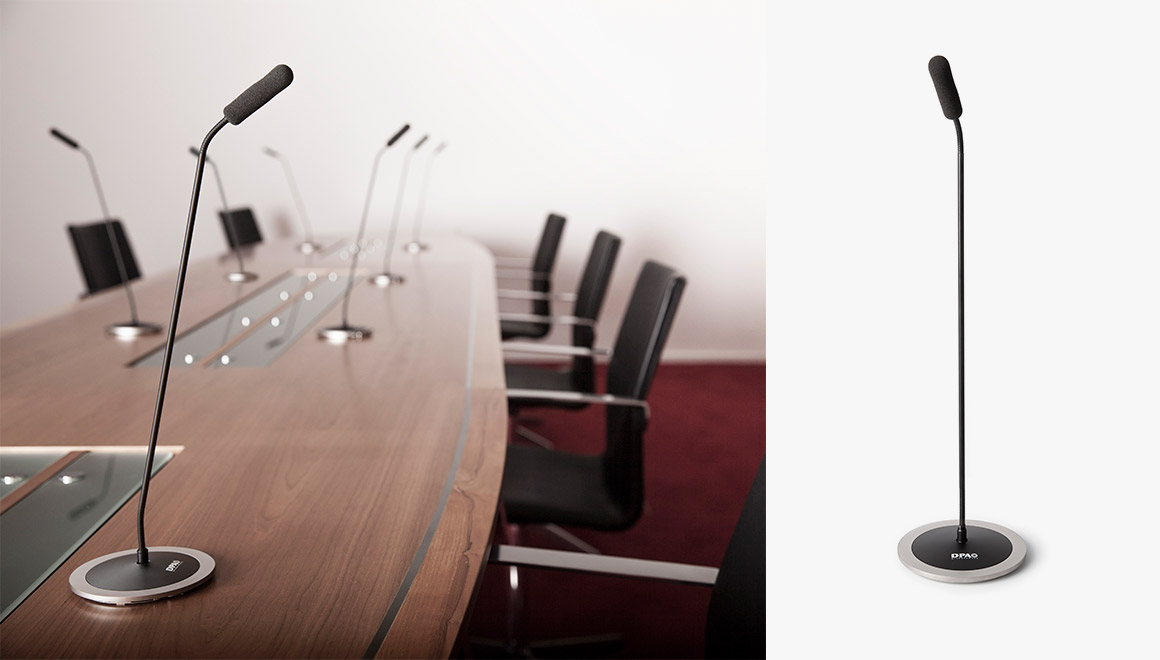

Supercardioid Tabletop Microphones
A complete, supercardioid tabletop microphone solution, which is ideal for either permanently affixing to or temporarily placed on a table in conference venues, meeting rooms and board rooms.
This solution can be scaled up as needed. In smaller rooms you might only need one microphone to capture the best sound. In larger settings, you can use multiple mics to ensure each area of the room is completely covered. The best audio quality is obtained in a one-to-one solution – one microphone position close to one speaker.
With very low noise and a high sensitivity, our supercardioid tabletop microphones offer the most clear, transparent, and natural sound available on the miniature mic market. They ensure maximum speech intelligibility regardless of the acoustical environment. With a linear response, low distortion and an extremely large dynamic range, they sound great in any environment.
The Microphone Base is made specifically to work with the 4098 CORE Supercardioid Podium Microphone. It has an elegant yet unobtrusive design with a black, non-reflective surface and integrated shock mount, which ensures that vibrations from people touching the table as well as reverberations from people walking in and out of the room will not affect the sound. The audio cables are an integral part of the Microphone Base unit.
The standard tabletop solution is equipped with a 43 cm (17 in), black gooseneck and comes in three standard kits to meet your exact needs:
- Tabletop Microphone, 43 cm (17 in), Black with MicroDot (unbalanced)
- Tabletop Microphone, 43 cm (17 in), Black Unterminated, P48 (balanced)
- Tabletop Microphone, 43 cm (17 in), Black with XLR (balanced)
Other gooseneck lengths can be ordered separately as well. We recommend tabletop solutions with goosenecks in 16cm (6 in), 28 cm (11 in) and 43 cm (17 in) versions. Longer goosenecks should be avoided.

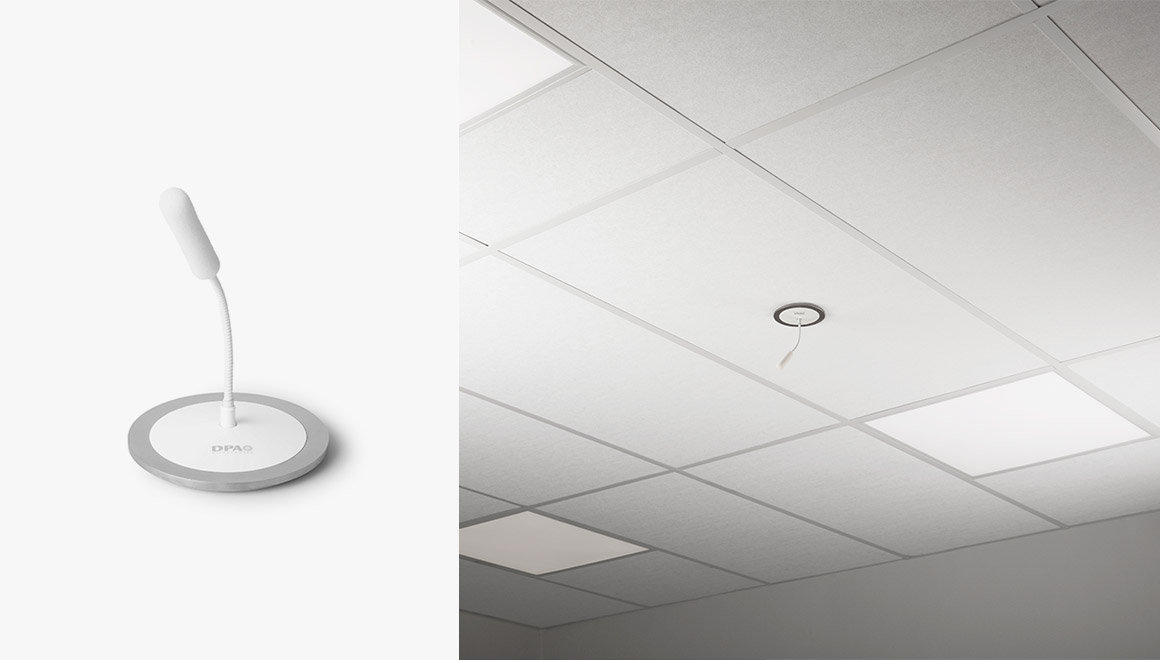

Supercardioid Ceiling Microphones
A complete, supercardioid ceiling microphone solution, which is ideal for mounting from the ceiling of conferences venues, meeting rooms, board rooms and other small to mid-sized spaces.
The standard ceiling solution is equipped with a 16 cm (6 in), white gooseneck and comes in three standard kits to meet your exact needs.
- Ceiling Microphone, 16 cm (6 in), White with MicroDot (unbalanced)

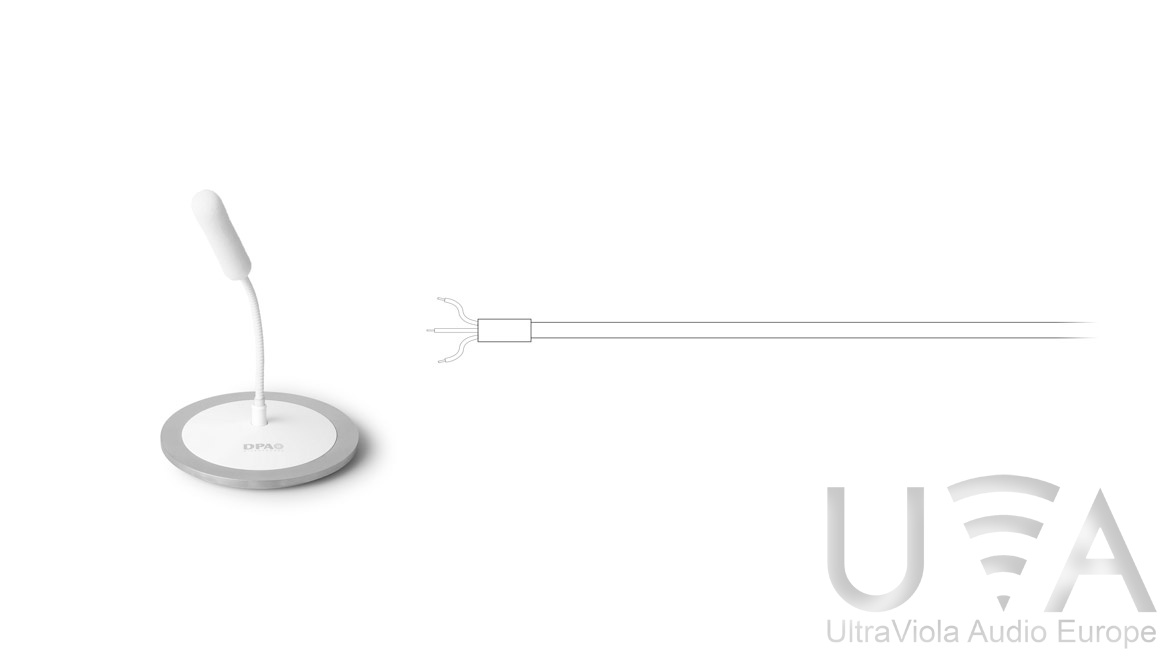

- Ceiling Microphone, 16 cm (6 in), White with Unterminated, P48 (balanced)

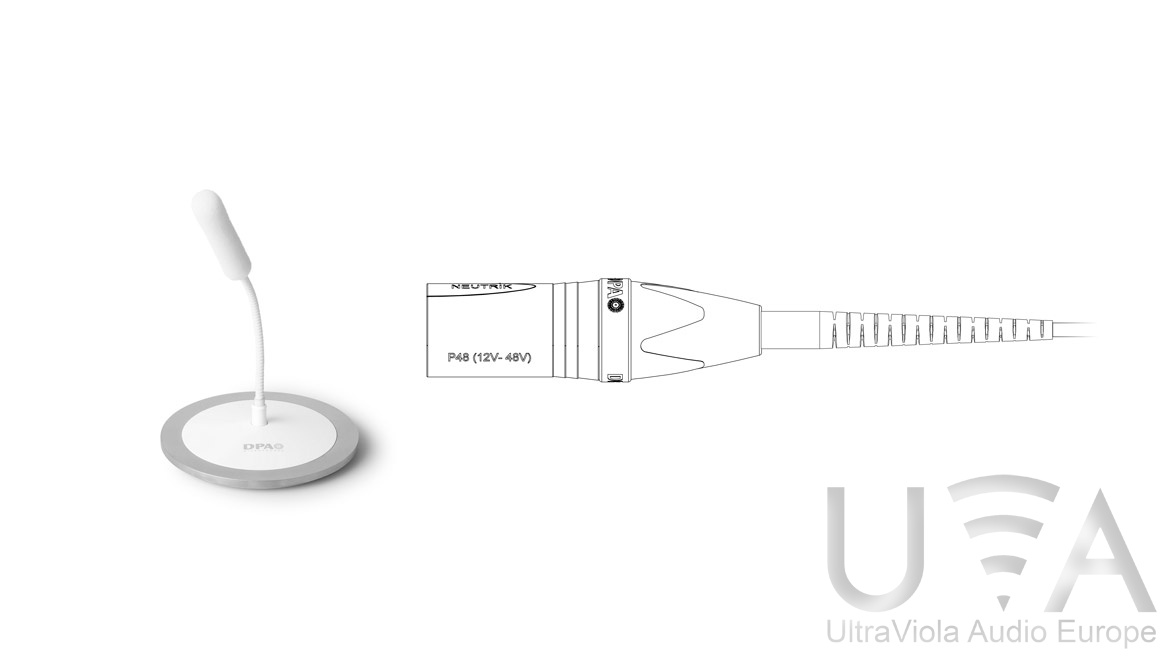

- Ceiling Microphone, 16 cm (6 in), White with XLR (balanced)
Other gooseneck lengths can be ordered separately as well. We recommend ceiling solutions with goosenecks in 16 cm (6 in), 28 cm (11 in) and 43cm (17 in) versions.
Tech Specs
|
Directional pattern
|
Supercardioid |
|
Principle of operation
|
Pressure gradient |
|
Cartridge type
|
Pre-polarized condenser |
|
Frequency response
|
20 Hz - 20 kHz |
|
Effective frequency range ±2 dB, at 20 cm (7.9 in)
|
MicroDot: 80 Hz - 15 kHz with 3 dB soft boost at 8-15 kHz
XLR-3M: 100 Hz - 15 kHz with 3 dB soft boost at 8-15 kHz and permanent 2nd order low-cut filter at 80 Hz |
|
Sensitivity, nominal, ±3 dB at 1 kHz
|
16 mV/Pa; -36 dB re. 1 V/Pa |
|
Equivalent noise level, A-weighted
|
Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A)) |
|
Equivalent noise level, ITU-R BS.468-4
|
Typ. 35 dB (max. 38 dB) |
|
Distortion, THD < 1% - Legacy
|
122 dB SPL RMS, 125 dB SPL peak |
Distortion, THD < 1% - CORE
|
130 dB SPL RMS, 133 dB SPL peak |
|
Dynamic range - Legacy
|
Typ. 102 dB |
|
Dynamic range - CORE
|
Typ. 110 dB |
|
Max. SPL, THD 10%
|
135 dB SPL peak |
|
Rated output impedance
|
From MicroDot: 30 - 40 Ω. From XLR connector or DAD6001-BC XLR Adapter: 100 Ω |
|
Minimum load impedance
|
2 kΩ |
|
Cable drive capability
|
MicroDot: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
XLR-3M: Up to 100 m (328 ft) |
|
Output balance principle
|
Signal balanced with XLR connector or DAD6001-BC XLR Adapter |
|
Common mode rejection ratio (CMRR)
|
> 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter |
|
Power supply (for full performance)
|
MicroDot: Min. 5 V to max. 10 V through DPA adapter for wireless systems or
P48 (Phantom Power) with DAD6001-BC XLR adapter
XLR-3M: P48 (Phantom Power) |
|
Current consumption
|
Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter |
|
Connector
|
MicroDot or XLR-3M |
|
Color
|
Black or white |
| Weight |
Microdot:
16 cm (6 in): 12 g (0.4 oz)
28 cm (11 in): 20 g (0.7 oz)
43 cm (17 in): 28 g (1.0 oz)
77 cm (30 in): 55 g (1.9 oz)
122 cm (48 in): 67 g (2.4 oz)
XLR-3M:
20 cm (8 in): 75 g (2.6 oz)
32 cm (13 in): 80 g (2.8 oz)
47 cm (18 in): 88 grams (3.1 oz)
77 cm (30 in): 115 grams (4.1 oz)
122 cm (48 in): 127 grams (4.5 oz) |
|
Microphone diameter
|
5.7 mm (0.22 in) |
|
Microphone length
|
Microdot: 16 cm (6 in), 28 cm (11 in), 43 cm (17 in), 77 cm (30 in), 122 cm (48 in)
XLR-3M: 20 cm (8 in), 32 cm (13 in), 47 cm (18 in), 77 cm (30 in), 122 cm (48 in). |
| Polarity |
+V at MicroDot pin for positive sound pressure (and pin 2 on XLR connector or DAD6001-BC XLR adapter) |
|
Temperature range
|
-40°C to 45°C (-40°F to 113°F) |
|
Relative humidity (RH)
|
|
Typical on and off-axis response of a DPA 4098
Typical directional characteristics of DPA 4098
