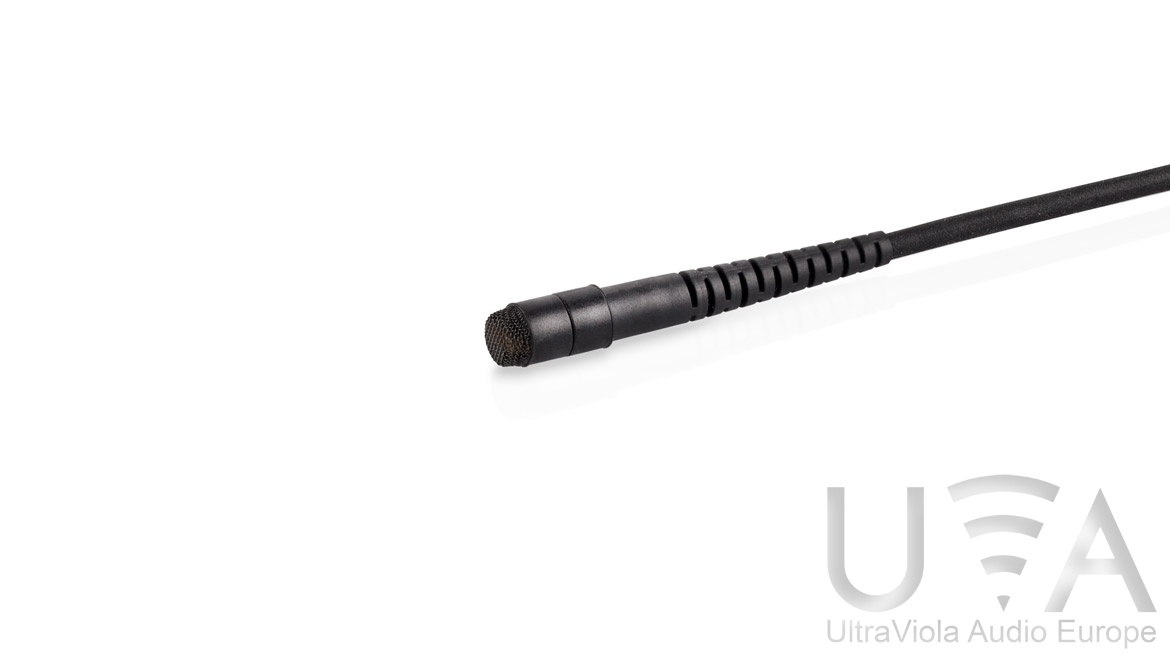

DPA 4661 CORE Heavy Duty Omnidirectional Microphone, Loud SPL
Acoustically identical to the 4060 , this mic is sensitivity adjusted to cope with higher sound pressure levels, which typically occurs when you are close to a sound source or when the microphone must record undisturbed content of high intensity.
The 4661 Heavy Duty can handle SPL 144 dB peak before clipping, making it one of the best miniatures for use on very loud and powerful instruments like snare drums, guitar, bass, speaker cabinets or other high-SPL sound sources. The heavy-duty cable relief and a thicker cable works well in live environments, which can sometimes be rough.

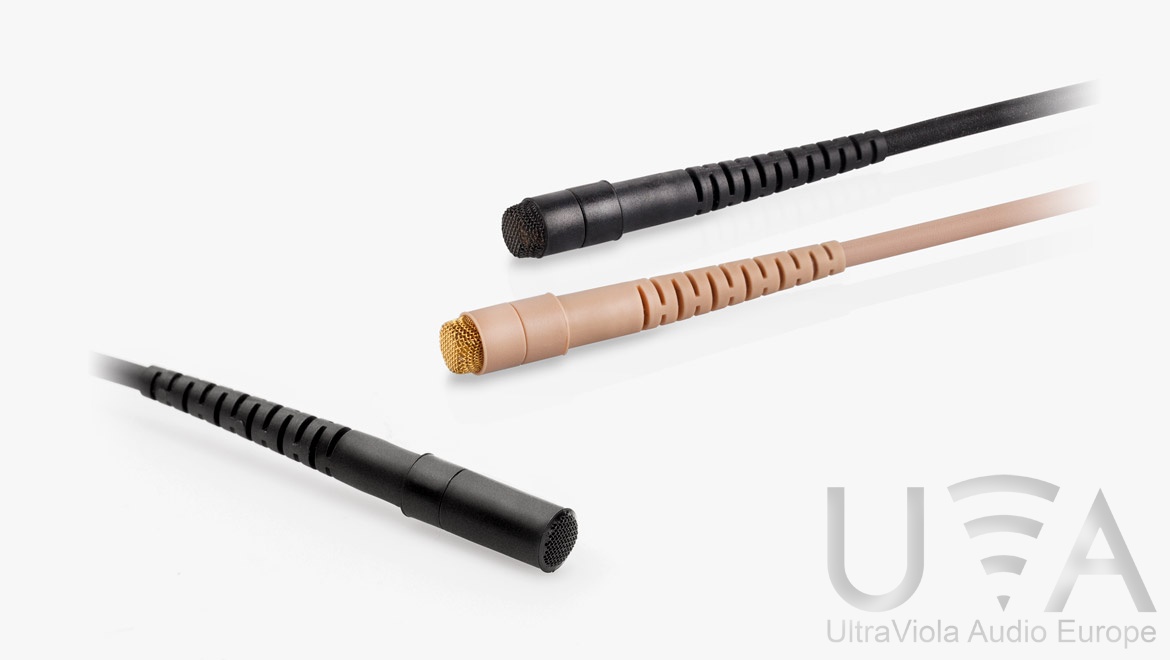

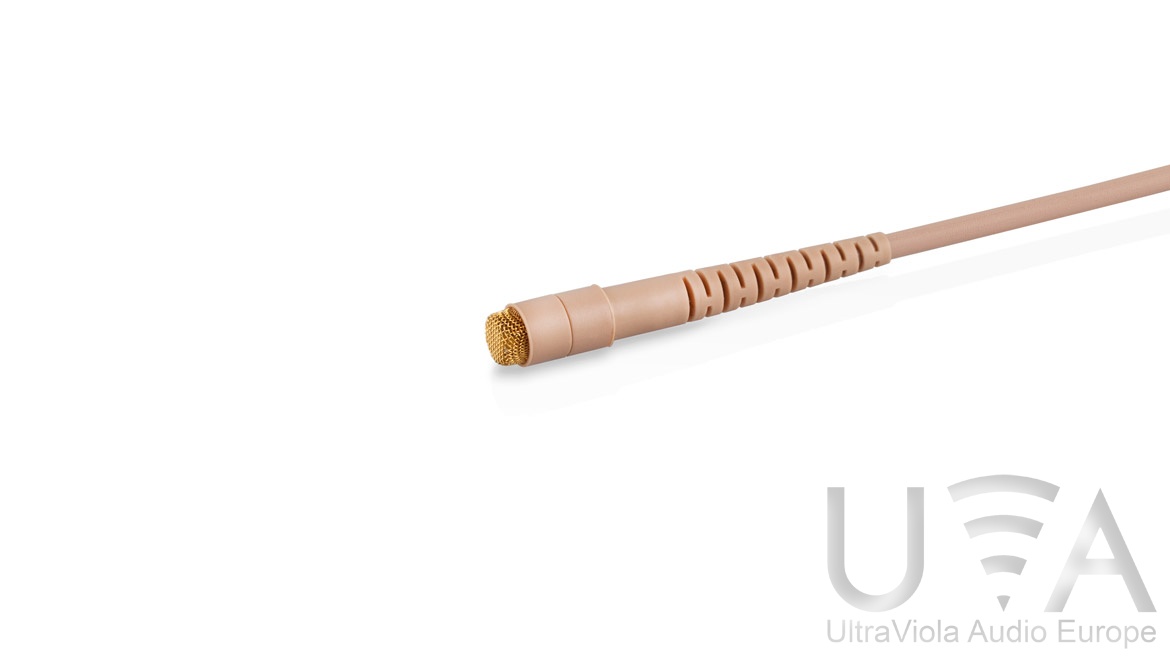

This mic is available in two colors: black and beige.
Features
- The most rugged and reliable version of DPA miniatures
- Stainless steel housing, heavy-duty strain relief and thick cable
- Exceptional audio quality
- Uniform, consistent sound between DPA mics
- Sturdy but small for flexible and easy concealment
- Modular adapter system fits most professional wireless systems
Description
Made for situations where you require maximum security and where the visual size of the mic is less important. The Heavy Duty Mic Series features a stainless steel housing, a heavy-duty cable relief and a thick 2.2 mm (0.09 in) cable. Our Heavy Duty microphones are a more robust version of the original lavalier mics they are based upon.
These microphones withstand the toughest of conditions. They are designed with an extra-robust, Kevlar-reinforced cable and a strain relief, which is built to withstand the constant twists, bends and pulls that are part of the everyday use in harsh environments. A 5.4 mm diameter pre-polarized condenser element with a contained within a vertical diaphragm called the Double Vent Protection System, which makes the mics extremely resistant to humidity and sweat.
The acoustic response of the these mics (both the normal and heavy duty version) can be modified by selecting the correct grid for the job. Two grids are supplied with each microphone (not the 4671). The Soft Boost Grid gives a 3 dB soft boost at 8-20 kHz while the High Boost Grid introduces a 10 dB soft boost around 12 kHz. Both of these grids are made of anodized stainless steel. They can be detached from the microphone and wiped cleaned of sweat, makeup, dust etc.
Academy-honored miniatures
In 2021, the Academy of Motion Picture Arts and Sciences’ Board of Governors bestowed a Technical Achievement Award to DPA miniature microphones. The award is directed specifically to Jens-Jørn Stokholm and Ole Moesmann for the innovative development of high-performance miniature and subminiature DPA lavalier microphones.
Tech Specs
|
Directional pattern
|
Omnidirectional |
|
Principle of operation
|
Pressure |
|
Cartridge type
|
Pre-polarized condenser |
|
Frequency response
|
20 Hz - 20 kHz
|
|
Effective frequency range ±2 dB
|
Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz |
|
Sensitivity, nominal, ±3 dB at 1 kHz
|
6 mV/Pa; -44 dB re. 1 V/Pa |
|
Equivalent noise level, A-weighted
|
Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A)) |
|
Equivalent noise level, ITU-R BS.468-4
|
Typ. 38 dB (max. 40 dB) |
|
Distortion, THD < 1% - Legacy
|
120 dB SPL RMS, 123 dB SPL peak |
|
Distortion, THD < 1% - CORE
|
134 dB SPL RMS, 137 dB SPL peak |
|
Dynamic range
|
Typ. 97 dB |
|
Max. SPL, THD 10%
|
144 dB SPL peak |
|
Rated output impedance
|
30 - 40 Ω |
|
Cable drive capability
|
Up to 300 m (984 ft) with DAD6001-BC XLR Adapter |
|
Output balance principle
|
Signal balanced with DAD6001-BC XLR Adapter |
|
Common mode rejection ratio (CMRR)
|
> 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter |
|
Power supply (for full performance)
|
For wireless systems: Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom Power). Will work from 12 V |
|
Current consumption
|
Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter |
|
Connector
|
MicroDot, 3-pin LEMO |
|
Color
|
Black or beige |
| Weight | 13 g (0.46 oz) incl. Cable and MicroDot connector |
|
Microphone diameter
|
5.4 mm (0.21 in) |
|
Microphone length
|
17.6 mm (0.7 in) |
|
Cable length
|
1.8 m (5.9 ft) |
|
Cable color
|
Black or beige |
|
Cable diameter
|
2.2 mm (0.09 in) |
|
Polarity
|
Positively increasing sound pressure produces positive going voltage on MicroDot pin |
|
Temperature range
|
-40°C to 45°C (-40°F to 113°F) |
|
Relative humidity (RH)
|
Up to 90%
|

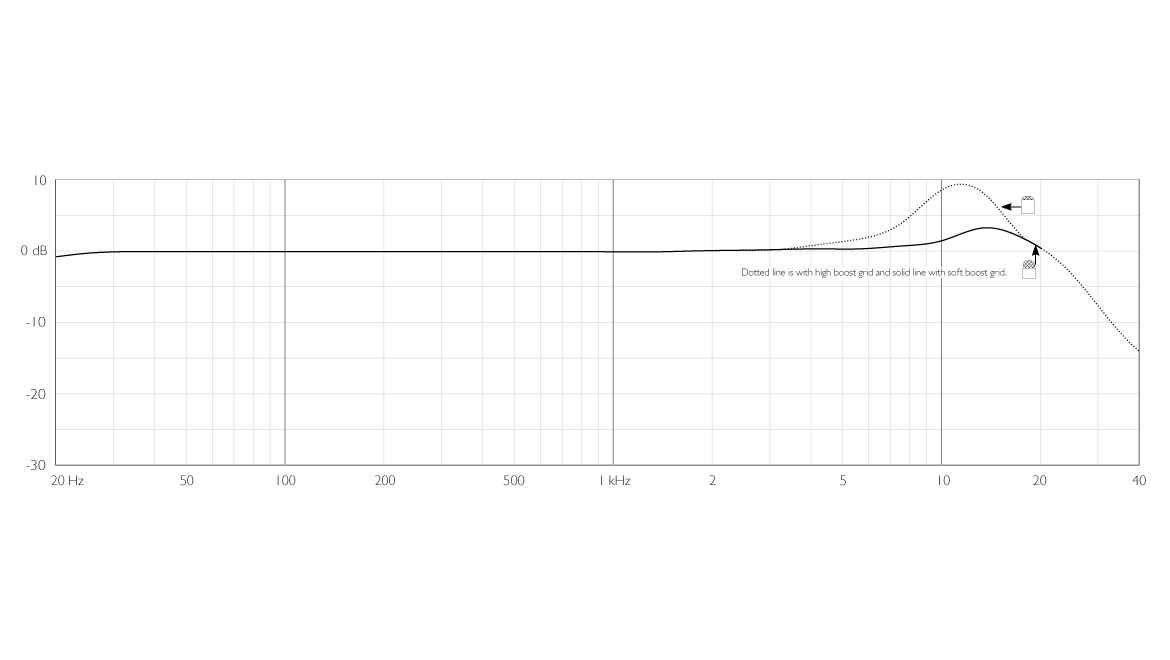

Typical on and off-axis response of a 4661 Heavy Duty
Typical directional characteristics of a 4661 Heavy Duty
