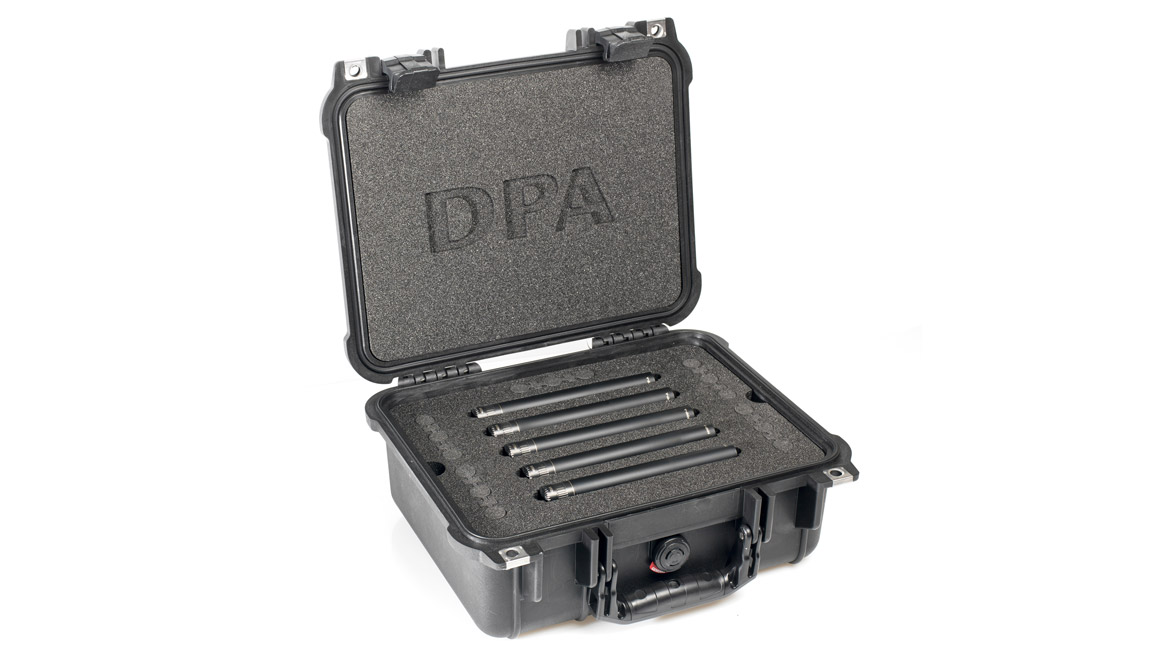

The 5015A Surround Microphone Kit from DPA Microphones includes five 4015A wide cardioid microphones matched within +/-1 dB in both frequency response and sensitivity. They can be used in orchestra and acoustic ensemble tracking where it is desirable to blend directional miking with room sound. DPA includes mic holders, grids, and windscreens for all mics. The included Peli foam-lined case can be used for transportation and storage.
Description
d:mension™ Surround Kits all have unique features for surround sound recording. There are three different types of microphone kits and you can read about the details for the individual kits below and their qualities and applications. The microphones can be used in any given configuration, but when used with the dedicated S5 Surround/Decca Tree Mount you’ll have endless of possibilities to capture the nature of the environment in which the mics are placed. The S5 Surround Mount can be used for both Decca as well as numerous Surround main array setups.
DPA Microphones offer three surround kits for use with the d:mension™ S5 Surround Mount:
The d:mension™ 5006A Surround Kit has five carefully factory-matched d:dicate™ 4006A Omnidirectional Microphones. Even though the standard tolerances on the d:dicate™ 4006A Omnidirectional Microphones are extremely low, the surround match is even closer − within ±0.5 dB.
The d:mension™ 5006-11A Surround Kit combines three d:dicate™ 4006A Omnidirectional Microphones and two d:dicate™ 4011A Cardioid Microphones, carefully factory-matched within ±1 dB to achieve full precision.
The d:mension™ 5015A Surround Kit has five carefully factory-matched d:dicate™ 4015 Wide Cardioid Microphones. Even though the standard tolerances on the d:dicate™ 4015 Wide Cardioid Microphones are extremely low, the surround match is even closer − within ±1 dB.
d:mension™ 5015A Surround Kit
This is a complete Surround Kit with five carefully factory-matched d:dicate™ 4015 Wide Cardioid Microphones. Even though the standard tolerances on the d:dicate™ 4015s are extremely low, the surround match is even closer.The specially selected d:dicate™ 4015 Wide Cardioid Microphones are matched within ±1 dB on both frequency response and sensitivity from mean of set.
Recording orchestras or other acoustic ensembles sometimes requires a compromise between blending in the room reverberation and a more precise localization. The natural response and dynamic range make this Surround Kit an obvious choice for precise tone quality and wide dynamic range. This is a great solution for AB, Decca Tree or surround main arrays like our Wide Cardioid Surround Array.
The foam design in the heavy-duty transportation box allows for fast and easy exchange of microphone / accessory inlays.
Tech Specs
Directional pattern: Wide cardioid
Principle of operation: Pressure gradient
Cartridge type: Pre-polarized condenser
Frequency range: 20 Hz - 20 kHz
Frequency range, ±2 dB, at 60 cm (23.6 in): 40 Hz - 20 kHz
Sensitivity, nominal, ±2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 25 dB (correct with the attenuator in 0 dB or -20 dB setting)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 76 dB(A)
Total harmonic distortion (THD): < 1% up to 139 dB SPL peak
Dynamic range: Typ. 121 dB
Max. SPL, peak before clipping: 159 dB
Switchable attenuator, filters etc.: 0 dB / -20 dB
Minimum load impedance: 2 kΩ
Cable drive capability: 100 m (328 ft)
Output balance principle: Impedance balancing with Active Drive
Common mode rejection ratio (CMRR): > 60 dB
Power supply (for full performance): 48 V Phantom power (± 4 V)
Current consumption: 2.8 mA
Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Microphone diameter: 19 mm (0.75 in)
Capsule diameter: 19 mm (0.75 in)
Microphone length: 170 mm (6.7 in)
Maximum output voltage, RMS: > 5 V
Polarity: +V at pin 2 for positive sound pressure
Temperature range: -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH): Up to 90%
Matching tolerance (frequency response and sensitivity): ±1 dB
Phase deviation for kit: < 10°
4015A Frequency response
Typical on and off-axis response of a d:dicate™ 4015A
Polar pattern
Typical directional characteristics of a d:dicate™ 4015A
Contents
- 5 x 4015A Wide Cardioid Microphone
- Peli Case
- 5 x Mic Holders
- 5 x Mic Grids
- 5 x Mic Windscreens
