The ST4006A Stereo Pair with 4006A Omnidirectional Microphones from DPA is a kit that consists of two 4006A Omnidirectional Microphones, two microphone holders, two grids, two windscreens, and a Peli carrying case. The microphones are matched within ±0.5 dB on both frequency response and sensitivity, providing accurate sonic reproduction from both microphones. The omnidirectional pattern can be used to obtain a variety of stereo miking techniques, including the AB technique.
Main Benefits
- Matched Pair of 4006A Mics
- Selected on Sensitivity of +/- 0.5 dB
- For AB Stereo Recording
- Includes 3 Pairs of Grids
- Includes 2 Mic Holders & Windscreens
- High sensitivity, low noise-floor, and linear frequency
- Peli case for transportation and protection
- Modularity – interchangable capsules and preamplifiers
- Up to 120 dB dynamic range
- RF rejection between >60 and >40 dB
- Linear frequency response
- High SPL
- Superior gain before feedback
Description
The wide and versatile d:dicate™ Microphone series is legendary in the high-end recording and film production industry. Delivering clean, accurate sound, the mics in this series are used by professionals, who understand sound and insist on only using the best.
4006 Omnidirectional Stereo Pair
Even though the standard tolerances on our d:dicate™ microphones are extremely low, a stereo match is even closer. These specially selected d:dicate™ 4006 Microphones are matched within ±0.5 dB on both frequency response and sensitivity. The pair comes in a heavy-duty Peli™ Case for safe transportation and easy access to the microphones and accessories.
The d:dicate™ 4006 Omnidirectional Microphone
The 4006 Omnidirectional Microphone offers total transparency in any recording situation. It picks up incredible detail and depth of sound. The definition of its high-frequency characteristics across a wide range of instruments is impressive. It offers natural sound, high sensitivity, low noise-floor and extremely linear frequency response from 10 to 20 kHz (±2 dB).
A selection of optional accessories can be purchased, including acoustic pressure equalizers, a nose cone and interchangeable protection grids. These accessories can acoustically transform the mic. By changing grids, it is possible to gain several unique frequency responses and directional characteristics from the mic. Furthermore, these accessories will not produce any phase shift, noise or distortion that would otherwise be introduced by an electrical filter.
ST4006A Stereo Pair
The d:dicate™ 4006A Omnidirectional Microphone is a flexible solution. Engineers, broadcasters and musicians alike can achieve clean, natural and precise sound reproduction. This mic is ideal for A-B stereo pairs for symphonic concert hall recordings. It also excels on vocals, for close-miking all types of instruments and as an outdoor interview microphone.
For reference stereo recording, there is no better choice than a d:dicate™ 4006A Omnidirectional Microphone. These omnidirectional condenser microphones are linear and true in character. They come as a hand-matched pair that offers the truest capture of stereo sound available.
Tech Specs
Directional pattern: Omnidirectional
Principle of operation: Pressure
Cartridge type: Pre-polarized condenser
Frequency range: 10 Hz - 20 kHz
Frequency range, ±2 dB: 10 Hz - 20 kHz
Sensitivity, nominal, ±2 dB at 250 Hz: 40 mV/Pa; -28 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 27 dB (max. 29 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 79 dB(A)
Total harmonic distortion (THD): < 1% up to 139 dB SPL peak
Dynamic range: Typ. 124 dB
Max. SPL, peak before clipping: 146 dB
Switchable attenuator, filters etc.: 0 dB / -20 dB
Minimum load impedance: 2 kΩ
Cable drive capability: 100 m (328 ft)
Output balance principle: Impedance balancing with Active Drive
Common mode rejection ratio (CMRR): > 60 dB
Power supply (for full performance): 48 V Phantom power (± 4 V)
Current consumption: 2.8 mA
Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Microphone diameter: 16 - 19 mm (0.6 - 0.75 in)
Capsule diameter: 16 mm (0.6 in)
Microphone length: 170 mm (6.7 in)
Maximum output voltage, RMS: 8.0 V
Polarity: +V at pin 2 for positive sound pressure
Temperature range: -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH): Up to 90 %
Matching tolerance (frequency response and sensitivity): ±0.5 dB
Phase deviation for kit: < 5°
4006A Frequency response with free field grid
Typical on and off-axis response of a d:dicate™ 4006A Omnidirectional Microphone

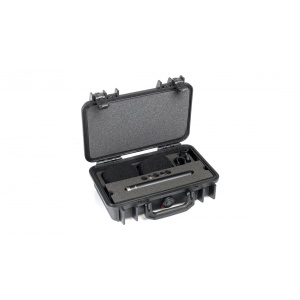

Contents
- 2 x 4006A Omnidirectional Microphone
- 2 x Microphone Holders
- 2 x Windscreens
- 3 x Grids
- Peli Case
