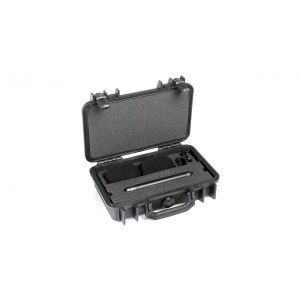

The ST4011A Stereo Pair with 4011A Cardioid Microphones from DPA is kit that includes two 4011A Microphones, two microphone holders, two windscreens, and a foam-lined Peli carrying case. The microphones are matched within ±1 dB on both frequency response and sensitivity, providing accurate sonic reproduction from both mics. The 4011A's are designed to be used for close placement applications, such as near the hammers of a piano, or as drum overheads.
Main Benefits
- Matched Pair of 4011A Microphones
- Selected on Sensitivity of +/- 1 dB
- High SPL Handling
- Use for Pianos or Drum Overheads
- Includes 2 Mic Holders & Windscreens
- Cardioid reference microphone
- Includes Peli case for transportation and protection
Description
The wide and versatile d:dicate™ Microphone series is legendary in the high-end recording and film production industry. Delivering clean, accurate sound, the mics in this series are used by professionals, who understand sound and insist on only using the best.
4011 Cardioid Stereo Pair
Even though the standard tolerances on our d:dicate™ microphones are extremely low, a stereo match is even closer. These specially selected d:dicate™ 4011A Cardioid Microphones are matched within ±1 dB on both frequency response and sensitivity. The pair comes in a heavy-duty Peli™ Case for safe transportation and easy access to the microphones and accessories.
The d:dicate™ 4011 Cardioid Microphone
The principal appeal of the 4011 Cardioid Microphone is its directional quality and attention to detail. This mic makes everything sounds like the original. The first-order cardioid pickup pattern provides superb separation between sound sources.
It is equally suitable for close-up work on acoustic guitar, grand piano, overheads, percussion, wind instruments and vocals as it is for spot-miking symphonies. It can handle incredibly high sound levels and even includes a 20 dB pad switch in the center of the XLR connector to attenuate the output of the microphone.
A flat on-axis frequency response and excellent phase response deliver a totally faithful reproduction of the original sound. The off-axis response is similarly smooth so that any leakage is an accurate reflection of the original, though attenuated according to the true first-order cardioid pickup pattern.
ST4011A Stereo Pair
This condenser microphone is renowned in recording studios and live applications around the world as an exceptional mic. State-of-the-art components have been carefully selected to provide optimal neutrality, accuracy and extremely low distortion.
Tech Specs
Directional pattern: Cardioid
Principle of operation: Pressure gradient
Cartridge type: Pre-polarized condenser
Frequency range: 20 Hz - 20 kHz
Frequency range, ±2 dB, at 30 cm (11.8 in): 40 Hz - 20 kHz
Sensitivity, nominal, ±2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 25 dB (correct with the attenuator in 0 dB or -20 dB setting)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 76 dB(A)
Total harmonic distortion (THD): < 1% up to 139 dB SPL peak
Dynamic range: Typ. 121 dB
Max. SPL, peak before clipping: 159 dB
Switchable attenuator, filters etc.: 0 dB / -20 dB
Minimum load impedance: 2 kΩ
Cable drive capability: 100 m (328 ft)
Output balance principle: Impedance balancing with Active Drive
Common mode rejection ratio (CMRR): > 60 dB
Power supply (for full performance): 48 V Phantom power (± 4 V)
Current consumption: 2.8 mA
Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Microphone diameter: 19 mm (0.75 in)
Capsule diameter: 19 mm (0.75 in)
Microphone length: 170 mm (6.7 in)
Maximum output voltage, RMS: > 5 V
Polarity: +V at pin 2 for positive sound pressure
Temperature range: -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH): Up to 90%
Matching tolerance (frequency response and sensitivity): ±1 dB
Phase deviation for kit: < 10°
4011A Frequency response
Typical on and off-axis response of a d:dicate™ 4011A Cardioid Microphone
Contents
- 2 x 4011A Cardioid Microphone
- 2 x Microphone Holders
- 2 x Windscreens
- Peli Case
