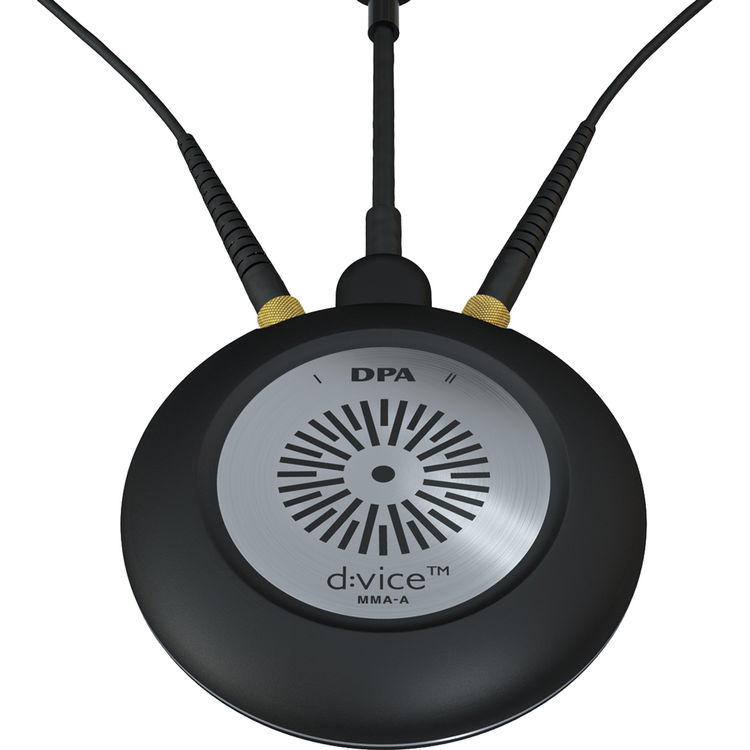

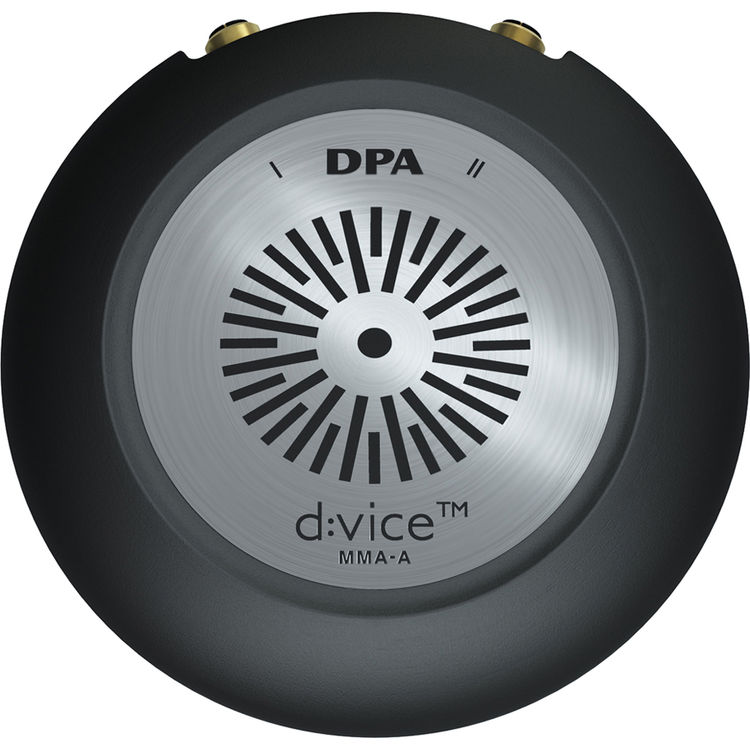

The d:vice from DPA Microphones is a mobile A/D audio interface developed for content makers who need to capture high-fidelity audio with their smartphones or tablets, when on the go. The thin, portable design lets you discreetly wear the unit in your pocket, ideal when recording interviews, music or ambience for video, live broadcast, social media, and more.
Main Benefits
- Live Broadcast, Social Media, Recording
- For Use with Smartphones & Tablets
- Works with Facebook Live, Skype & More
- 2 Inputs / 2 Outputs
- High-Quality Mic Preamps & A/D Converter
- 2 x MicroDot Mic Inputs, Phantom Power
- Control Settings with DPA App
- Thin, Discreet, Portable Design - Pocket-sized
- Lightning / USB
- Compatible with iOS, Mac OS X, Windows
- Dual-channel audio capture
- Compatible with a range of recording / broadcasting apps
- Works with all DPA mics with a MicroDot connector
Description
The d:vice features two high-quality microphone preamps with MicroDot connectors, which both provide phantom power to the company's lavaliers, shotguns and modular mic capsules, as well as to third-party mics equipped with MicroDot cables.
The free DPA App allows you to set parameters before using the d:vice with a third-party app such as Skype, Facebook Live, and others. Choose between mono, dual-mono or stereo output modes, and independently control the level of each mic. The App also lets you store four presets, allowing for quick setup to suit specific tasks.
The unit connects to all iOS devices using the Lightning connector or to Windows and Mac computers via the included USB Micro-B to USB Type-A cable.
Tech Specs
MMA-A
Compatible with: Mac / PC / iOS
Requirements: iOS version: 10 or later. Connection / Power: Lightning & USB 2.0
Made for: iPhone 7 Plus, iPhone 7, iPhone 6s, iPhone 6, iPhone 5, iPad Pro (12.9-inch), iPad Air, iPad Air 2, iPad mini 4, iPod touch (6th gen).
Noise floor: -114 dBFS, A-weighted
Frequency range: 20-22 kHz ±0.2 dB (Fs = 48 kHz). 20-40 kHz ±0.2 dB (Fs = 96 kHz)
Total harmonic distortion (THD): THD < -100 dB, 0.001% @ 1 kHz @ -10 dBFs
Dynamic range: Typ. 114 dB
Full Scale Output: 1 Vrms @ 0 dB Gain
Supported sample rates: 44.1, 48 (default), 88.2, 96 kHz. Sample rates can be set by 3rd-party app
Filter (low cut / high pass): 2. Order @ 80 Hz, individual per channel
Temperature range: 0°C to 45°C (32°F to 113°F)
