MD-4: 4-Input, 4-Output Analog-to-Dante Interface
4-input, 4-output analog-to-Dante interface with headphone monitor. Connects four microphone or level-level inputs to a Dante audio network. Additionally, four Dante signals can output to balanced analog. Inputs or outputs can be routed to headphones for signal monitoring and metering. Includes IEC C19 AC power cable.
Main Benefits

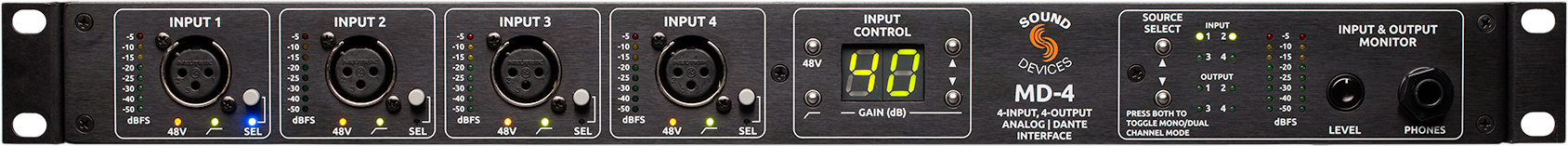

- Four front-panel, balanced, analog, mic or line level inputs with 48 V phantom power and high-pass filter
- Inputs accept mic or line level, and appear as Dante sends (transmit)
- Eight-segment LED meter for each input

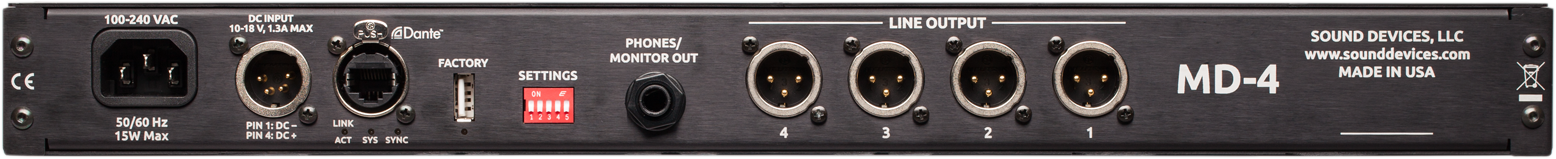

- Four Dante signals (receiver) to four rear-panel XLR balanced-analog outputs
- Headphone monitoring with LED level meters, with front and rear panel headphone output
- Built-in AC power supply (100-240 V, 50/60 Hz on IEC C14) or 11-18 VDC powering (4-pin XLR)
- Durable 1-U rackmount chassis
Description
Sound Devices Unveils The MD-4
The MD-4 analog-to-Dante audio interface is the perfect tool to add four mic/line inputs and four analog outputs to the 970 or other Dante-based audio network.
REEDSBURG, WI, APRIL 21, 2017 – Sound Devices introduces the MD-4 Analog-to-Dante Audio Interface for NAB Show 2017. The MD-4 is a simple, high-performance interface that connects analog audio to Dante™ audio networks. It offers four high-gain microphone or line-level inputs and four balanced analog outputs. Inputs or outputs can be routed to either headphone jack (front or back panel) for signal monitoring, with LED metering.
“Audinate’s Dante has become a popular interconnection for both program audio as well as communication channels. Our 970, a 64-track audio recorder, and our PIX 270i production video recorder offer Dante connectivity. The MD-4 is the perfect companion to those rack-mount recorders or any Dante-enabled system,” said Jon Tatooles, co-founder of Sound Devices, LLC.
The MD-4 inputs have a 70 dB gain range and include selectable phantom power and high-pass filter. Each input has an LED level meter adjacent to its front panel input. Outputs are on back-panel-mounted XLR connectors.
The 1U rack-mountable MD-4 can be powered from either 100-240 VAC or 10-18 VDC on four-pin XLR. This powering flexibility allows the MD-4 to be equally at home in both fixed and mobile applications.
Audinate’s Dante audio-over-Ethernet has emerged as a new standard for high-performance digital audio networks. It offers numerous benefits to users in live production, systems installation, and broadcast. Being fully Dante compatible, the MD-4 takes advantage of the low system latency and scalable topology of Dante.
Tech Specs
- Network Audio Technology
- Type: Dante audio-over-Ethernet
- Bit Depth: up to 24
- Sampling Rate: 48 kHz
- Number of Transmitter (Output) Channels: 4
- Number of Receiver (Input) Channels: 4
- Dante Audio Flows: 4; 2 transmitter, 2 receiver
- Network Interface
- Type: twisted-pair Ethernet
- Data Rate: 100 Mbs (10 Mbs not supported; 1000 Mbs “GigE” Ethernet not supported unless falls back to 100 Mbs)
- Mic/Line Inputs: 4
- Compatibility: dynamic or phantom-powered mics; line-level sources
- Type: 3-pin female XLR, analog, electronically balanced, capacitor coupled
- Impedance: 4 k ohms, nominal
- Gain: 0 dB (line), 10 dB, 19-70 dB in 3 dB steps (total 20 choices)
- Maximum Level: +18, +20, or +24 dBu, configurable, 0 dB gain selected, results in Dante digital output level of 0 dBFS
- EIN: –123 dBu, 22 kHz bandwidth, 70 dB gain, 150 ohm source resistance
- Dynamic Range: >116 dB, 0 dB gain, A-weighted
- Distortion (THD+N): more than 0.001% (–101 dB) at –1 dBFS, 40 dB gain, 22 kHz bandwidth
- Frequency Response: +0.0/–0.5 dB, 22 Hz to 22 kHz, HPF off
- High-Pass Filter (HPF): –6 dB at 75 Hz, 18 dB per octave, on/off selectable per channel
- Phantom Power: P48 per IEC 61938:2013 standard, +46 volts DC nominal, on/off selectable per channel
- Meters: 4, one 8-segment LED per input
- Status LEDs: 3, P48, HPF, input channel selected
- Line Outputs: 4
- Type: analog, electronically balanced, capacitor coupled, intended to drive balanced or unbalanced loads of 2k ohms or greater, 3-pin XLR
- Source Impedance: 200 ohms
- Nominal Level: +4, 0, or –2 dBu, selectable, reference –20 dBFS
- Maximum Level: +18, +20, or +24 dBu, configurable, with 0 dBFS on Dante input
- Dynamic Range: >119 dB, A-weighted
- Distortion (THD+N): 0.0012% (–99 dB), measured at –1 dBFS, 22 kHz bandwidth
- Frequency Response: ±0.1 dB, 20 Hz to 20 kHz
- Audio Monitor:
- Source: mic/line inputs or line outputs, selectable as monaural or stereo
- Meters: 2, 8-segment LED
- Headphone/Monitor Output:
- Type: stereo (dual-channel), when jack on front panel is used jack on back panel automatically disconnects
- Compatibility: intended for connection to stereo headphones with nominal impedance of 100 ohms or greater
- Maximum Output Voltage: 4.9 volts RMS, 1 kHz, 150 ohm load
- Frequency Response: +0/–1.4 dB, 20 Hz to 20 kHz
- Distortion (THD+N): 0.005%
- Dynamic Range: >100 dB
- Connectors:
- Ethernet: Neutrik etherCON RJ45
- Headphone Outputs: 3-conductor ¼-inch jack
- Factory: USB type A receptacle used only for application firmware updates
- AC Mains: 3-blade, IEC 320 C14-compatible (mates with IEC 320 C13)
- DC Input: 4-pin male XLR
- Power Source:
- AC Mains: 100 to 240 volts, +10/–15%, 50/60 Hz, 15 watt maximum
- DC Input: 10-18 volts DC, 0.x A maximum @ 12 volts; 1.1 A maximum @ 10 volts; current draw when AC present is less than 100 uA
- Chassis Dimensions:
- 19.0 inches wide (48.3 cm)
- 1.72 inches high (4.4 cm)
- 8.4 inches deep (21.3 cm)
- 1U in a standard 19-inch rack
- Stereo Out
- 2ch unbalanced stereo 3.5 mm for use with > 6k ohm inputs
- Max Stereo Out Level: '+7.8dBu 100Kohm load
- Headphones Out: 3.5 mm Stereo
- Weight:
- 3.5 pounds (1.6 kg)
Contents
| Quantity |
Item |
| 1 |
MD-4 |
| 1 |
Power cord |
| 1 |
User guide |
