Product Code: 086021
This version of the Modular Windshield 9 Kit uses more a traditional hoop and band suspension to mount compact condenser mics in MS Stereo configuration. Please note there is no Stereo Connbox supplied.
Main Benefits:
- Flexible, complete windshield and suspension package, which provides varying levels of windshielding for numerous microphone configurations
- The iconic Windshield Kit is the industry standard, and leads the way in windshielding and suspension technology
Description

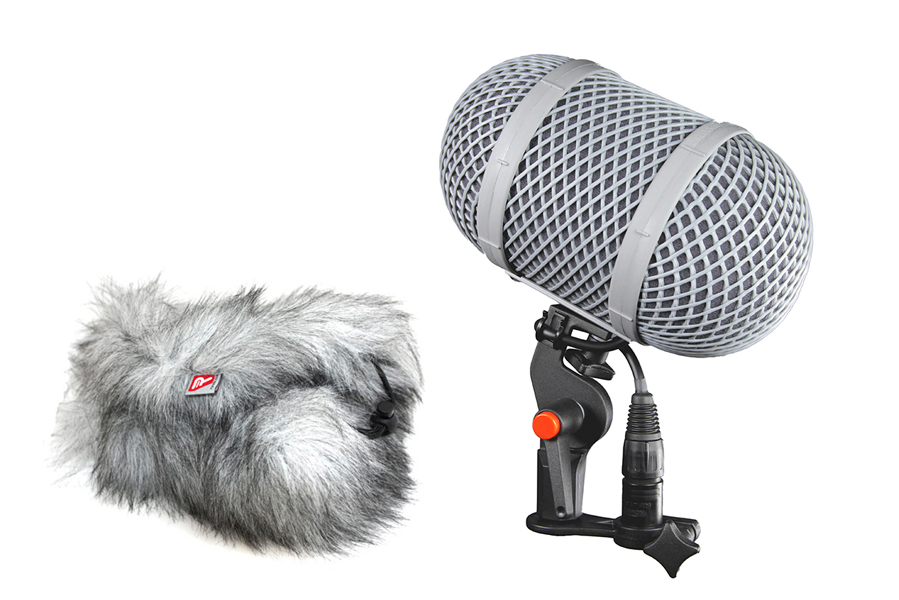

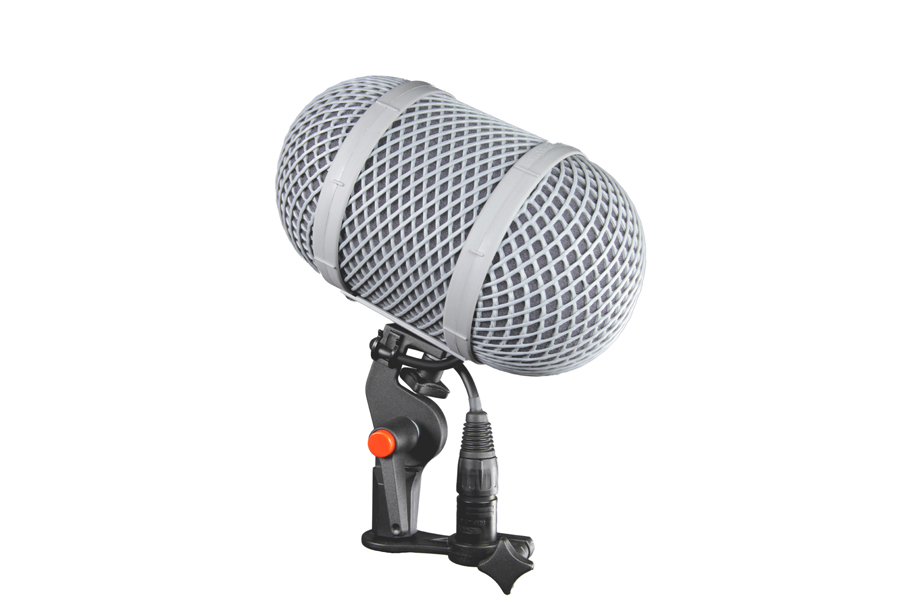

The Modular Windshield WS 9 Kit offers a unique and highly effective solution for compact condenser microphones requiring wind protection and maximum shock isolation. It completely surrounds the compact MS pair, sliding onto the XX-Small Suspension to provide up to 25dB of wind noise attenuation. The wind attenuation performance is equivalent to a Rycote full sized Windshield yet in a much smaller and lighter package – only 170mm x 105mm including end caps.

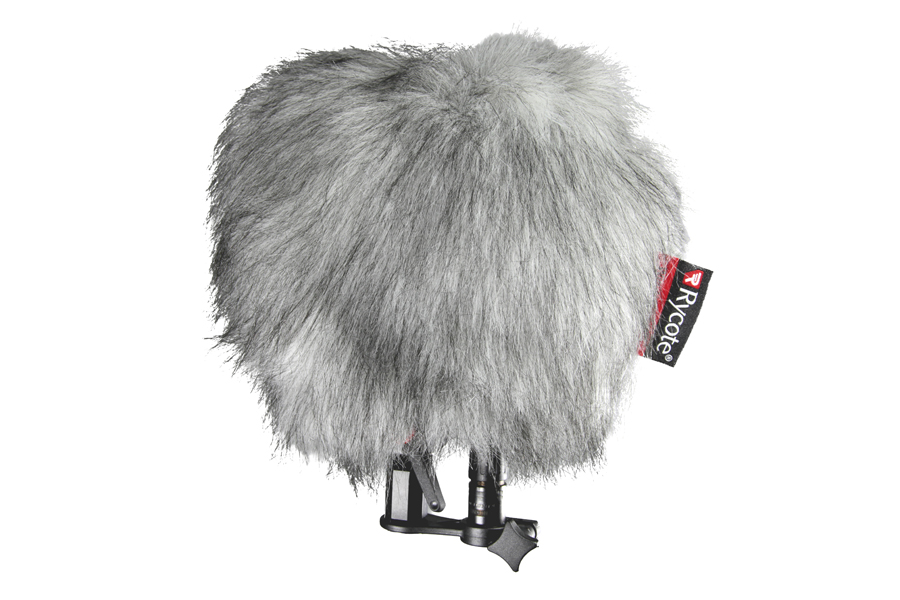

High quality synthetic fur-cover Windjammer for WS 9 provides the highest possible protection against extreme wind-noise. When using a Windjammer fitted over a Windshield up to 35 dB of windnoise attenuation can be achieved, producing excellent exterior audio recordings.
Tech Specs
Windshield Body Length: 70mm
Total Windshield Length: 170 mm (includes the End Caps)
Height: Windshield 100mm
Net Weight:
Gross Weight:
Windjammer Fur Length: 40mm
Windjammer Fur Colour: Grey
Microphone Connector: No Connbox
Max Wind-noise Attenuation: 35 dB
The windshield body length is calculated by adding microphone length + XLR (5 cm or 2”) of the LONGEST microphone, in the M/S pair.
The suspension is determined by the diameter of the microphones. Any combination of the following can be made: 19 mm, 21 mm, 25 mm Round & 25 mm Square (for example for the MKH 416/MKH 30 the clips are 19/25Rd & 19/25Sq)
Contents
|
|

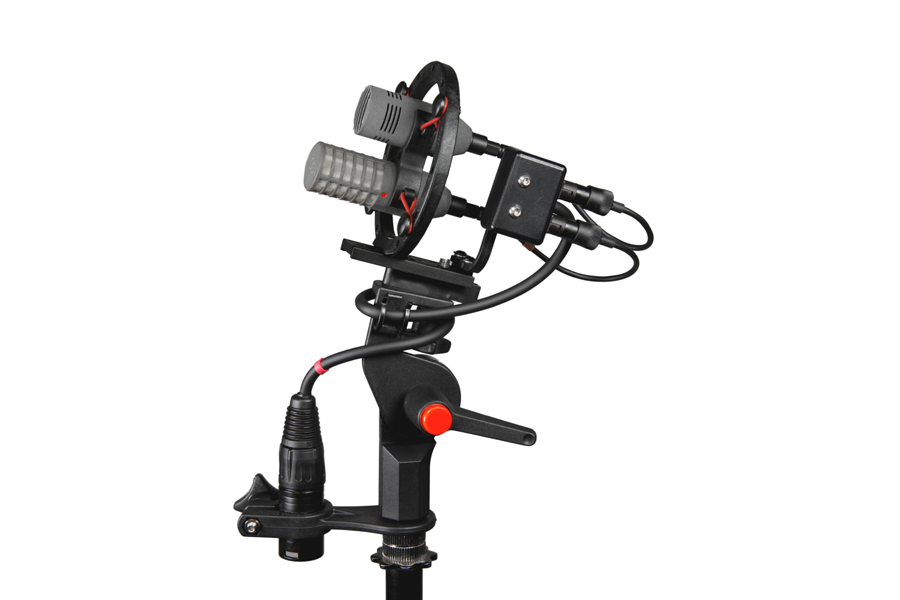

1 x Suspension XX-Small MS Mini
Product Code: 040107
Suitable for an MS pair of Schoeps CCM in a WS9 |
|
|
1 x Windjammer WJ 9
Product Code: 021509
Suitable for use with the Windshield 9 |
|
|
1 x Windshield WS 9
Product Code: 010605
Suitable for compact condenser mics
|
|
|
1 x XLR Holder MK II
Product Code: 048493
The XLR Holder Mk II fits between any 3/8" male threaded boom pole or mic stand and any 3/8" female microphone shock-mount or windshield system
|
|
|
1 x Boom Poles Adaptor
Product Code: 048402
|
|
|
1 x Pistol Grip Handle with Lever
Product Code: 048401
|
1 x Single Lyre 62 (19/25)
1 x Single Lyre 62(8)
1 x Single Lyre 62(19/25) (as spare)
Brush
Hex head Key
