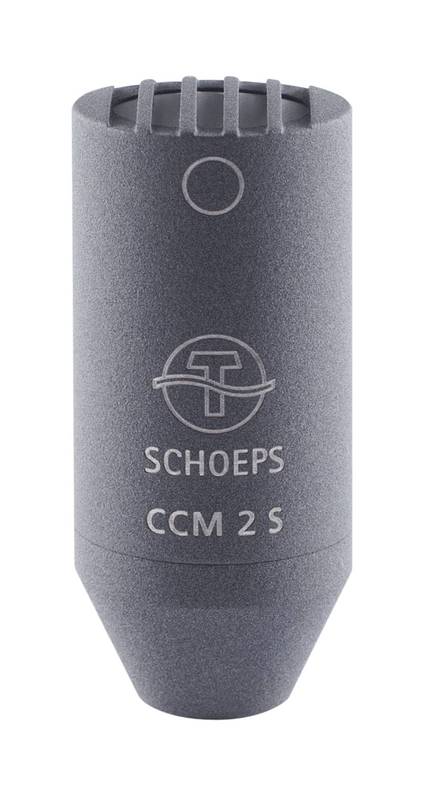

Schoeps CCM 2S U Compact Microphone, omni, permanently attached cable, incl. SGC and premium case
The MK 2S exhibits a slight high-frequency emphasis for frontal sound incidence, with only a slight rolloff of high frequencies off axis and in the reverberant sound field.
The frequency response characteristic of the CCM 2S falls between that of the CCM 2 and the CCM 3, making this microphone suitable for a wide range of applications.
- omnidirectional pattern
- slight high-frequency rise to compensate for losses at moderate recording distances
- for a very wide range of recording applications
- often preferred for “spaced microphone” stereo pickup and “Decca Tree” arrangements
Although our normal production tolerances are very close, we can deliver specially matched compact microphone pairs for a small extra charge.
Application
The CCM 2S has proven particularly useful in two- and three-microphone stereo arrays, where its placement near the reverberation radius of the sound field presents a sonically balanced pickup favored by many recording engineers. This model has become our most popular pressure transducer.
For spaced microphone (“A/B”) stereo recording and especially the “Decca Tree” method, KA 40 accessory spheres are recommended.
Specifications
| All CCMs |
| Current consumption with 12 V |
8 mA |
| Current consumption with 48 V |
4 mA |
| Impedance |
90 Ω |
| Minimum recommended load impedance |
600 Ω |
| Low-cut frequency |
20 Hz |
| Length (L version) |
without connector: 46 – 58 mm |
| Length (U version) |
46 – 58 mm |
| Diameter |
20 mm |
| Weight (U-version) |
33 g |
| Weight (L-version) |
43 g |
| Surface finish |
matte gray |
For further specifications see those of the corresponding capsule:
| MK 2S |
| Frequency range |
20 Hz - 20 kHz |
| Sensitivity |
12 mV/Pa |
| Equivalent noise level (A-weighted) |
12 dB-A |
| Equivalent noise level (CCIR) |
24 dB |
| Signal-to-noise ratio (A-weighted) |
82 dB-A |
| Maximum sound pressure level at 0.5% THD |
132 dB-SPL |
Graphics

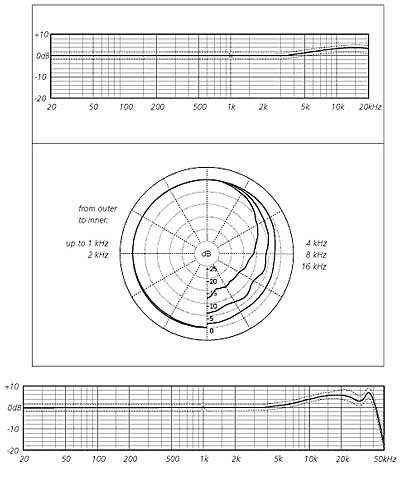

Top: frequency response and polar diagram MK 2S + CMC 6 and CCM 2S
Bottom: frequency response MK 2S + CMC 6 xt
