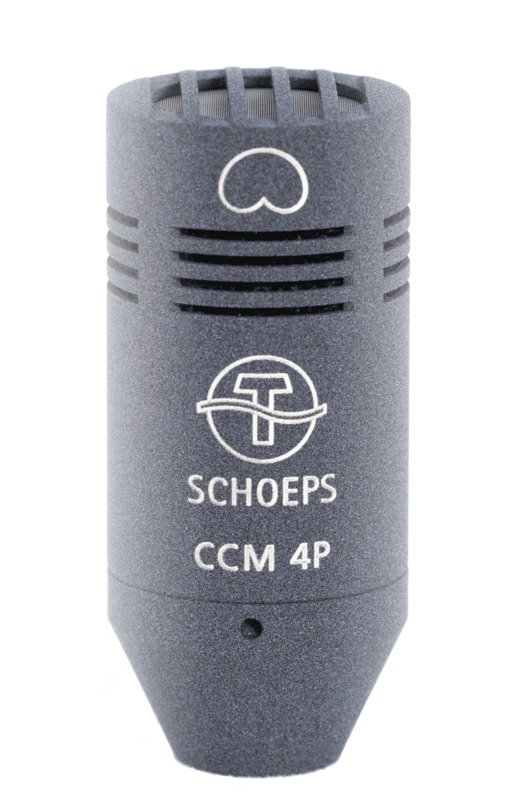

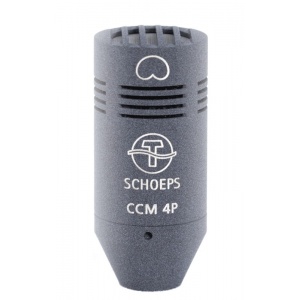

Schoeps CCM 4P U Compact Microphone for close pickup, cardioid, permanently attached cable, incl. SGC and premium case

Schoeps CCM 4P U Compact Microphone for close pickup, cardioid, permanently attached cable, incl. SGC and premium case

This type of microphone has a low-frequency rolloff to compensate for the low-frequency boost which occurs when close-miking.

• cardioid pattern
• for pickup of speech or music at close range (under 20 cm)
• moderate attenuation of low frequencies

• Audio Samples
• Specifications
• Downloads

Audio Samples

SuperCMIT
Polarflex
Close Pickup Capsules

Specifications

All CCMs
Current consumption with 12 V	8 mA
Current consumption with 48 V	4 mA
Impedance	90 Ω
Minimum recommended load impedance	600 Ω
Low-cut frequency	20 Hz
Length (L version)	without connector: 46 – 58 mm
Length (U version)	46 – 58 mm
Diameter	20 mm
Weight (U-version)	33 g
Weight (L-version)	43 g
Surface finish	matte gray

For further specifications see those of the corresponding capsule:

MK 4P
Frequency range	80 Hz - 20 kHz

Downloads

User guide
CCM _ Compact Condenser Microphones		Download (pdf, 4.2 MByte)
