MICROPHONE AMPLIFIER
The CMC 1 L is identical to the CMC 1 U, but instead of a built-in XLR connector, it has LEMO

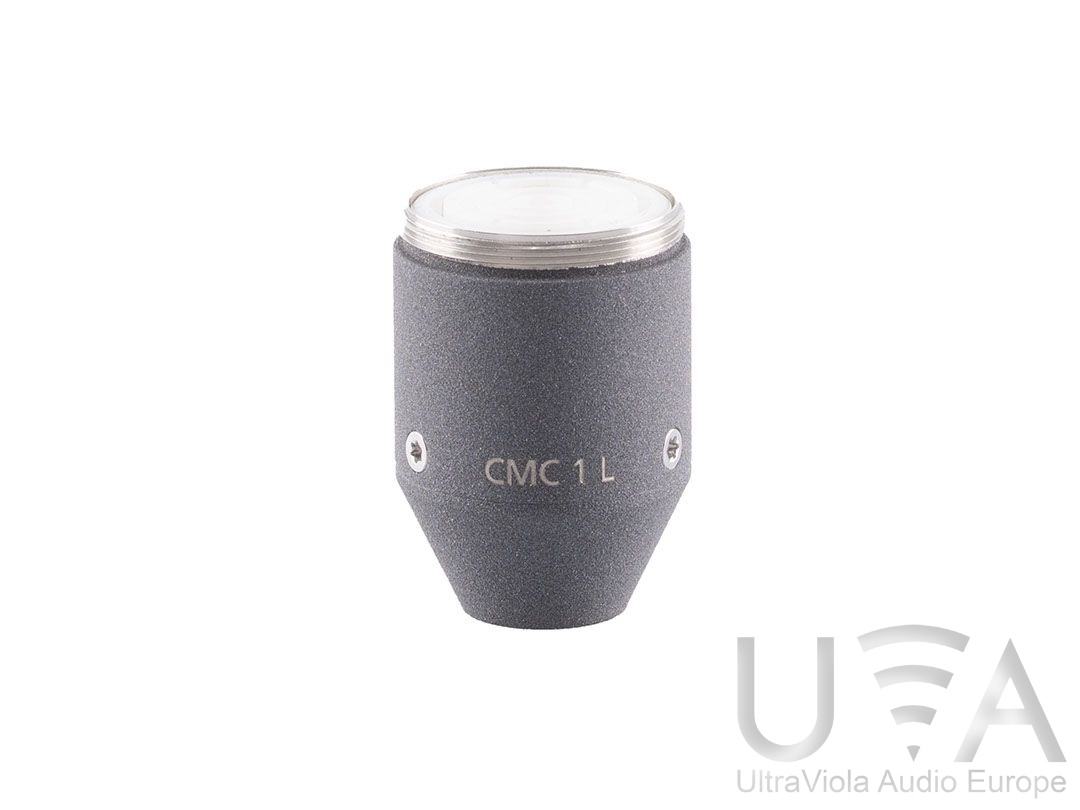

The CMC 1 L is our new, small Colette microphone amplifier, about one-third the length and 53% lighter than the CMC 6. It is compatible with all components of the Colette system and can be used in place of the CMC 6 without compromise, for all applications in which the size and weight of the microphone play a role.
Main Benefits

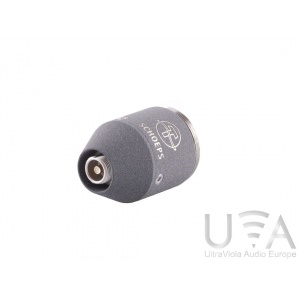

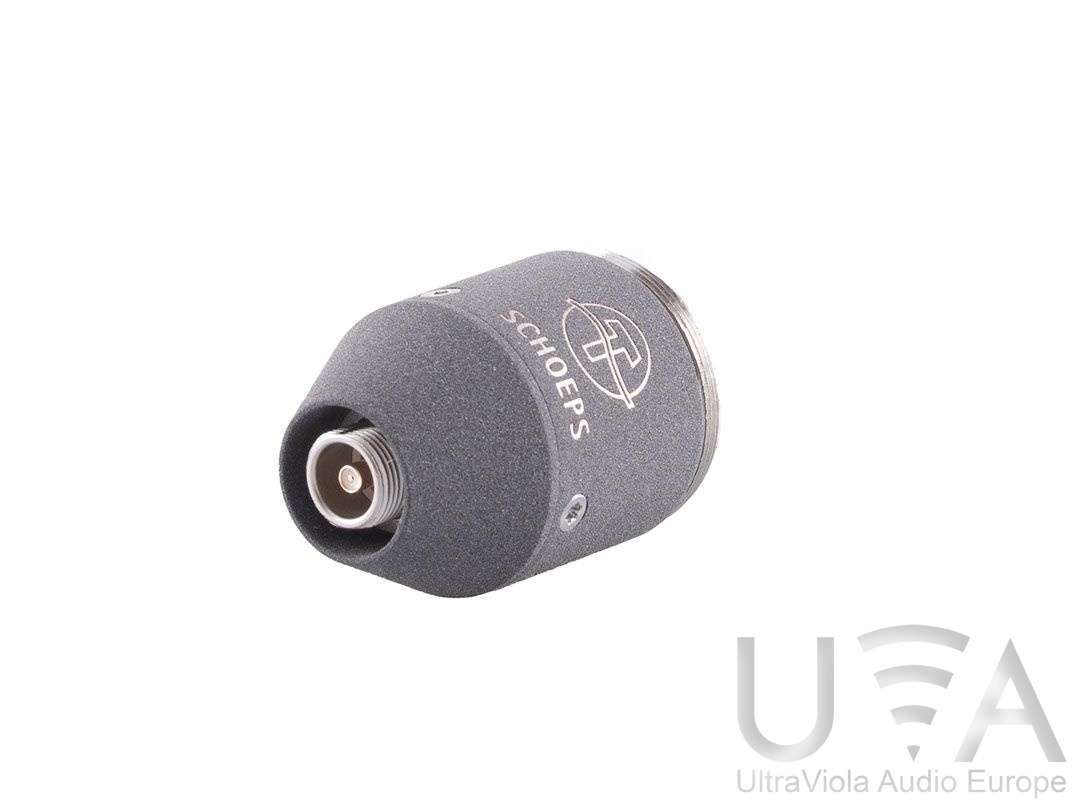

- Variant of the CMC 1 U with miniature Lemo output connector

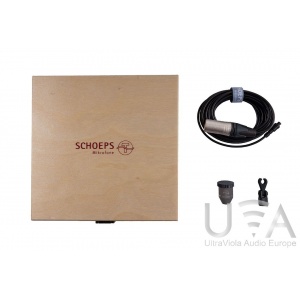

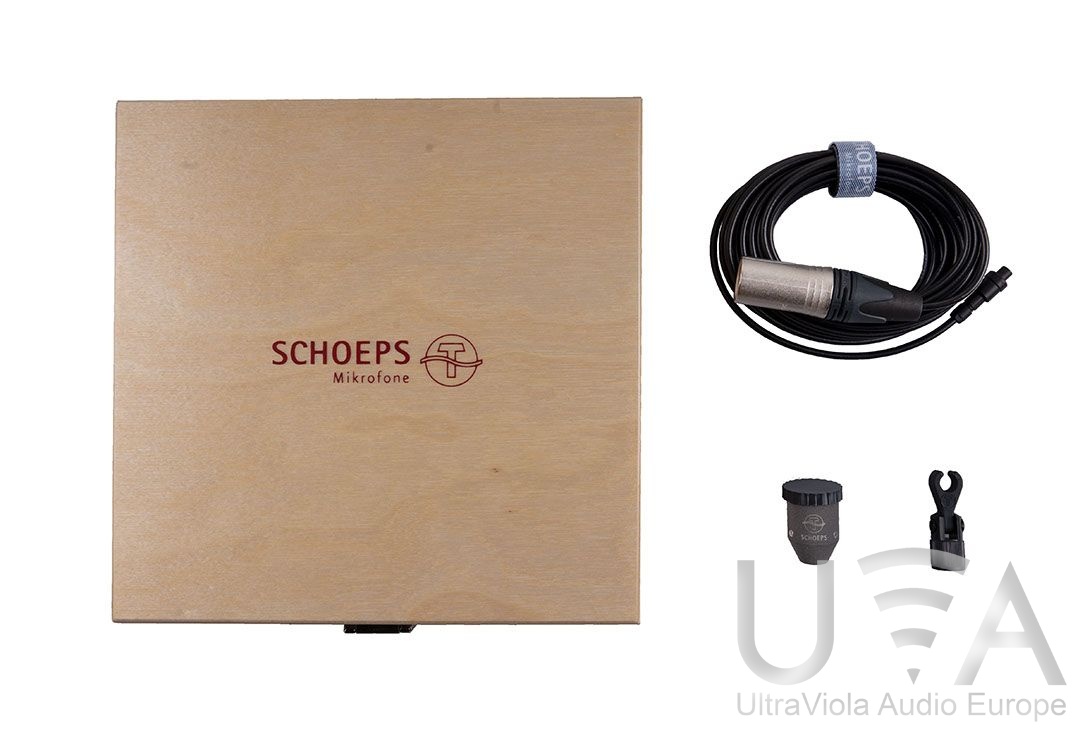

- K 5 LU (5 m cable with XLR-3M plug) and SGC stand adapter are included
- Fully equal alternative to the well-known CMC 6
- Compatible with all available MK capsules and active Colette accessories, e.g. CUT 60 or RC

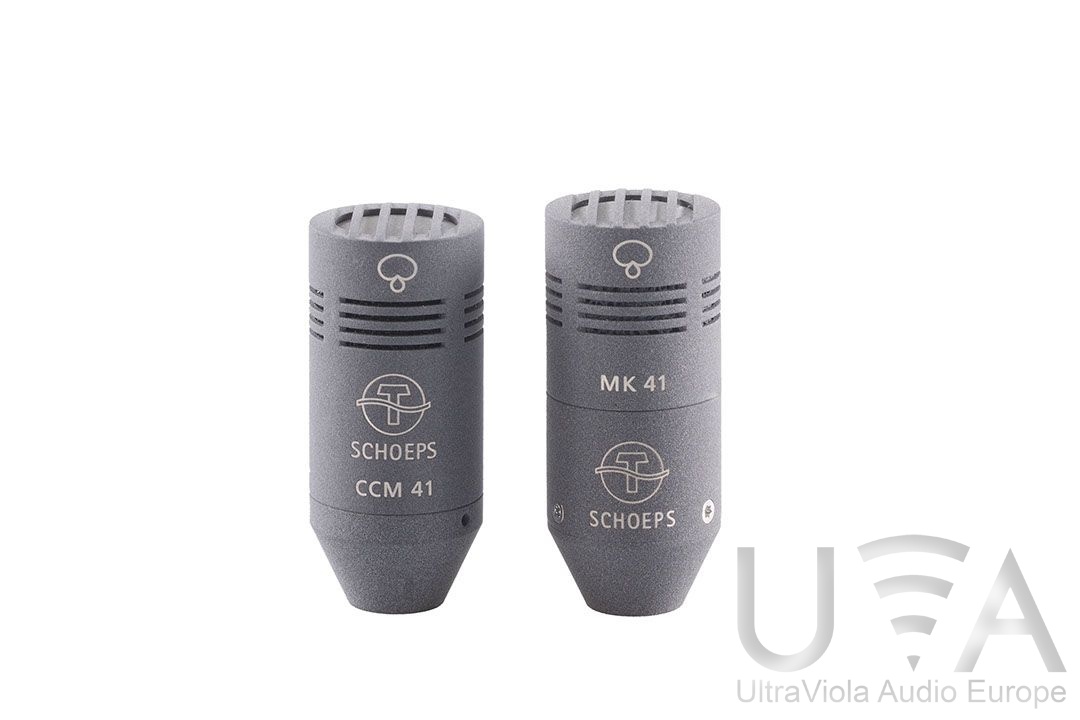

- Compatible with all accessories of the CCM series, e.g. TR L oder STA
- Recommended accessories for boom use are the same as for CCM microphones, e.g. MINIX CCM LU or Rycote INV-5.
Description
At SCHOEPS, “uncompromising miniaturization” means that the electrical characteristics of the CMC 1 are equal to, or even better than, those of the CMC 6. Through modern electronic design, these outstanding electrical properties have been achieved:
- high maximum SPL: 135 dB-SPL with the MK 4 (0.5% THD or less)
- very low current consumption: 2.0 mA at 48 Volts
- operates on 48 V or 12 V phantom power, reliable operation even if powering is somewhat marginal
- very high immunity from RF interference with the SCHOEPS RFI Shield; high immunity to cable-induced hum and other interference (field tested with Audio Limited A 10, etc.)
- flat frequency response
- very low distortion
- constant output impedance across the audio frequency range
- balanced, direct-coupled, class-A output circuit
- output is filtered in the ultrasonic range to prevent interference, e.g. from camera autofocus

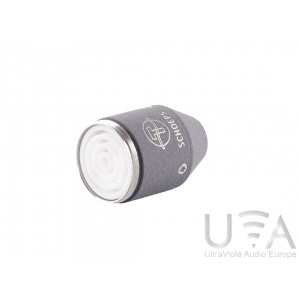

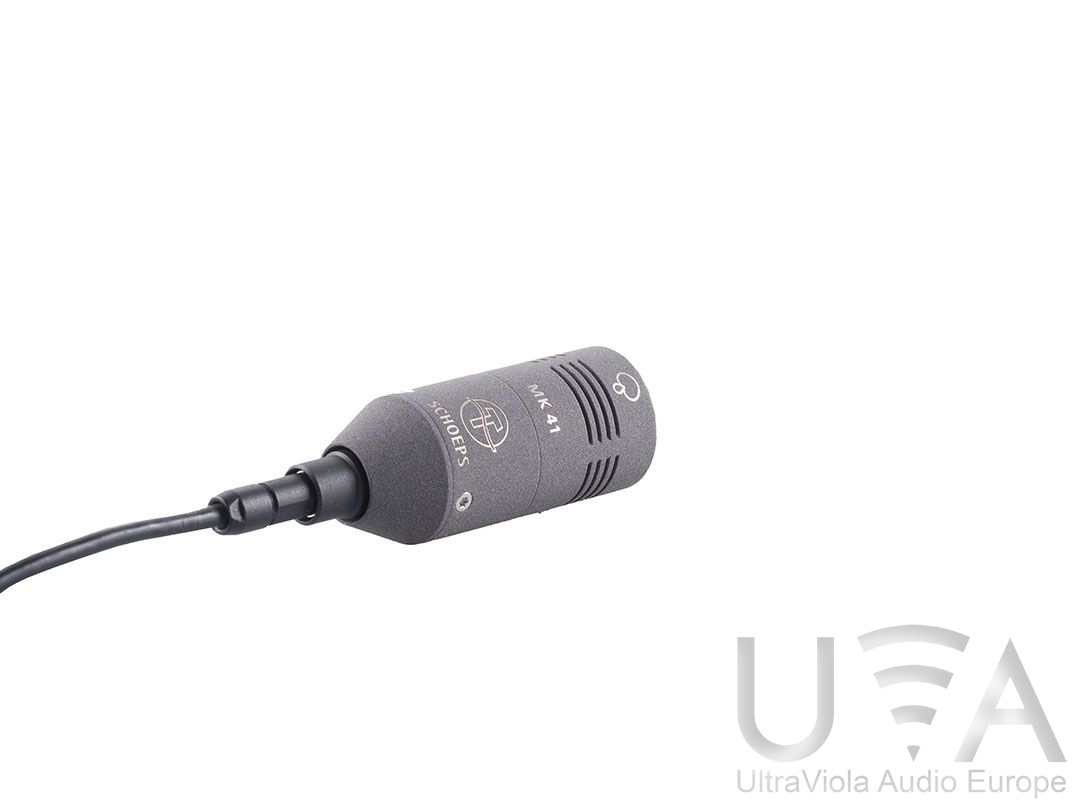

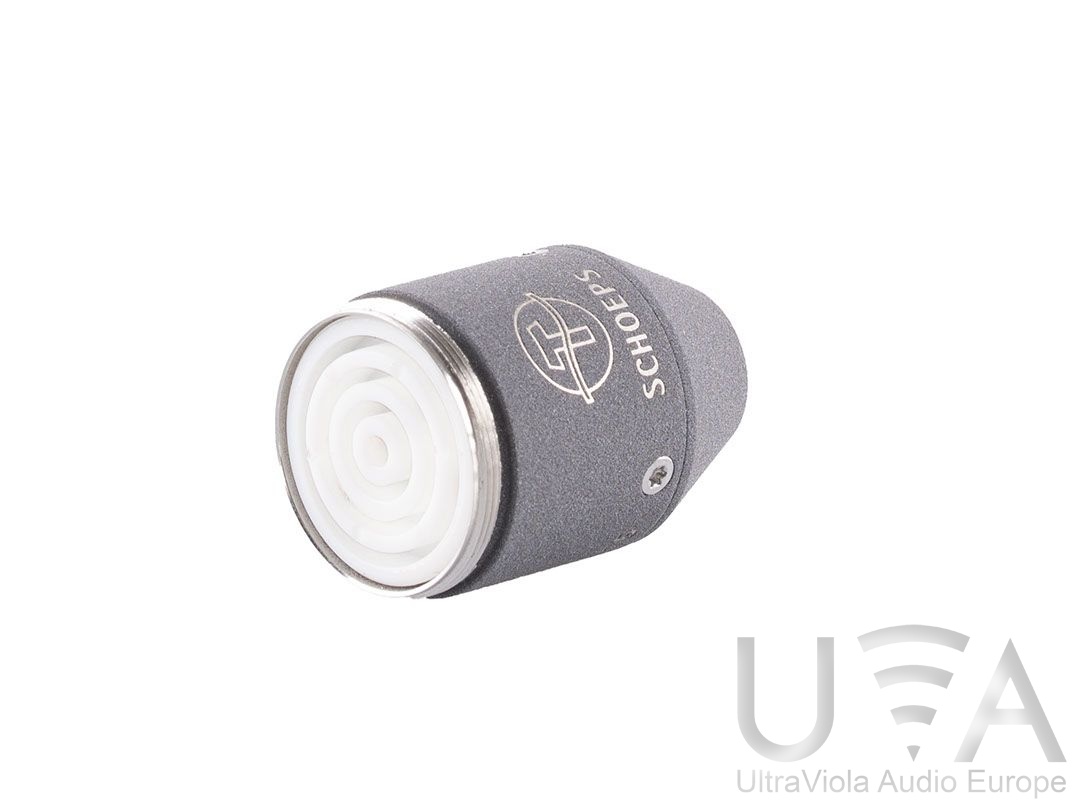

A complete Colette-series microphone consists of an MK capsule and a CMC amplifer. All capsules and active accessories of the Colette system are compatible with the CMC 1.
The CMC 1 works with standard 12-Volt or 48-Volt phantom powering. Power consumption is lower at 12 Volts--an advantage for battery-powered operation
Practice

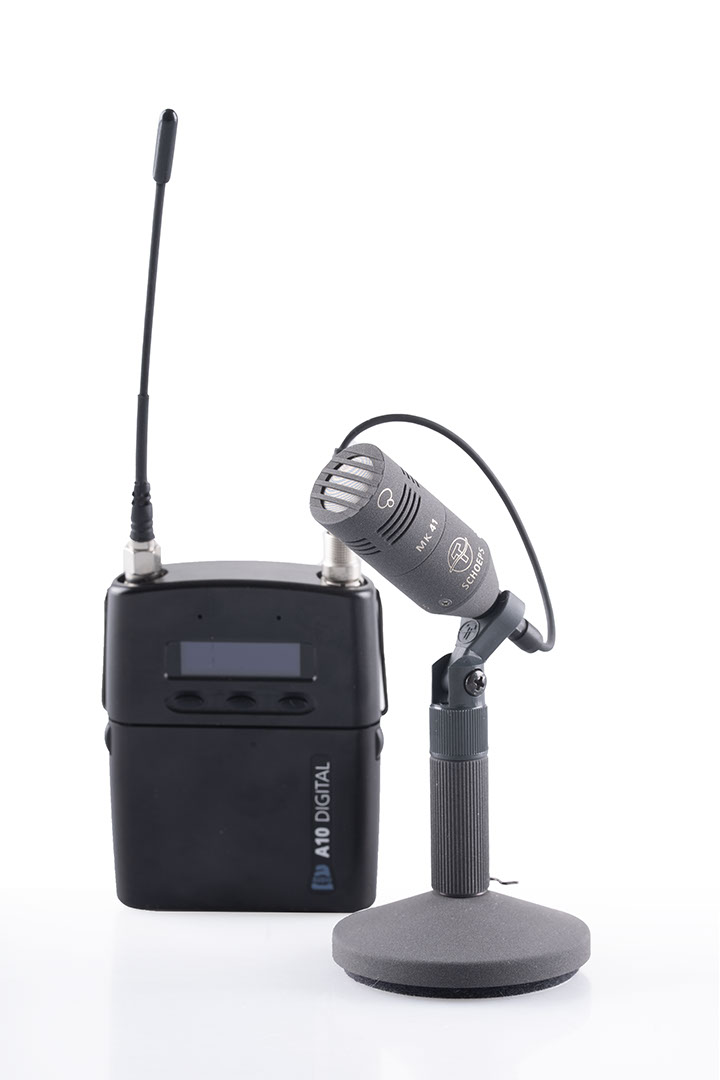

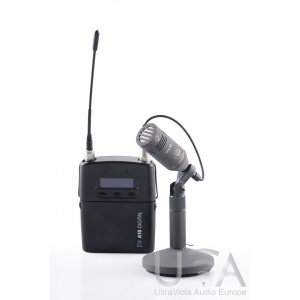

The optimized RF protection of the CMC 1 makes it the ideal microphone for use with transmitters such as the Audio Limited A 10. The use of the CMC 1 U and CMC 1 L versions on the A 10 has been successfully tested.
Find info on the pin assignement of the adapter cable between the two devices here.
Tech Specs
Frequency range |
20 Hz-20 kHz
|
| Sensitivity |
see corresponding capsule
|
| Maximum output voltage |
1,8 V (5 dbV) with 1kΩ load
|
| Maximum sound pressure level (THD < 0.5 %) |
135 dB-SPL (P48) with MK 4
131 dB-SPL (P12) with MK 4
|
| Low cut filter |
20 Hz, 12dB/oct
|
| Output impedance |
50 Ω +/- 1 Ω (8 Hz - 50 kHz)
|
| Minimum recommended load impedance |
1 kΩ
|
| Common mode rejection ratio (at 1 kHz) |
> 55 dB
|
| Maximum cable length |
> 400 m / ~1300 ft
|
| SCHOEPS RFI Shield |
Yes
|
| Powering standard / Valid range |
P48 / 30-52 V
P12 / 11-13 V
|
| Current consumption |
2mA (P48)
3 mA (P12)
|
| Output |
Lemo, analog, 1 channel
|

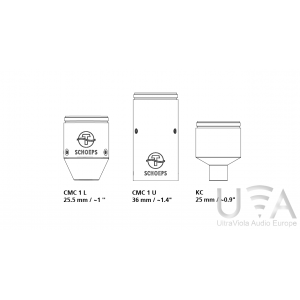

| Length |
25.5 mm / ~1 ''
|
| Diameter |
20 mm / 0.8''
|
| Weight |
28 g / ~1 oz
|
| Surface finish |
matte gray
custom color:
nickel, chromagreen
|
