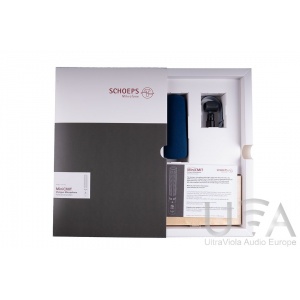

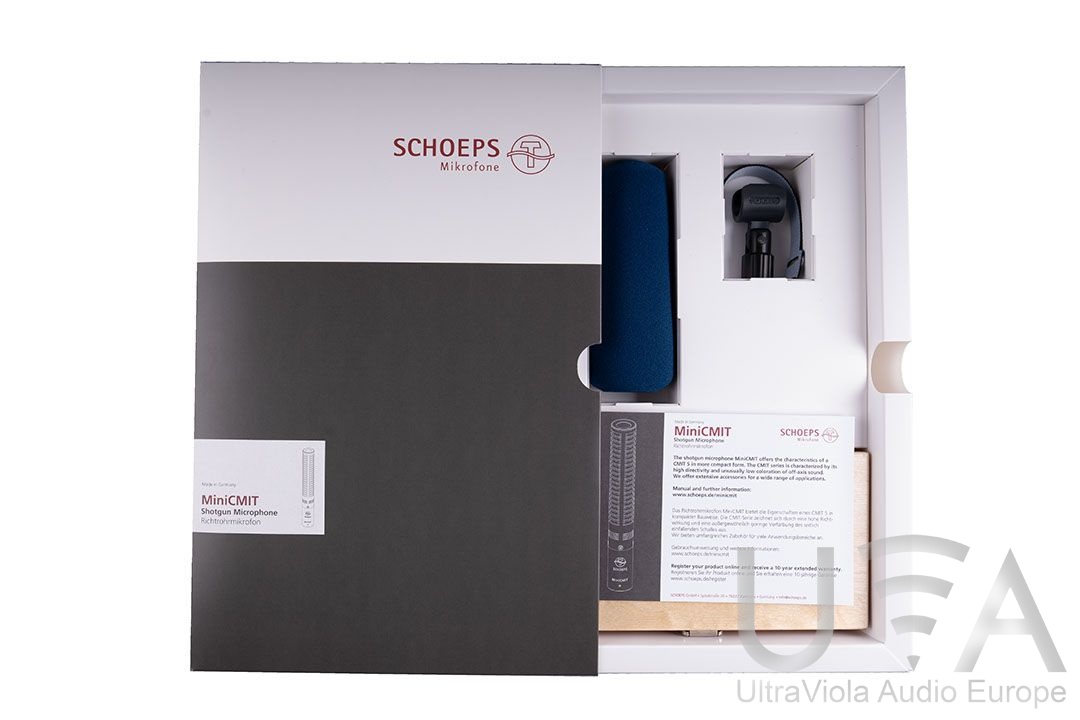

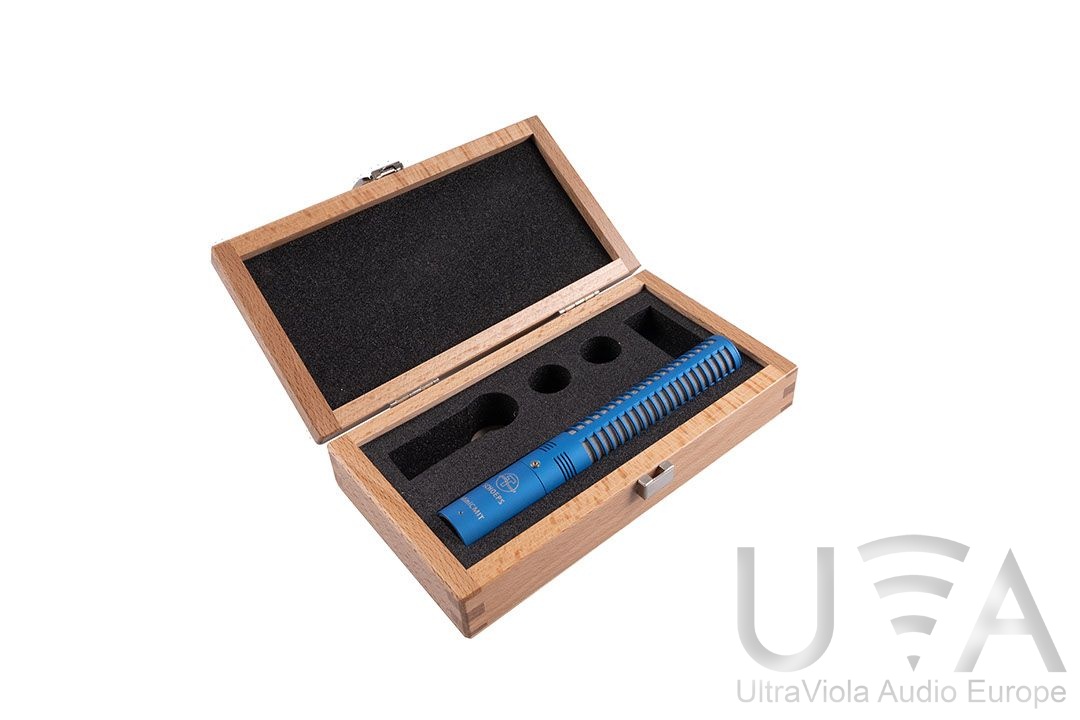

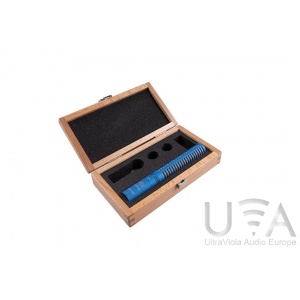

Schoeps MiniCMIT Miniature Shotgun microphone, incl. SG 20, W140, wooden box

Schoeps MiniCMIT Miniature Shotgun microphone, incl. SG 20, W140, wooden box

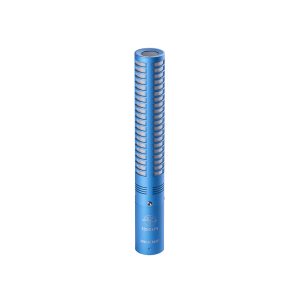

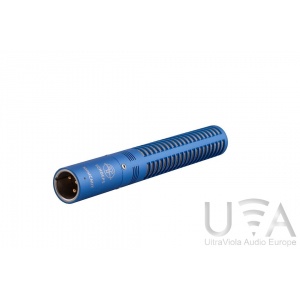

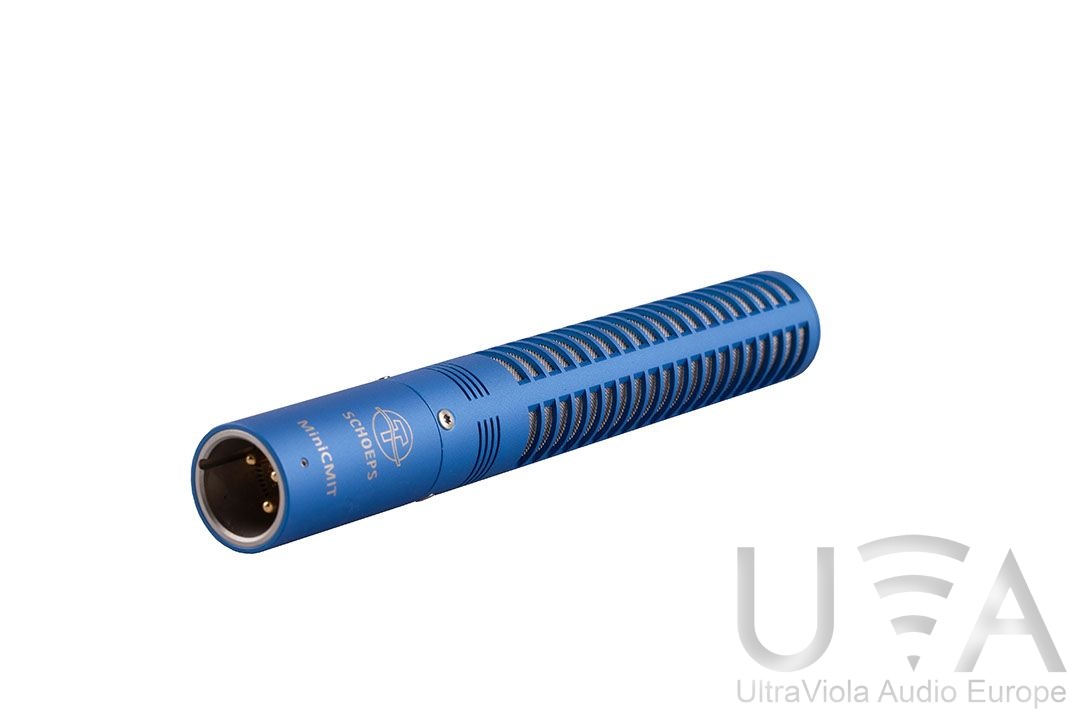

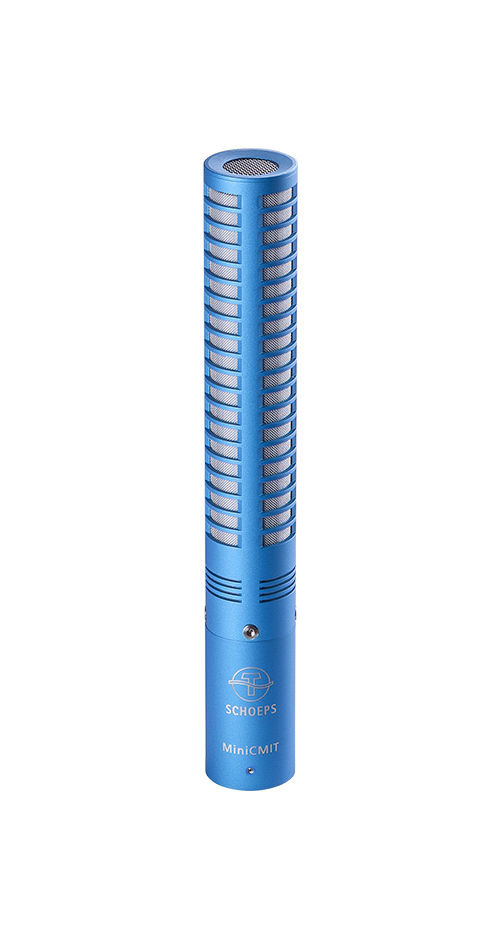

The shotgun microphone MiniCMIT offers the characteristics of a CMIT 5 in more compact form. The MiniCMIT, CMIT 5 and SuperCMIT (ch2) have identical frequency response curves. Furthermore, the MiniCMIT and CMIT 5 have circuitry with similar characteristics, such that the microphones can be interchanged without altering the sound. For current suitable windscreens and suspensions pleas read the brochure which can be found in the "Downloads" rider.

• Offers the characteristics of a CMIT in more compact form
• Phantom Powering with P12 and P48
• low current draw
• Fixed 4th order low-cut filter at 70 Hz

• Application
• Specifications
• Graphics
• Downloads

Application

Specifications

Sensitivity	16.5 mV/Pa
Equivalent noise level (A-weighted)	14 dB-A (P48)
Equivalent noise level (CCIR)	24 dB (P48)
Maximum sound pressure level at 0.5% THD	130 dB (P48), 115 dB (P12)
Powering voltage	P48 / >24 V, P12 / >11 V
Current consumption with 48 V	2.3 mA
Output impedance	100 Ω
Output socket	XLR-3M, analog, 1 channel
Filter(s)	fixed low-cut, 70 Hz, 24 dB/oct.
Length	151 mm
Diameter	21 mm
Weight	78 g
Additional comments	SCHOEPS RFI Shield
Length of the cable	>100 m

Graphics

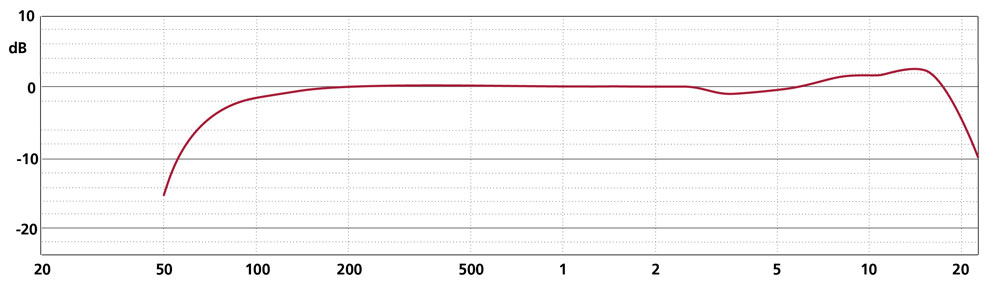

Frequency response curves CMIT series

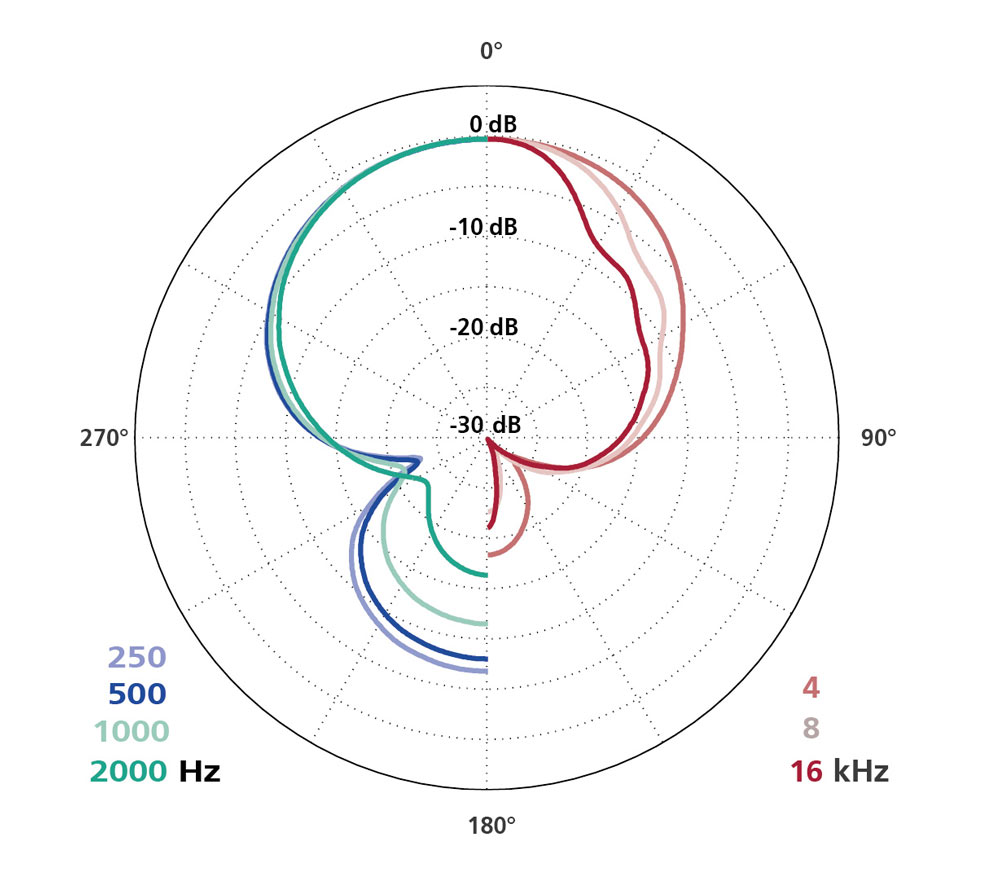

Polar patterns CMIT series

Downloads

Papers
RFI Shield Tech Note on the RFI Shielding in microphones		Download (pdf, 474.55 kByte)

Prospectus sheet
CMIT Shotgun Microphone Series Product flyer CMIT Shotgun Microphone Series		Download (pdf, 2.45 MByte)

Reviews
Das Neue Blaue - Schoeps MiniCMIT Richtrohr Ist das MiniCMIT klanglich kompatibel zu den anderen Familienmitgliedern der CMIT-Serie und kann im Bedarfsfall einfach ausgetauscht werden, ohne die Soundkontinuität zu stören?		Download (pdf, 1.7 MByte)

Flyers
Windscreens CMIT series Available windscreens for the CMIT series		Download (pdf, 2.18 MByte)
