THE VERY LAST UNIT, WILL BE DISCONTINUED
Sennheiser EK 100 G4-A
Powerful camera receiver with a lightweight aluminum housing and for evolution wireless G4 100P Series systems. For documentary, Mobile Journalism and audio for video applications.
Features
-
Powerful camera receiver, easily mounted on any kind of camera
-
Excellent sound and construction quality
-
Easy to use and fast setup time
-
Powerful and reliable wireless transmission
-
Range: up to 100 meters / 330 feet
-
Up to 8 hours of operation time
Tech Specs
-
- Frequency range
-
-
- Dimensions
-
-
- Compander
-
-
- THD, total harmonic distortion
-
-
- Weight
-
(incl. batteries) approx. 160 g
-
- Audio output
-
3.5 mm jack socket: +12 dBu (mono, unbalanced)
-
- Signal-to-noise ratio
-
-
- Switching bandwidth
-
-
- Peak deviation
-
-
- Nominal deviation
-
-
- Operating time
-
-
- Modulation
-
-
- Power supply
-
2 AA batteries, 1.5 V or BA 2015 accupack
-
- Current consumption
-
at nominal voltage: typ. 180 mA
with receiver switched off: ≤ 25 µA
-
- Adjacent channel rejection
-
-
- Intermodulation attenuation
-
-
- Powering
-
3 V battery / 2.4 V rechargeable battery
-
- Receiving frequency
-
Max. 1680 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
-
- RF sensitivity
-
< 1.6 μV for 52 dBA eff S/N
-
- Squelch
-
low: 5 dBµV, middle: 15 dBµV, high: 25 dBμV
-
- Temperature Range
-
-
- Receiver Principle
-
-
- Blocking
-
Contents
- EK 100 G4 camera receiver
- 2 AA batteries

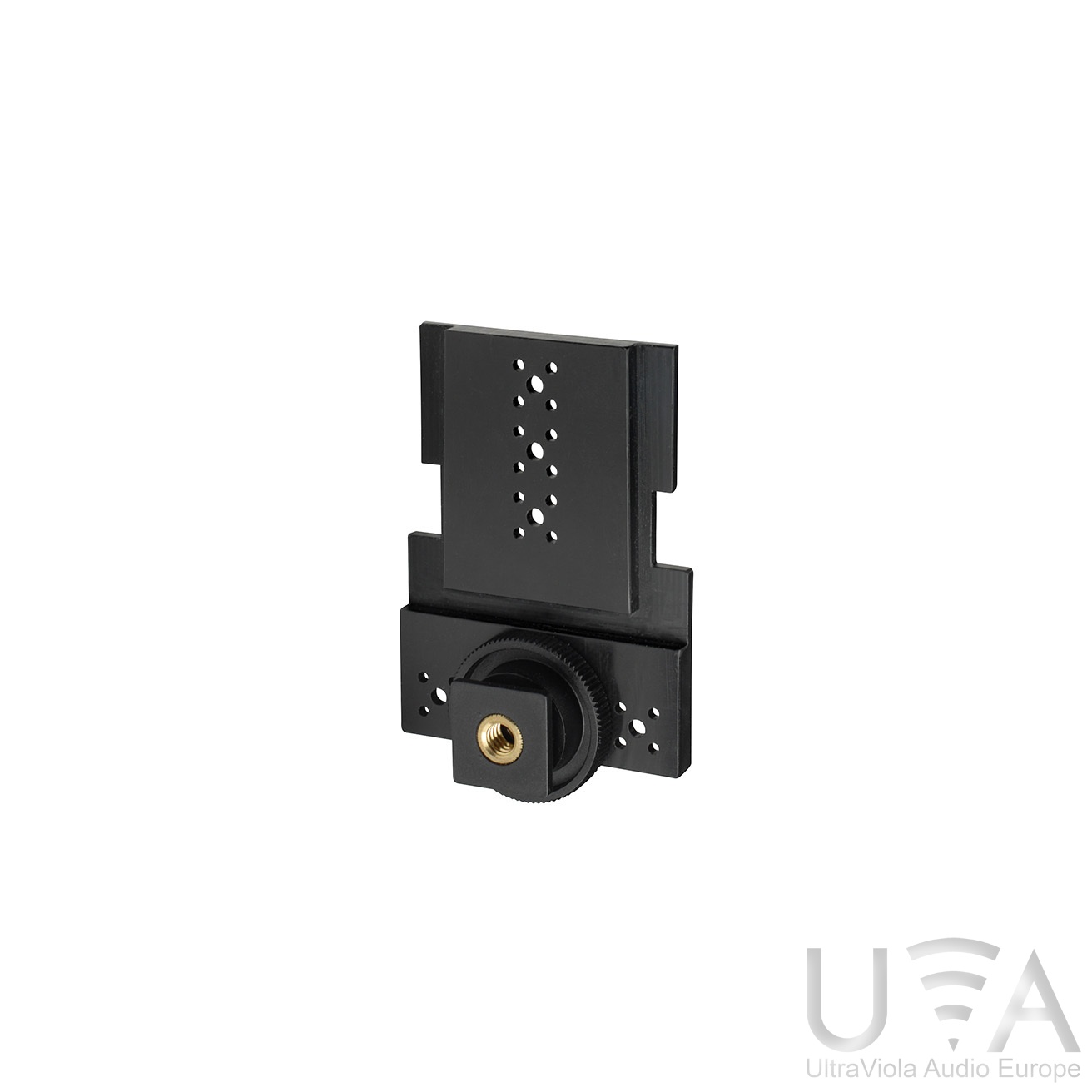

- CA 2 camera adapter
- CL 1 3.5 mm jack cable
- CL 100 XLR to 3.5 mm jack adapter cable
- quick guide
- safety guide
- manufacturer declaration sheet
