Sennheiser SKM 6000 BK A1-A4
More channels, better transmission performance: intermodulation-free handheld transmitter with maximum spectral efficiency and huge signal reliability. Via the Sennheiser standard capsule interface, compatible with Sennheiser and Neumann capsules. Up to 5.5 hours of operation with lithium-ion battery pack, optionally battery set.
No microphone capsel included
No battery/rechargeable battery compartment included
Microphone clamp included
Main Benefits
-
Three frequency variations (470-558 MHz, 550-638 MHz, 630-718 MHz)
-
Sennheiser standard capsule interface, compatible with microphone heads from evolution wireless G3, 2000, Digital 9000, Neumann KK 204 and KK 205 series
-
Highly effective intermodulation protection
-
AES 256 encryption and Digital 9000 encryption
-
Compatible with EK 6042 and EM 9046 in Long Range mode
-
Li-ion battery packs with 5.5 hours run time
-
Magnesium housing
Overview
The handheld transmitter SKM 6000 is intermodulation-free, which allows operation in an equidistant frequency grid. The transmission concept thereby permits maximum spectral efficiency even in the toughest frequency ranges. In short: more channels, maximum transmission performance at all times and hence outstanding signal stability. The legendary Sennheiser Digital Audio Codec (SeDAC) guarantees clear, artifact-free sound and optimum dynamics. In Link Density mode up to 5 links per 1 MHz bandwidth are possible.
The SKM 6000 is compatible with Sennheiser and Neumann capsule heads and hence perfectly prepared for any stage, voice and requirement (evolution wireless, 2000, Digital 9000, Neumann KK 204 and KK 205).
The special magnesium housing offers the perfect balance between low weight and live-compatible robustness.
The lithium-ion battery pack BA 60 ensures up to 5.5 hours of operation; there is also the option of operation with batteries using the battery set B 60.
The transmitter is also compatible with the EK 6042 and the EM 9046 in Long Range mode.
Tech Specs
-
- Dimensions
-
-
- Weight
-
Approx. 350 g (with BA 60 battery pack and ME 9005 microphone module)
-
- Power consumption
-
-
- RF output power
-
-
- Switching bandwidth
-
-
- Operating time
-
5.5 h (with BA 60 battery pack)
-
- Frequency range
-
470 to 718 MHz, subdivided into 3 ranges:
SKM 6000 A1 - A4: 470 - 558 MHz
SKM 6000 A5 - A8: 550 - 638 MHz
SKM 6000 B1 - B4: 630 - 718 MHz
-
- Audio codec
-
SeDAC (Sennheiser Digital Audio Codec)
SePAC (Sennheiser Performance Audio Codec)
-
- Frequency stability
-
-
- Tunability
-
-
- Lower cut-off-frequency
-
Adjustable: 60 Hz, 80 Hz, 100 Hz, 120 Hz
-
- Encryption
-
AES 256 and Digital 9000 encryption
-
- Audio frequency response
-
-
- Audio Gain
-
Can be set in 3 dB steps from 0 dB to +62 dB (for each capsule)
-
- Modulation scheme
-
Digital modulation long range mode
Digital modulation Link Density Mode
Content

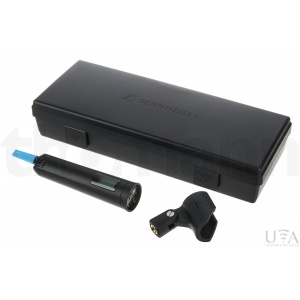

DELIVERY INCLUDES
• SKM 6000 handheld transmitter
• MZQ 9000 microphone clamp
• quick guide
• safety guide
