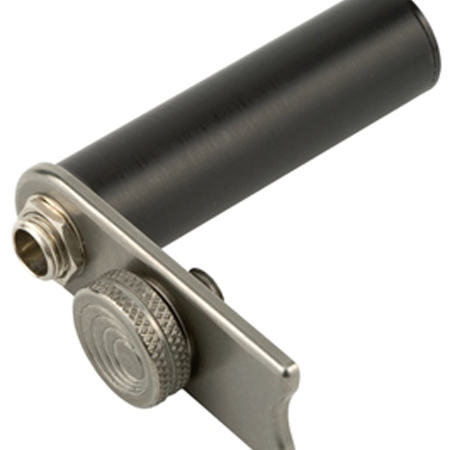

The Lectrosonics SMBATELIM Battery Eliminator replaces battery power and provides 6 to 36V DC power to the SM transmitter. It's constructed to slide into the battery compartment and secure onto the transmitter. The Battery Eliminator replaces the battery door and exposes the coaxial power connection.
Main Benefits
- Replaces Batteries for SM Transmitters
- Supplies 6 to 36V DC
- Works with Dual Battery Models
Description
The panel is notched so that it can be mounted onto dual battery SM transmitter models, without trapping a battery inside. It also includes an insert for occupying the second battery compartment (on dual battery models) and keeping them free of dust.
Tech Specs
| Input |
6.0V DC Minimum, 36V DC Maximum
400mA Minimum Required at 6V DC |
| Output |
1.8V DC Regulated
1.0A Maximum Rating
2.0A Activates Internal Current Limiting Shutdown |
| Connector |
Coaxial Type; Locking LZR; RL26AE |
| Dimensions |
2.375 x 1.830 x 0.642" (60 x 46.5 x 16.3mm) |
| Weight |
0.8 oz (23g) |
