470-1525MHz SpectraBand omnidirectional antenna, single
Overview

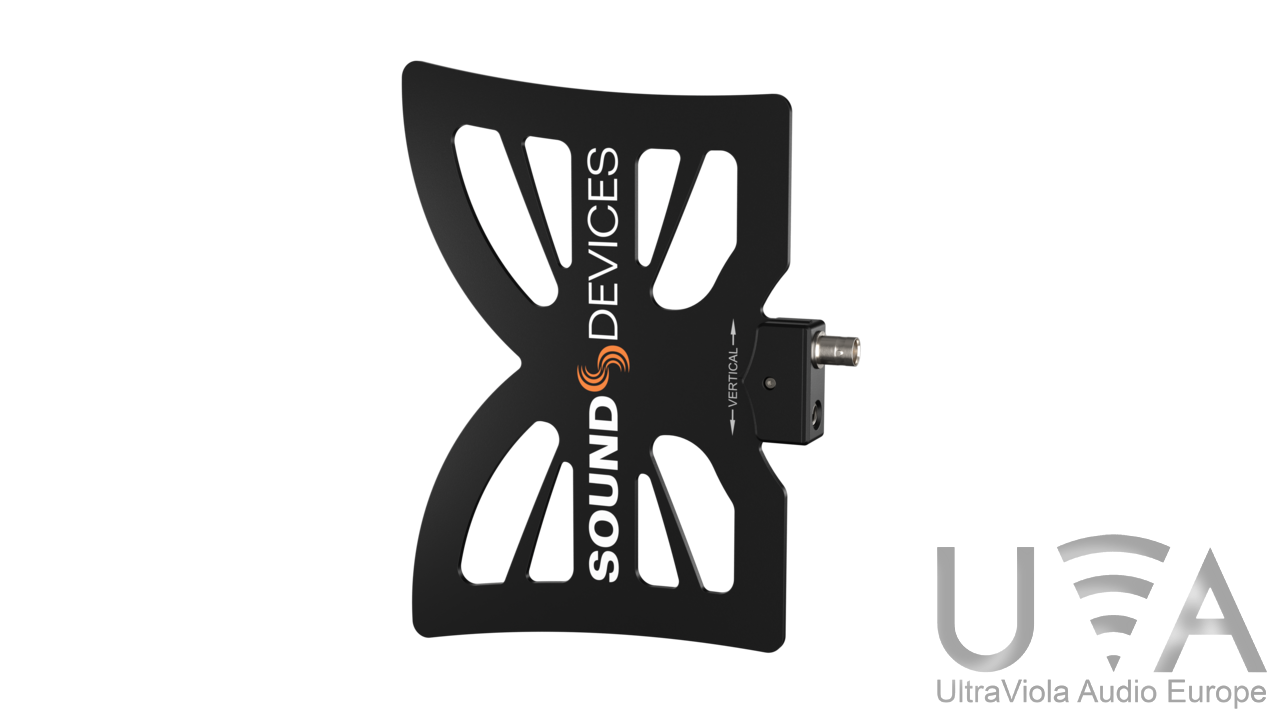

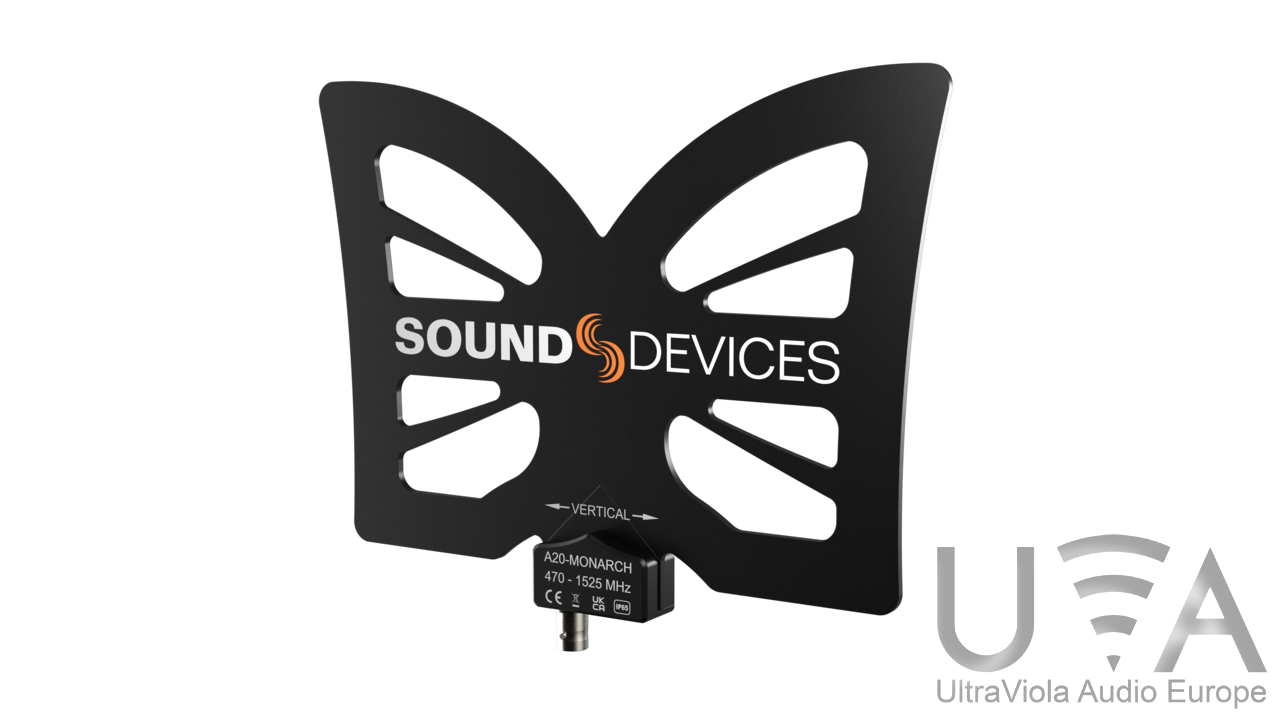

The A20-Monarch is an omnidirectional, wide-bandwidth (470-1525 MHz) antenna. It provides uniform coverage and gain across the exceptionally wide SpectraBand tuning range of the Sound Devices Astral series wireless products. The antenna is paired with a multifunction clamp and articulating arm, as well as two accessory cables.
What's in the box

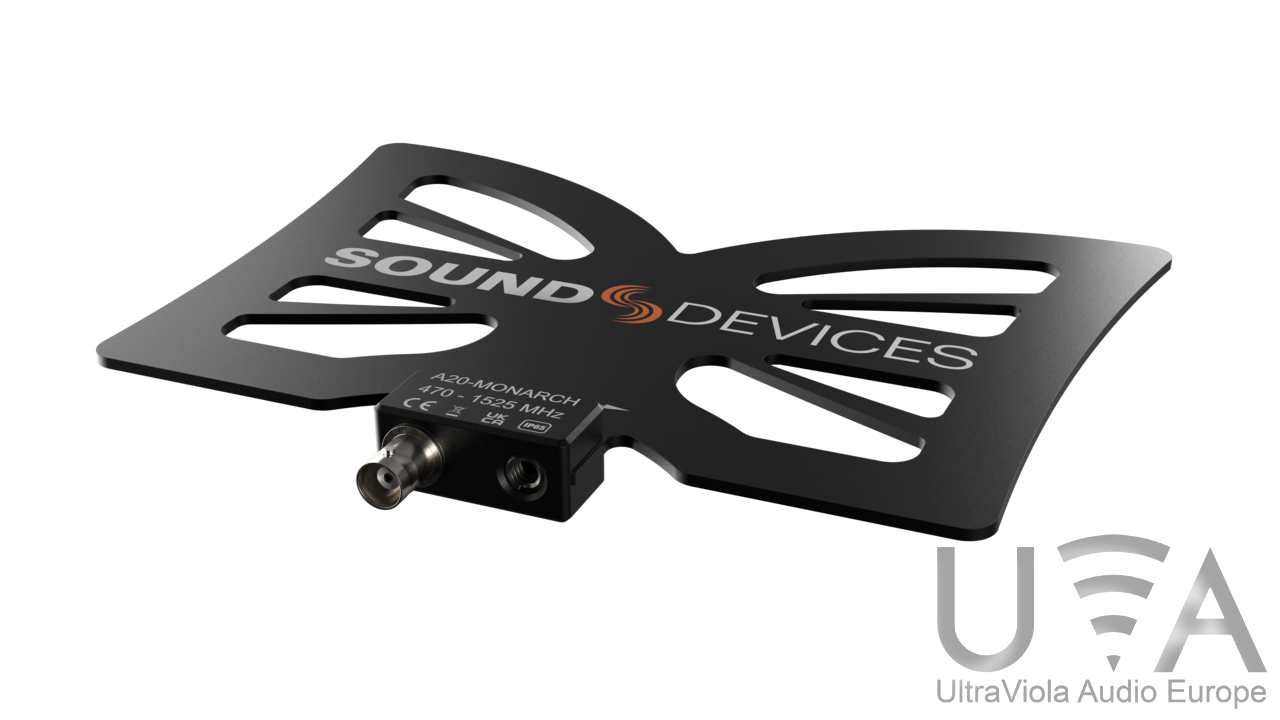

- 1x A20-Monarch antenna with BNC-F connector and 1/4″-20 female threaded mount

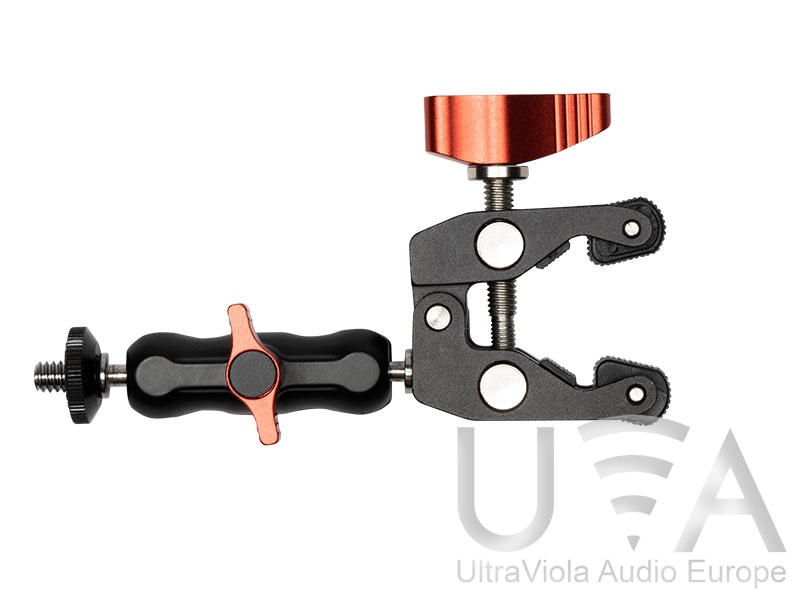

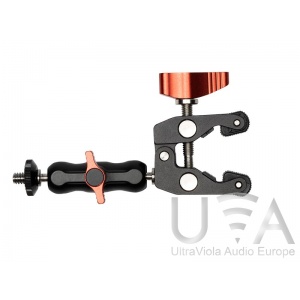

- 1x adjustable clamp and articulating arm with 1/4″-20 male threaded mount
- 1x 30 in/75 cm BNC-M to BNC-M cable
- 1x 18 in/45 cm BNC-M to SMA-M cable
Specifications
- Frequency range
- Gain
- Pattern
- Return Loss
- Better than 15 dB across entire 470 – 1600 MHz range
- Mounting Threads
- Dimensions (H x W x D)
- 17.0 cm x 21.0 cm x 1.7 cm
- (6.68 in x 8.26 in 0.67 in)
- Weight
- 0.12 kg (unpackaged)
- 0.26 lbs (unpackaged)
