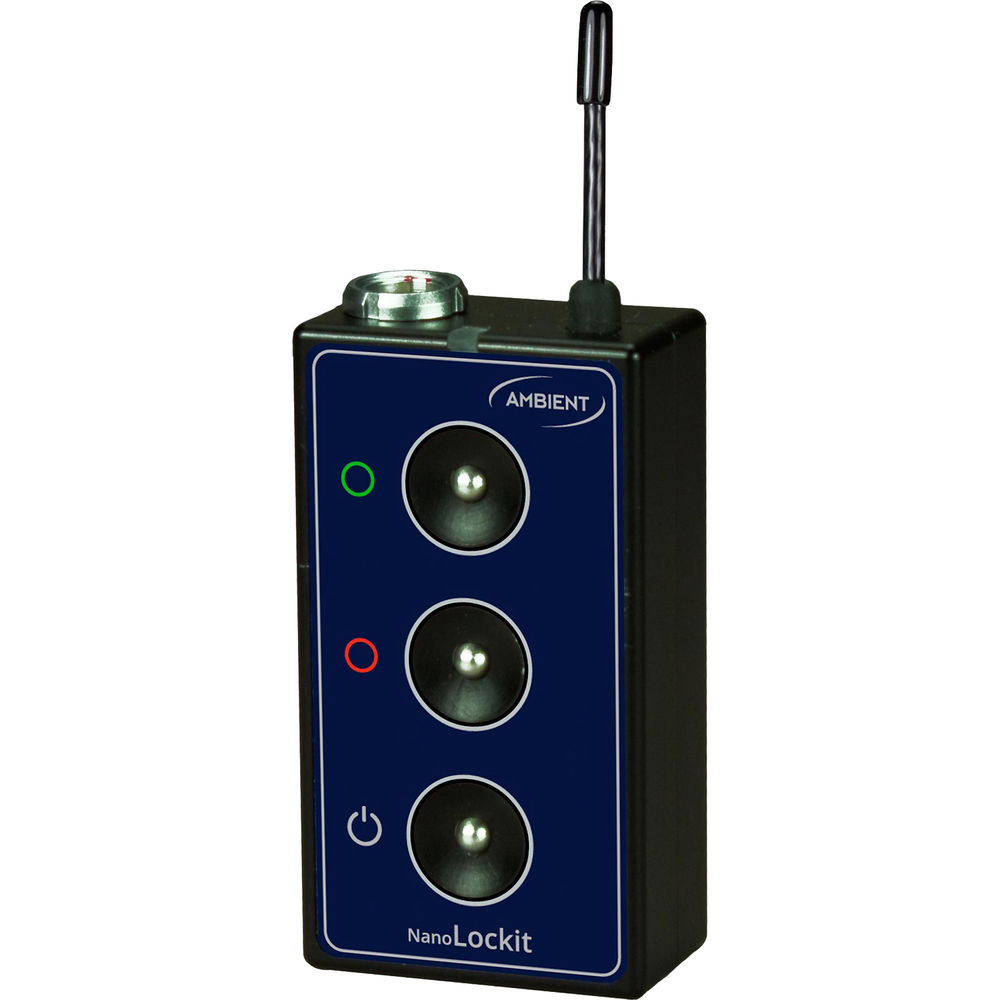

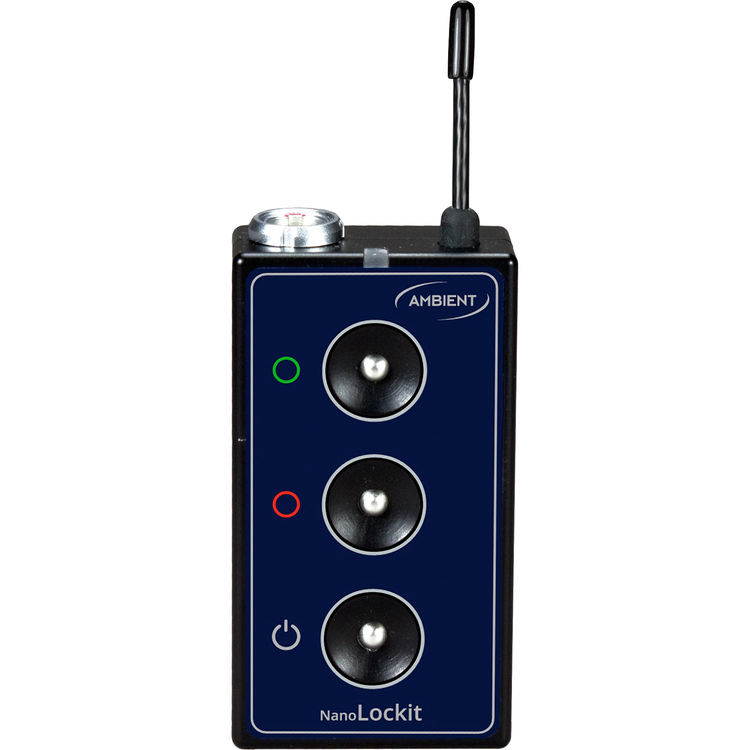

Ambient Recording NanoLockit Wireless Timecode Generator
The matchbox-sized NanoLockit from Ambient Recording is a highly accurate and easy-to-use timecode generator which allows you to wirelessly sync timecode and framerate between devices such as DSLRs, film cameras or audio recorders. Synced devices enable you to generate clips that can be quickly auto-conformed in professional editing software, streamlining your post-production workflow.
Main Benefits
- Wireless Transceiver over ACN Network
- For DSLR, Consumer, and Small Cameras
- Matchbox-Size Form-Factor
- One-Button Syncing
- Generate Timecode with Real Time Clock
- Jam-Sync to Other NanoLockits
- Supports All Timecode Framerates
- 35-Hour Rechargeable Battery
- Adjustable Timecode Output Level
- Solid Aluminum Body
Description
In the past 25 years Ambient Timecode has become the synonym for precision and reliability. Today it is the go-to solution for video and audio professionals worldwide. Renowned Post-Production facilities demand the use of Ambient Timecode on set as they know they can reliably safe time.
The NanoLockit is the latest addition to the Lockit familiy. With its small size, its pure simplicity and the highest possible accuracy it is the timecode solution for everyone!

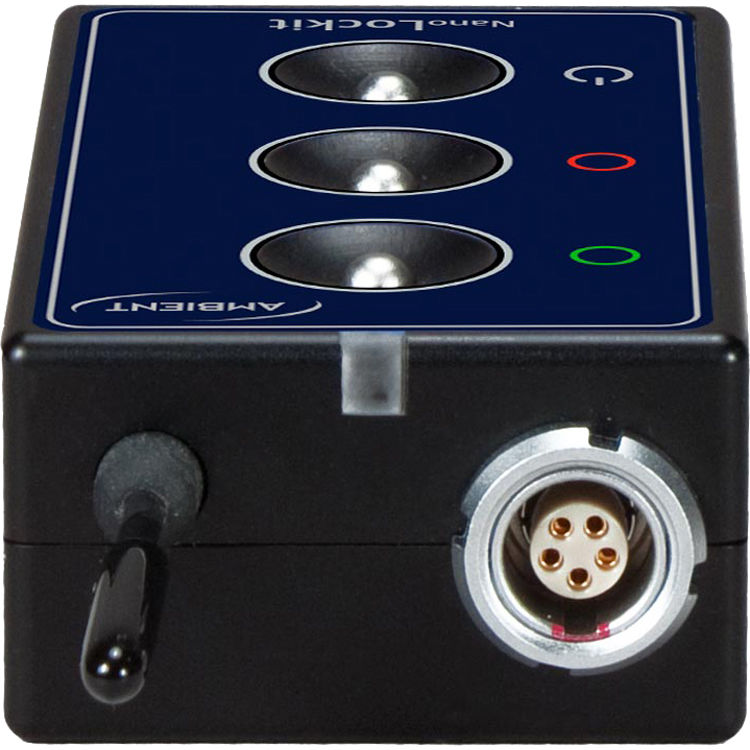

The NanoLockit lets you generate timecode at all framerates using the built-in Real Time Clock (RTC), or jam-sync other units by feeding in external timecode via the 5-pin LEMO connector. Syncing up is a one button experience as the unit self-configures and the framerate is set automatically when jammed.

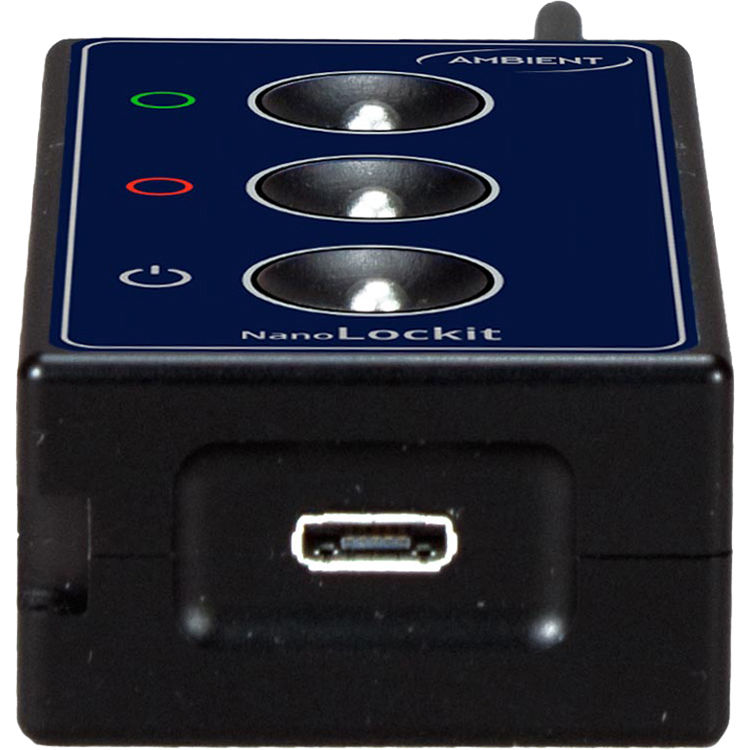

Timecode and metadata are transmitted via the proprietary 2.4 GHz, ACN long-range radio network, making the unit compatible with all other ACN Lockit devices. Power is provided externally via the micro-USB port or by the rechargeable battery, which provides 35+ hours of operation on a full charge. With its sturdy aluminum body and locking LEMO connector, the NanoLockit is well equipped to withstand the prolonged rigors of on-set use.
Tech Specs
| Timecode |
Supports all timecode framerates |
| Timecode Input & Output |
5-pin LEMO connector |
| Operation Modes |
Generator mode
TRX mode |
| Wireless Transmission |
Proprietary ACN communication and synchronization network
Transmits timecode and metadata
Frequency: 2.4 GHz |
| Power |
External Power: Micro-USB
Internal Power: Rechargeable lithium-ion battery |
| Battery |
Battery Life: 35 hours (with full charge)
Charge Time: 2 hours (full charge), 15 minutes (for 4 hours of operation) |
| Dimensions |
2.6 x 1.4 x 0.8" / 65.5 x 36.5 x 21.0 mm
1.2" / 31.0 mm (antenna) |
| Weight |
2.5 oz / 72.0 g |
Videos
Contents
Ambient Recording NanoLockit Wireless Timecode Generator
- Red and Blue Antenna Caps
- Lanyard
- 2 x Reclosable Fasteners (NL-DL)
- Limited 1-Year Warranty
