Product Code: 089105

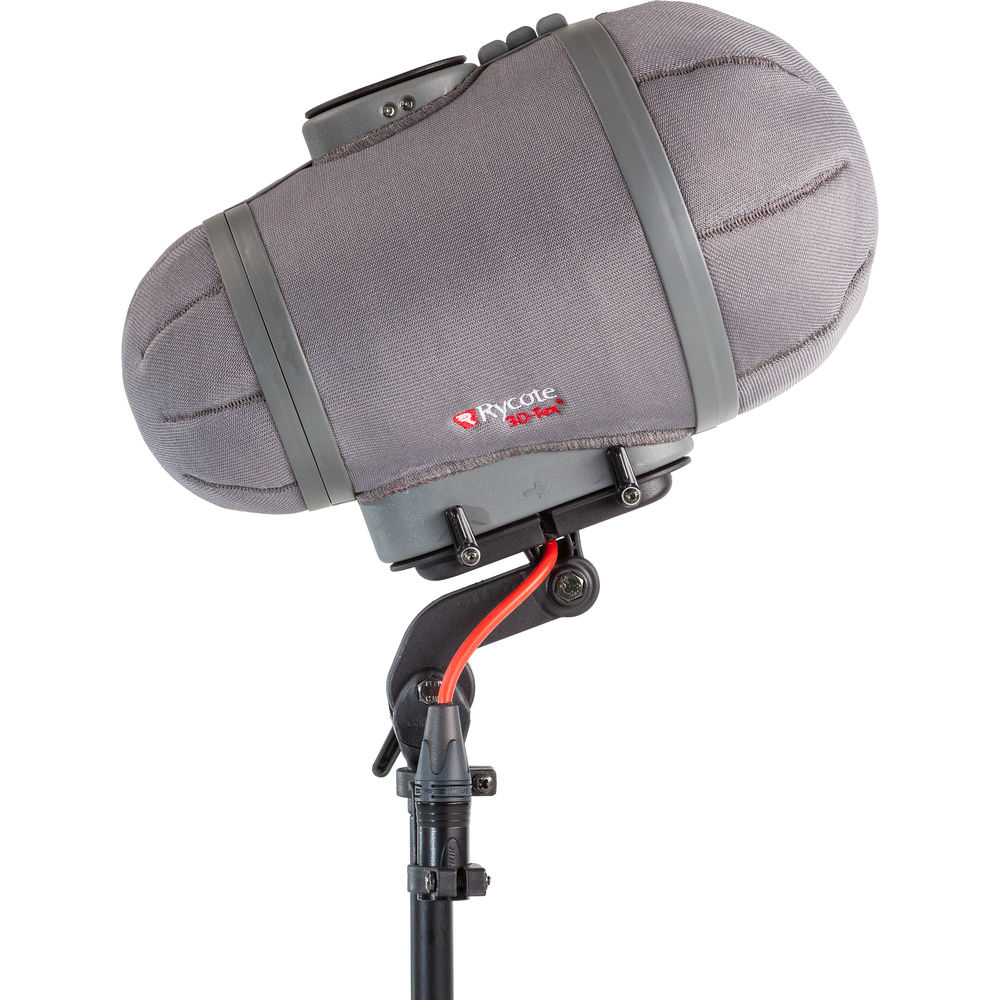

Ideal for a multitude of outdoor ENG, broadcast, and film applications, this small Cyclone Windshield Kit from Rycote features a two-piece "Z-Locking" basket design that magnetically affixes around your microphone, isolating the mic from wind-caused noise. Up to 50 dB of reduction can be achieved with use of the Cyclone Windshield alone, and >60 dB is possible when used with a Windjammer on top of it. Increased transparency is achieved due to the cone-like shape, which reduces reflections from parallel surfaces in the recording environment, providing clean audio recordings during outdoor interviews, location shoots, and more. It's designed to provide wind noise reduction that exceeds traditional modular-style windshield/windjammer combined performance.
Main Benefits:
- Complete Windshield & Suspension System
- >60 dB of Wind Reduction with Windjammer
- Isolation from Handling Noise
- Magnetized Two-Piece Basket Design
- Durable 3D-Tex Material
- Includes MZL Connector
Description

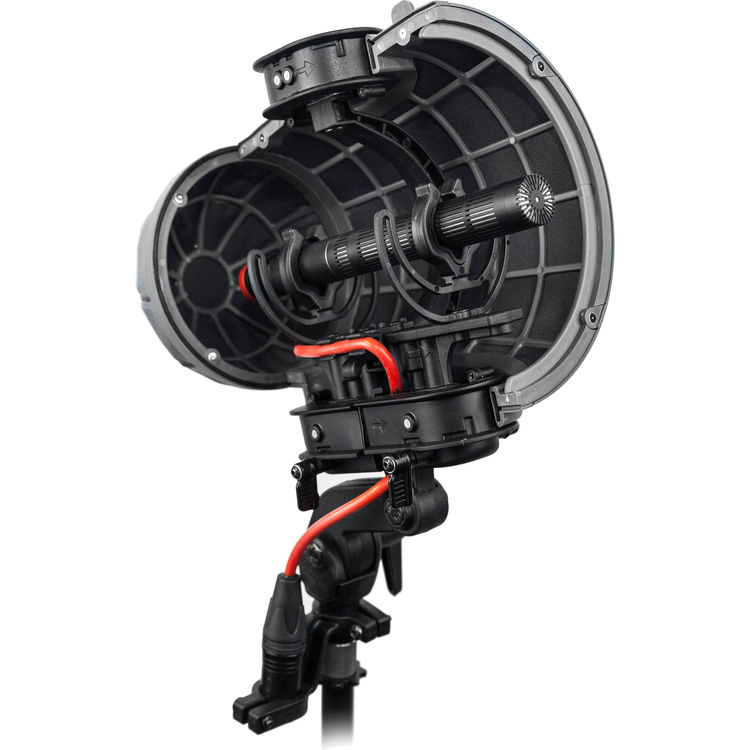

The Cyclone introduces a "multi-suspension" design that provides isolation against handling noise, cable-borne noises, and windshield basket self-noise. This multi-suspension design inhibits noise and vibration induced by the windshield itself from being mechanically transmitted, thereby improving recording quality.
The kit includes the Cyclone Suspension fitted with 72-shore Universal Lyres, a Cyclone MZL connector, a large Cyclone Windshield, a pair of Universal Lyres 62-shore for lightweight microphones, and a hex key driver for making adjustments to the Lyres on the suspension.
Tech Specs
| Compatibility |
Mic Type: Shotgun or rifle microphones
Mic Lengths: 250 to 280 mm
Mic Diameters: 19 to 25 mm
Max. Weight of Mic: 180 g
Mic Connector: XLR 3-Pin, female
Output Connector: XLR 3-Pin, male |
| Attenuation |
50 dB (Without windjammer)
>60 dB (With windjammer)
Measured Total Power: 10 Hz to 20 kHz (Under real wind conditions, no weighting) |
| Frequency Response |
Substantially flat (+0db, -3dB)
Measured Differential Twin Microphone Technique: 10 Hz to 20 kHz |
| Handling Isolation |
Typical: >10 dB, Dependent on microphone type and LF band-shaping |
| Temperature (Operating) |
-5° to 100°F / -20° to 38°C |
| Dimension |
Top Diameter: 6.2" / 157 mm
Bottom Diameter: 4.5" / 113 mm
Body Length: 5.6" / 142 mm
Overall Length: 11.7" / 297 mm |
| Weight |
Not specified by manufacturer |
Compatibility
Sennheiser: MKH 8060
Contents
Rycote Cyclone Windshield Kit (Small with MZL Connector)

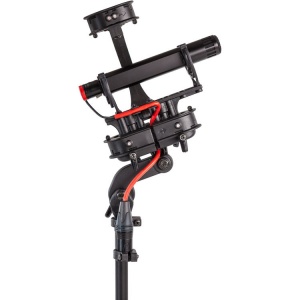

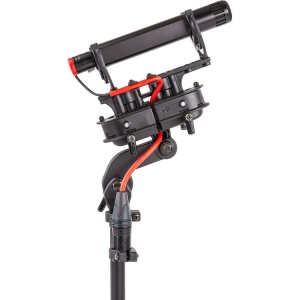

- Cyclone Suspension Fitted with 72-Shore Universal Lyres
- Cyclone Cable (XLR to XLR)
- Large Cyclone Windshield for the Cyclone Windshield Kit
- Pair of Cyclone Universal Lyre (62 Shore)
- Hex Key Driver
- Limited 1-Year Warranty
