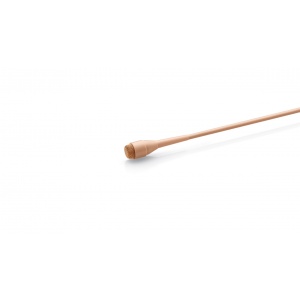

CORE, Lemo 3-Pin - Beige (4060-OC-C-F03)

419,00 €
(532,13 € incl. VAT)

Colour
Connector
Amplifier Technology

–

Add to cart

DPA 4060 CORE Omnidirectional Microphone, Normal SPL

This omnidirectional condenser lavalier microphone is small in size, but mighty in flexibility. Due to its miniature size, it exhibits an exceptionally accurate omnidirectional pattern and therefore does not need to be aimed directly at the sound source to achieve quality pickup. The omnidirectional pattern also makes it less sensitive to handling noise as well as pop and wind noise.

We originally designed this microphone for use with wireless systems in theaters but today it is one of the most loved mics for television and film applications as well. It is especially suited for capturing speech in all of its nuances and can be used to close-mike a wide range of instruments. This microphone handles sound pressure levels up to 134 dB before clipping occurs. This mic is well suited for applications where the sound source is more remote or damped and you need to have a good balance signal versus noise.

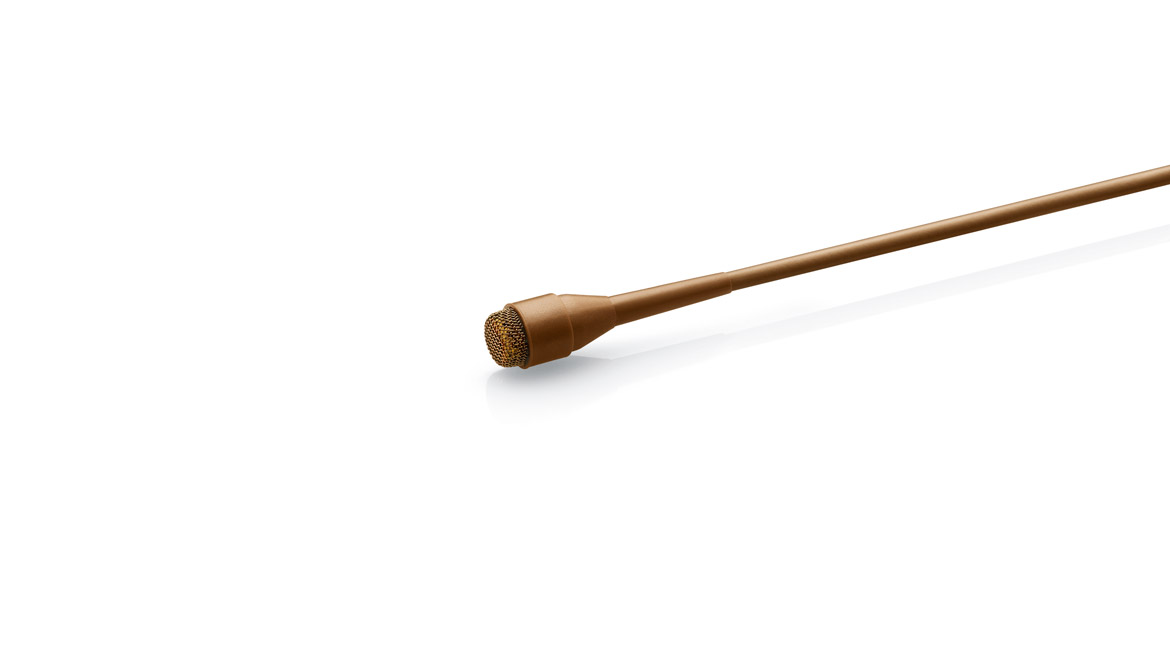

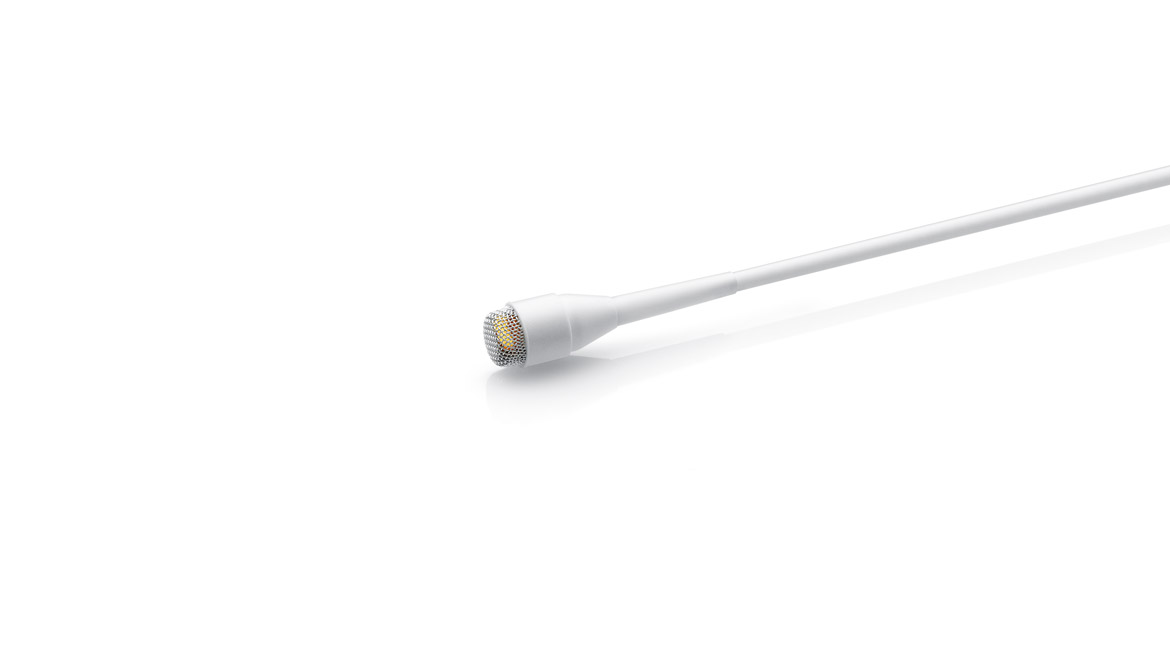

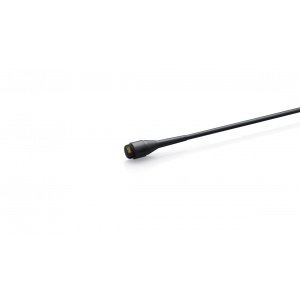

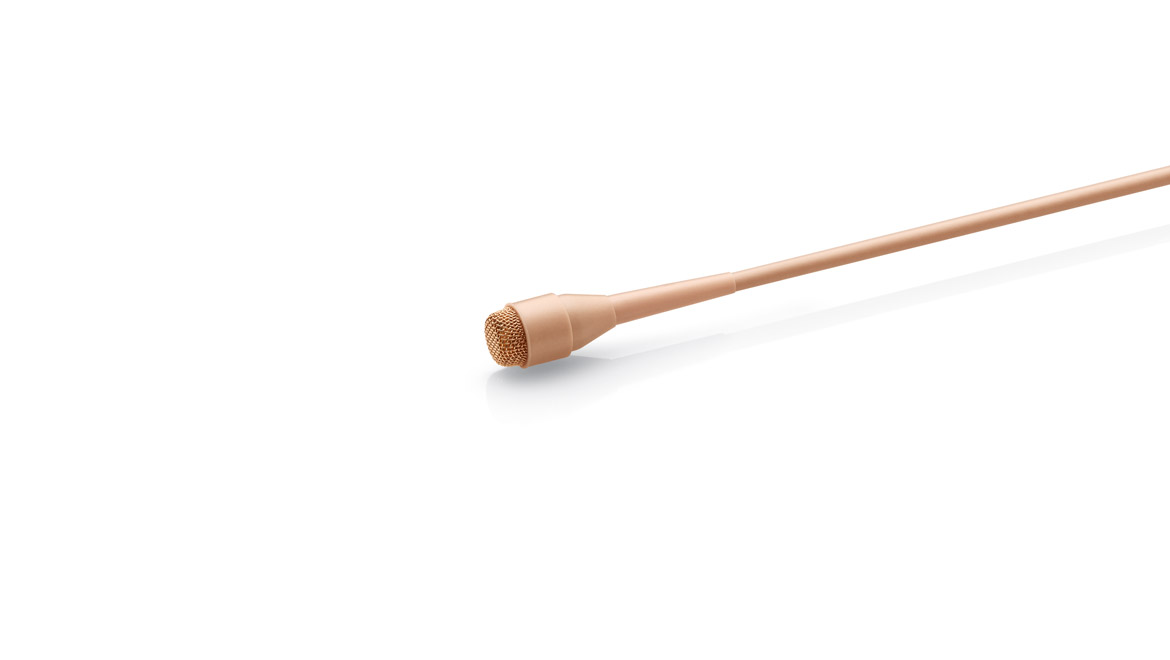

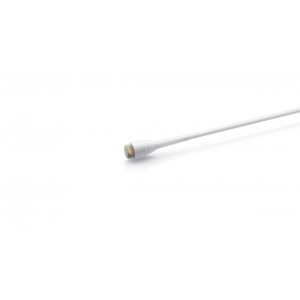

The 4060 Miniature Omnidirectional Micropone, Normal SPL is available in four colors: black, brown, beige and white. An even more robust, heavy-duty version is also available.

Features

Exceptional audio quality
Uniform, consistent sound between DPA mics
Extremely rugged and reliable
Diminutive size made for flexible and easy concealment
Large selection of clips, windscreens, grids and other accessories
Modular adapter system fits most professional wireless systems

Description

This series contains the 4060, 4061, 4062, 4063 and 4071 Omnidirectional Condenser Lavalier Mics. Each version is tailored towards a specific application based on sensitivity, voltage and placement needs. They are all based on the original 4060; the very first miniature microphone developed by DPA from the best technology previously only used in hearing aids and measurement microphones. All of the mics in the series share important basic features, but each is optimized for particular applications.

The series was developed to withstand the toughest of conditions. They contain a 5.4 mm diameter pre-polarized condenser element with a vertical diaphragm. This unique, Double Vent Protection System makes the mics greatly resistant to humidity and sweat. These mics are also designed with a Kevlar-reinforced cable relief, which is built to withstand the constant twists, bends and pulls that are part of the everyday use in harsh environments.

The acoustic response of the 4060 Series can be modified by selecting the correct grid for the job. Two grids are supplied with each microphone (not the 4071, which includes a fixed grid). The pre-fitted Soft Boost Grid gives a 3 dB soft boost at 8-20 kHz. It should be used when the microphone is mounted on the performer’s head as well as in most other applications where you need a natural-sounding microphone. When fitted, the High Boost Grid introduces a 10 dB soft boost around 12 kHz for applications where the microphones chest-placement is preferred. Both of these grids are made of anodized stainless steel, giving a tough and scratch resistant surface. They can be detached from the microphone and cleaned of sweat, makeup, etc.

Academy-honored miniatures

In 2021, the Academy of Motion Picture Arts and Sciences’ Board of Governors bestowed a Technical Achievement Award to DPA miniature microphones. The award is directed specifically to Jens-Jørn Stokholm and Ole Moesmann for the innovative development of high-performance miniature and subminiature DPA lavalier microphones.

An omnidirectional microphone has sensitivity at all angles – in principle picking up sound equally from all directions. This gives you extremely natural and realistic sound compared to a cardioid mic. Omni mics are often used for picking up ambient sounds, as well as miking a large sound source such as a choir in a recording situation. Unfortunately, due to their pickup pattern, omnis can also produce a lot of feedback in live situations.
Nonetheless, we recommend that you try a DPA omnidirectional condenser lavalier microphones first because, when used close to the sound source, the equal frequency response makes these mics a flexible addition in your audio toolbox. It will often give a more natural sound, it can handle extremely high sound pressure levels, it does not suffer from proximity effect and is not as sensitive to wind, pop or handling noise.

Tech Specs

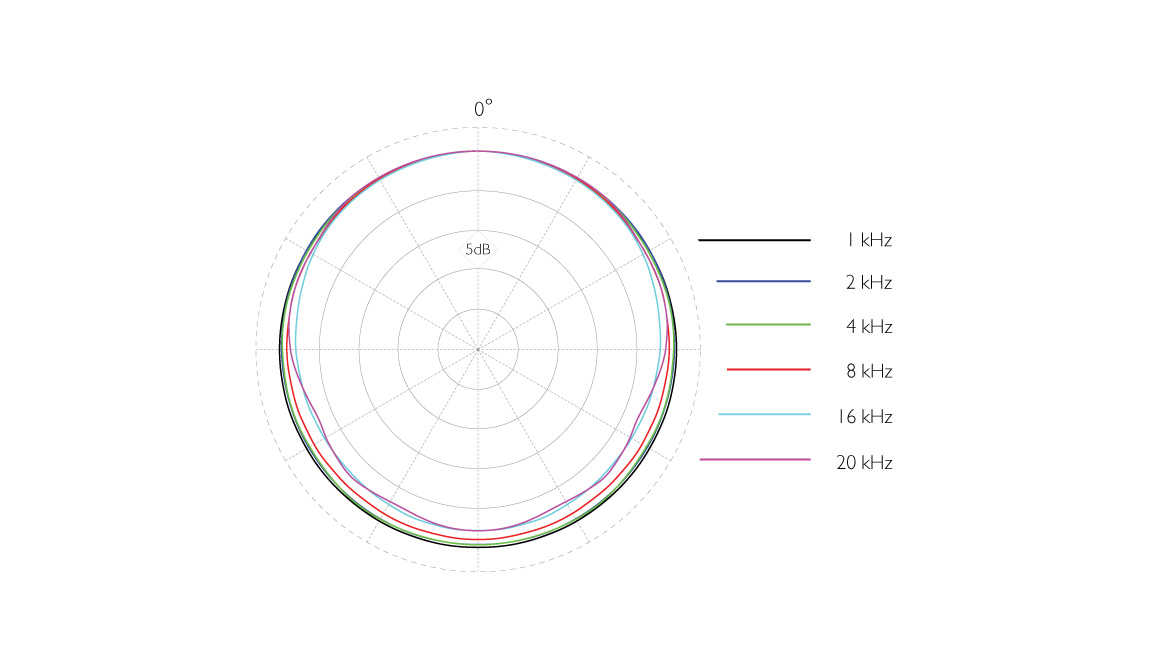

Directional pattern	Omnidirectional
Principle of operation	Pressure
Cartridge type	Pre-polarized condenser
Frequency response	20 Hz - 20 kHz
Effective frequency range ±2 dB	Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
Sensitivity, nominal, ±3 dB at 1 kHz	20 mV/Pa; -34 dB re. 1 V/Pa
Equivalent noise level, A-weighted	Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
Equivalent noise level, ITU-R BS.468-4	Typ. 35 dB (max. 38 dB)
Distortion, THD < 1% - Legacy	120 dB SPL RMS, 123 dB SPL peak
Distortion, THD < 1% - CORE	126 dB SPL RMS, 129 dB SPL peak
Dynamic range - Legacy	Typ. 100 dB
Dynamic range - CORE	Typ. 106 dB
Max. SPL, THD 10%	134 dB SPL peak
Rated output impedance	30 - 40 Ω
Cable drive capability	Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
Power supply (for full performance)	For wireless systems: Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
Current consumption	Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
Connector	MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
Color	Black, beige, brown or white
Weight	7.5 g (0.26 oz) incl. Cable and MicroDot connector
Microphone diameter	5.4 mm (0.21 in)
Microphone length	12.7 mm (0.5 in)
Cable length	1.8 m (5.9 ft)
Polarity	Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range	-40°C to 45°C (-40°F to 113°F)
Relative humidity (RH)	Up to 90%
Sensitivity selection tolerance (at 1 kHz)	±1.5 dB
