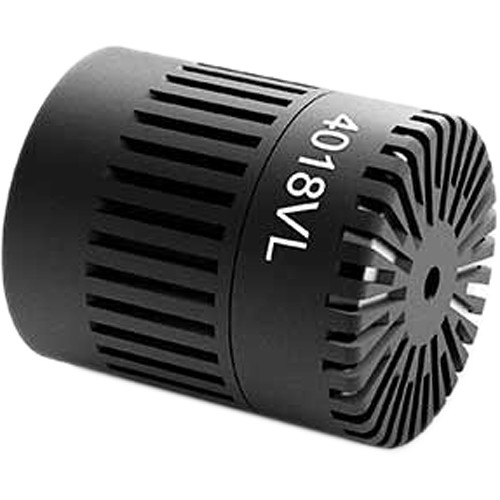

The d:facto MMC4018VL Linear Supercardioid Microphone Capsule for Vocal from DPA features an isolation-optimized polar pattern and is designed to augment the human vocal range. It can be used to capture speech and vocals in sound reinforcement applications such as for stage, recordings, and more.
Main Benefits
- Extremely Linear Frequency Response
- Tweaked for Close Miking Vocals
- Highly Directional for High Isolation
- Controlled Supercardioid Shape
- Superb Definition & Natural Response
Description
The MMC4018 Supercardioid Microphone Capsule has a highly directional supercardioid pickup pattern with a smooth and uniform off-axis frequency response.
The supercardioid shape is frequency independent, securing an identical sound color around the microphone. The usual rear lobe heard on most supercardioids is minimized on this capsule. This makes it much more isolated without sudden frequency dependent peaks and dips.
Designed for a broad range of long-distance broadcast, ENG and film miking applications, such as booming, dialogue, interview and table or podium use, the MMC4018 Supercardioid Microphone Capsule offers superb flexibility through modular accessories. The mic is also ideal for use as a spot or hanging mic for orchestra recording situations.
A truly flexible range
The MMC4018 capsule is part of the flexible d:dicate™ Microphone Series. You can combine the capsule with any of the preamplifiers in the d:dicate™ Microphone Series to fit your specific needs.
Tech Specs
Directional pattern: Supercardioid
Principle of operation: Pressure gradient
Cartridge type: Pre-polarized condenser
Frequency range: 20 Hz - 20 kHz
Frequency range, ±2 dB, at 30 cm (11.8 in): 40 Hz - 18 kHz
Sensitivity, nominal, ±2 dB at 1 kHz: 12 mV/Pa; -38.4 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 16 dB(A) re. 20 µPa (max. 19 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 23 dB
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 78 dB(A)
Microphone diameter: 19 mm (0.75 in)
Capsule diameter: 19 mm (0.75 in)
Microphone length: 23 mm (0.9 in)
Temperature range: -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH): Up to 90%
Matching tolerance (frequency response and sensitivity): ±1 dB
Phase deviation for kit: < 10°
