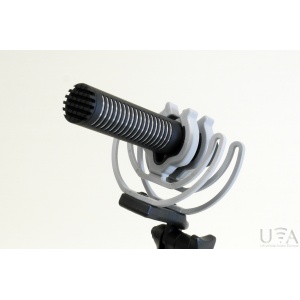

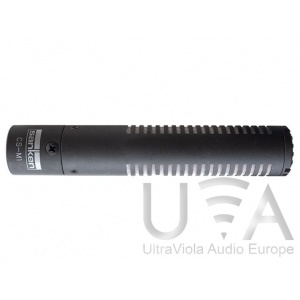

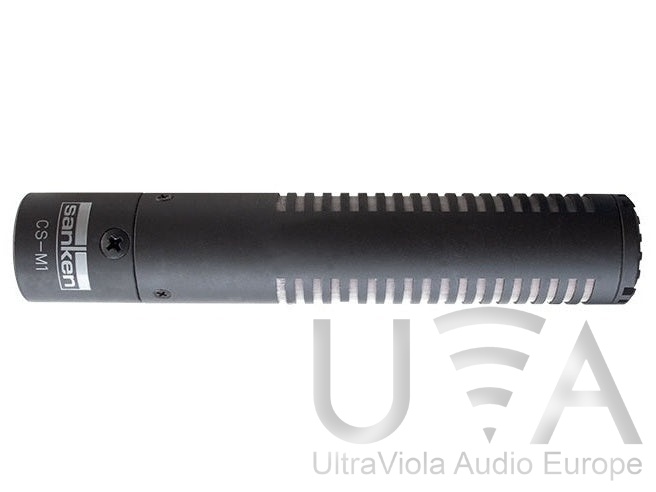

Sanken CS-M1 Short Shotgun Microphone

The CS-M1’s lightweight, durable design and unique components assure optimum resistance to humidity and adverse temperature changes.
The mic is especially suited to shoots where tight patterns and premium sound are the goal.
It can be camera mounted without even interfering with a short lens, whilst still providing the quality of audio required by today’s professionals.

• Feature
• Specifications
• Included Accessories
• Graphics
• Optional Accessories

Feature

・Ultra-short body length (103mm) and light weight (55g).
・Preserving sharp directivity and clear sound.
・Perfect solution, especially for cameras with short lens.
・Ideal for Boompole operation, recording in drama studio etc.

Specifications

Directivity	Super Cardioid / Lobar
Transducer	Back electret condenser
Frequency range	70Hz～20kHz
Sensitivity (nominal at 1kHz)	79mV/Pa (-22dB,0dB=1V/Pa)
Equivalent noise level (A-weighted)	16dB-A
Max SPL (1% THD)	137dB SPL
Output impedance at 1KHz	140ohms
Powering	+48V±4V　U.P.F
Current consumption	4mA
Weight	55g
Dimensions	103mm x 19mm(diameter)
Surface finish	matte black
Connector	XLR-3M

Included Accessories

Included Accessories01	Urethane wind screen
Included Accessories02	Measurement data
Included Accessories03	Instruction manual
Included Accessories04	Warranty card
Included Accessories05	Vinyl case

Graphics

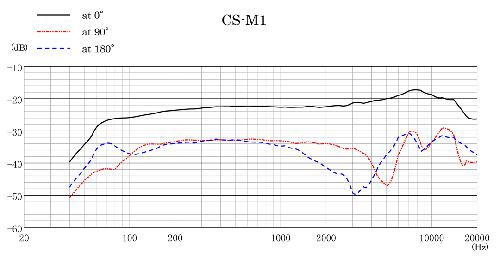

Frequency Response

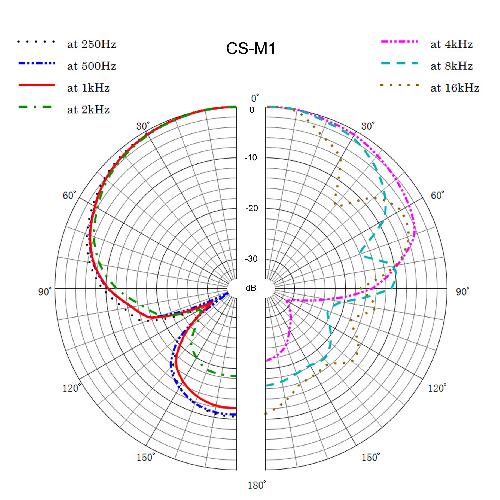

Polar Pattern

Optional Accessories

Trade name HG-1  Name Handgrip part only  Use CUW-180, WMS-5, CS-1e, CS-M1

Trade name GS-M1  Name Suspension  Use for CS-M1

Trade name WSJ-M1  Name Windjammer for WS-M1  Use for CS-M1 CMS-50

Trade name WS-M1  Name Cage windshield  Use for CS-M1 , CMS-50

Trade name WJ-M1  Name Windjammer  Use for CS-M1 , CMS-50

Trade name WM-M1  Name Urethane windscreen  Use for CS-M1
