A broadcast masterpiece

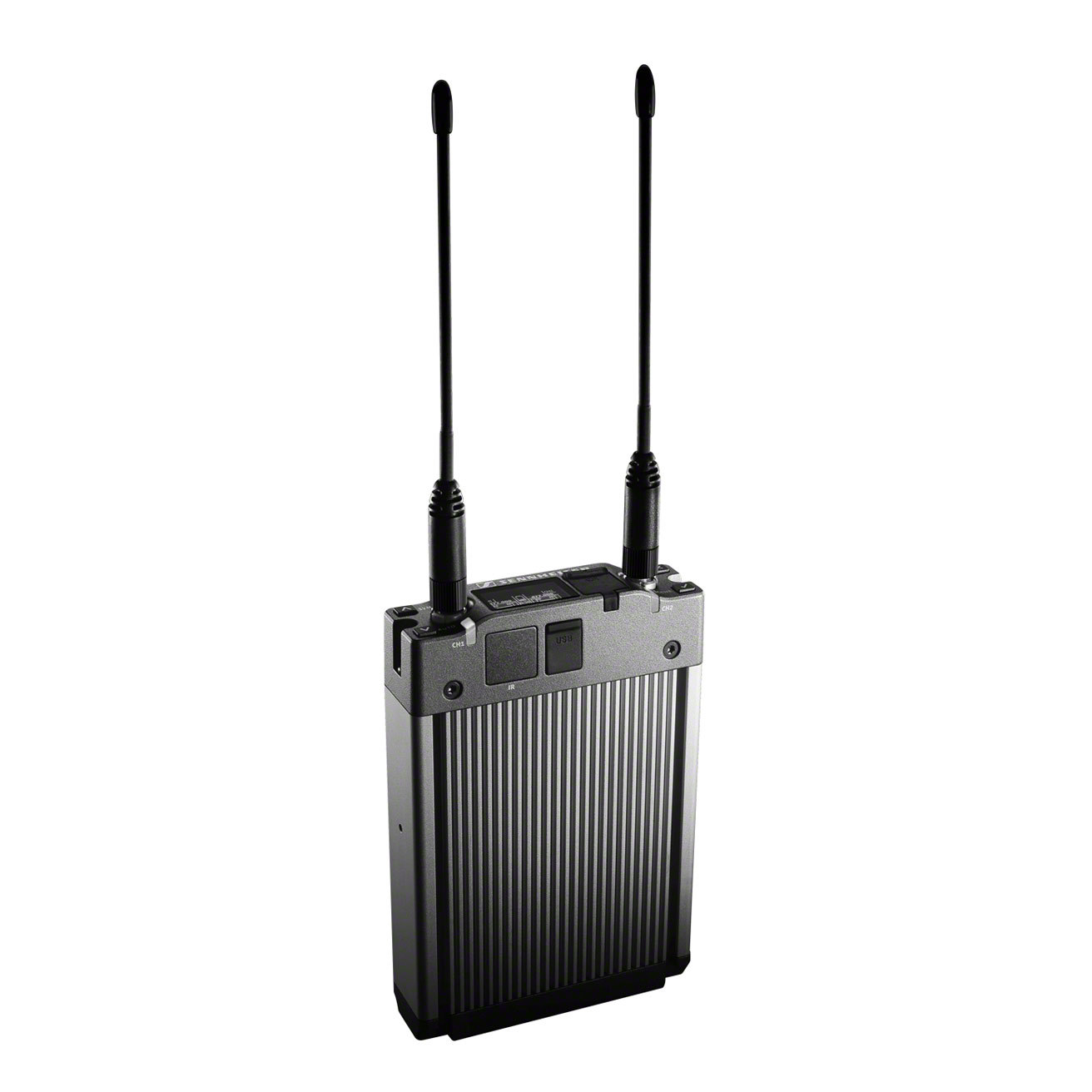

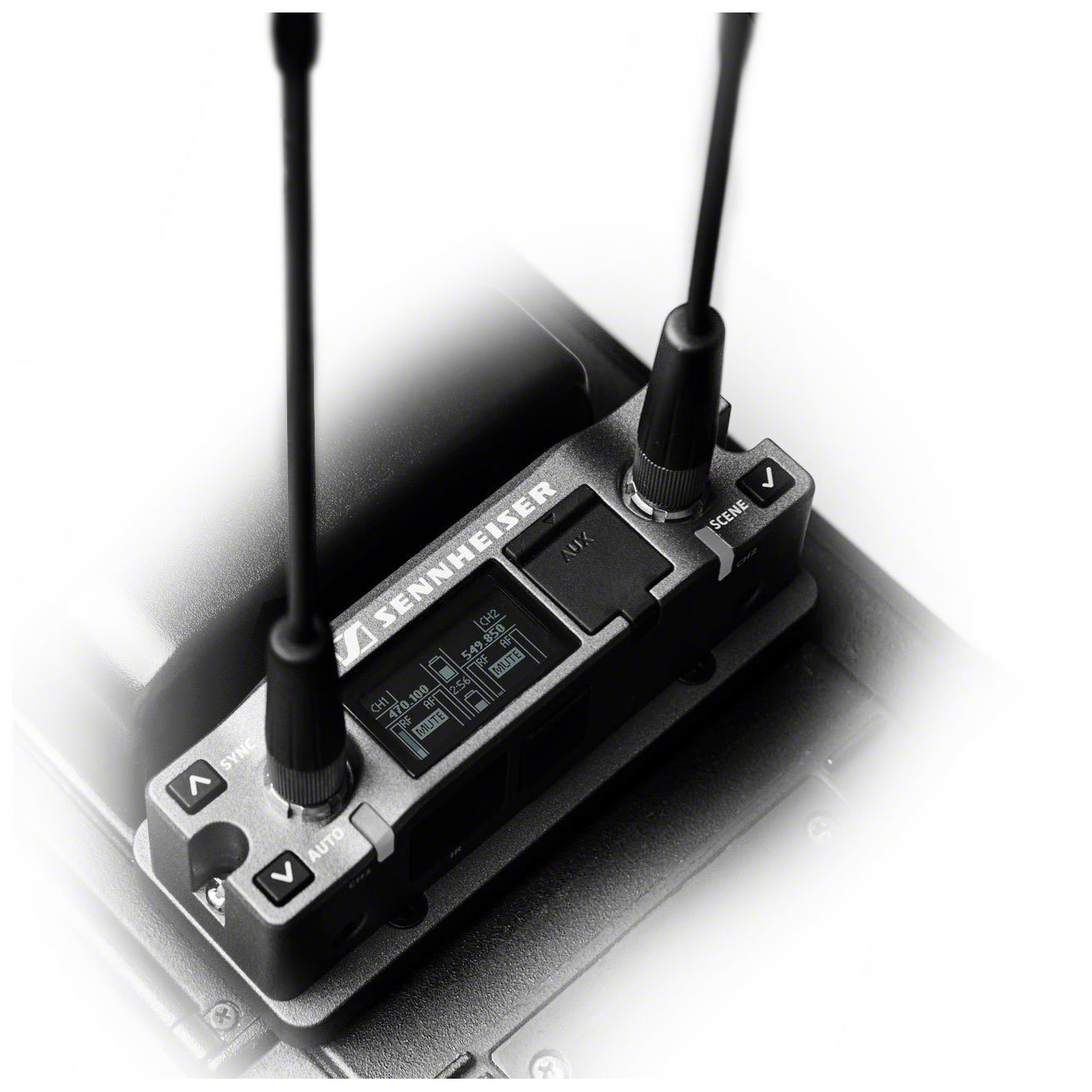

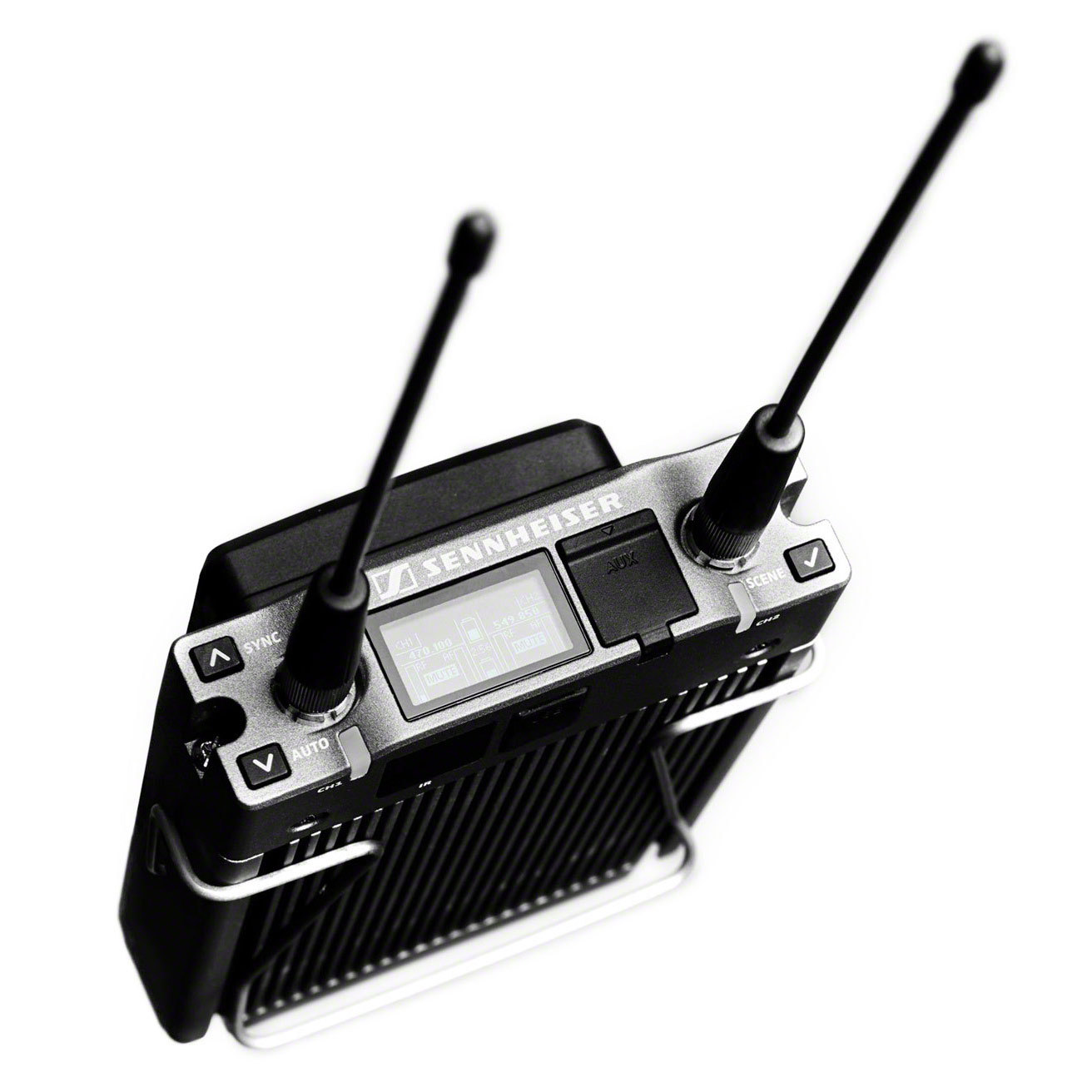

Sennheiser’s best performing analogue and digital receiver systems in one compact pack. The EK6042 two-channel camera receiver handles analogue and digital transmitters simultaneously.
-
- Frequency response
-
40 to 20,000 Hz (+/- 3.0 dB)
-
- THD, total harmonic distortion
-
typ. 0.03% (digital modulation) / typ 0.2% (wideband FM)
-
- Audio output
-
5-pin mini-XLR-M, balanced / MAIN 1 and 2, digital: 0 dBFs, AES3, 48 kHz, 24 bit / MAIN1 and 2, analogue: -22 dBu to +8 dB (adjustable) / AUX 1 and 2, analogue: -22 dBu to +8 dBu (adjustable)
-
- Switching bandwidth
-
184 MHz, in steps of 5 kHz
-
- Adjacent channel rejection
-
-
- Diversity reception
-
true diversity (2 x 2 receivers)
-
- Frequency range
-
-
- Sensitivity
-
< -90 dBm (digital modulation) / < -94 dBm (wideband FM) @ 52dB audio SNR
-
- Latency
-
3.0 ms (AES3, digital modulation) / 1.5 ms (AES3, wideband FM)
