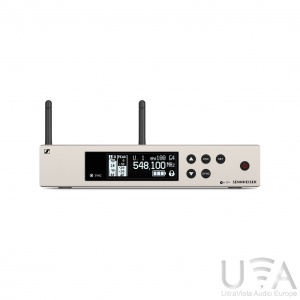

Sennheiser EM 100 G4-A1
True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control with evolution wireless G4 100 Series systems.
Features
-
True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control.
-
Easy and flexible wireless synchronization between transmitter and receiver via infrared
-
Fast frequency allocation for up to 12 receivers via new linking functionality
-
Up to 20 compatible channels
-
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
-
Transmission Range: up to 100 meters / 300 feet
-
High RF output power (up to 30 mW) depending on country regulations
Tech Specs
-
- Frequency range
-
-
- Dimensions
-
Approx. 190 x 212 x 43 mm
-
- Compander
-
-
- THD, total harmonic distortion
-
-
- Weight
-
-
- Audio output
-
6.3 mm jack socket (unbalanced): +12 dBu
XLR socket (balanced): +18 dBu
-
- Signal-to-noise ratio
-
-
- Switching bandwidth
-
-
- Peak deviation
-
-
- Nominal deviation
-
-
- Modulation
-
-
- Power supply
-
-
- Antenna connector
-
-
- Current consumption
-
-
- Adjacent channel rejection
-
-
- Intermodulation attenuation
-
-
- Receiving frequency
-
Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
-
- RF sensitivity
-
< 2.5 μV for 52 dBA eff S/N
-
- Squelch
-
low: 5 dBµV, middle: 15 dBµV, high: 25 dBμV
-
- Equalizer
-
Preset 2: Low Cut (-3 dB at 180 Hz)
Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
Preset 4: High Boost (+6 dB at 10 kHz)
-
- Temperature Range
-
-
- Receiver Principle
-
-
- Blocking
-
Contents
- EM 100 G4 true diversity receiver
- 2 rod antennas
- power supply
- RJ 10 cable
- rackmount set
- quick guide
- safety guide
- manufacturer declaration sheet
- frequency supplement sheet
