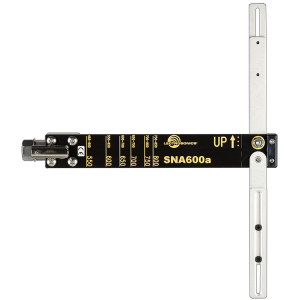

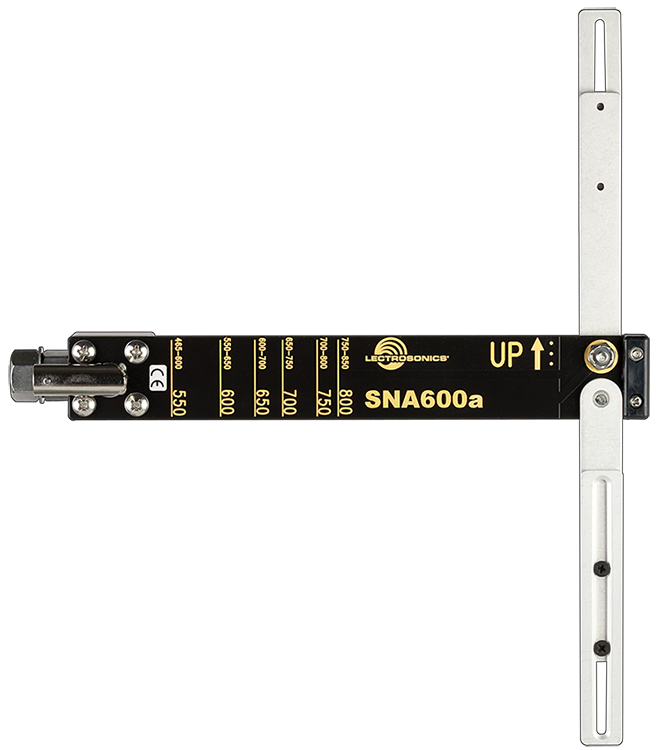

he Lectrosonics SNA600a Adjustable Dipole Antenna can be used with wireless microphone receivers or IFB transmitters. The antenna has a 100MHz bandwidth with a tunable center frequency between 550 and 800MHz. It can connect to your receiver or transmitter via its 50 ohm BNC connector and includes a 3/8" x 16 threaded socket and stud with a mounting strip for securing it to your equipment. The SNA600a itself is constructed of fiberglass circuit board material, can be folded for storage, and can be powered with antenna power enabled on your receiver or multicoupler.
Main Benefits
- For Wireless Receivers, IFB Transmitters
- 100MHz Bandwidth
- Tunable Center Frequency
- SWR Less Than 2:1 over 100MHz Bandwidth
- 50 Ohm BNC Connector
- Foldable for Storage
- 3/8" x 16 Threaded Socket
- Includes Mounting Strap
Tech Specs
| Impedance |
50 Ω |
| Connector |
BNC |
| SWR |
Less than 2:1 at +/- 50 MHz |
| Bandwidth |
3 dB: 150 MHz
Effective: 465 to 850 MHz |
| Gain |
2.7 dBi (isotropic) or 0 dBd (referenced to a dipole) |
| Antenna Power Blocking |
Capacitive coupling for use with DC power on cable |
| Length |
7" (177.8 mm) |
| Width |
1" (25 mm) folded, 7 to 11" (177.8 to 279 mm) extended, depending on frequency |
| Thickness |
1" (25 mm) |
| Weight |
3.5 oz (99 g) |
