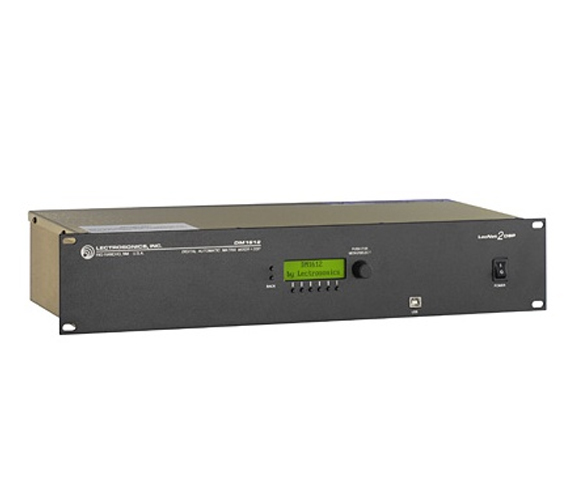

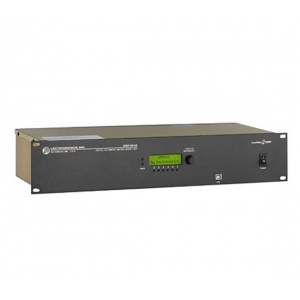

The DM1612 from Lectrosonics is a digital audio processor, that shares many of the DSP functions common in the marketplace, but with a very comprehensive routing system that allows any input to be patched to any single or multiple outputs simultaneously. Primary applications include sound reinforcement, boardroom conferencing, houses of worship, courtrooms and hotels. Any place which requires the use of multiple microphones and loudspeakers.
Main Benefits
- 16 mic/line inputs, 12 line outputs
(4 outputs are mic/line switchable)
- 16 x 12 digital matrix mixing; gain is adjustable from
-69 to +20 dB
- Proportional gain auto mixing algorithm with AutoSkew™
- US Patent 5,414,776 and 5,402,500
- Auto mixing operates at the output of the matrix - each input channel can participate differently in each output mix
- Each output has its own NOM mixing bus
- 6 filter stages plus compressor, ADFE and delay on each input
- 9 filter stages plus compressor, limiter and delay on each output
- 128 macros available for storing up to 64 commands per macro
- USB and RS-232 interfaces for setup and control
- Digital I/O ports for "daisy chaining" and to connect other LecNet 2 devices
- AMX© and CRESTRON™ compatible
- Simultaneous LecNet2 and Third-Party control
- Continuous fan cooling
Description
The DM1612f is a powerful digital audio processing, mixing and routing system. The primary applications are sound reinforcement and conferencing in boardrooms, courtrooms, worship centers, distance learning systems, hotels and other applications with multiple microphones and loudspeakers. The design represents a milestone in DSP technology in its basic architecture and in its processing speed and efficiency.
The basic architecture consists of 16 mic/line inputs and 12 outputs with a full DSP-based crosspoint matrix that allows every input to be routed to any or all outputs. Following the A-D conversion at each input, the signal passes through multiple DSP filters, ADFE (automatic digital feedback eliminator), a compressor and a digital delay. In the matrix, gain is adjustable from -69 to +20 dB in 1 dB steps at each crosspoint. Each of the 12 outputs provides a digital delay, multiple DSP filters and a compressor/limiter.
AMX® is a registered trademark of AMX Corp.
Crestron® is a registered trademark of Crestron Electronics, Inc.
Tech Specs
| Frequency Response |
20Hz to 20kHz, +/-1dB |
| Dynamic Range |
Input: 102dB, unweighted (20Hz to 20kHz)
Output: 105dB, unweighted (20Hz to 20kHz) |
| Inputs |
5-pin Phoenix connectors |
| Outputs |
5-pin Phoenix connectors |
| Input Impedance |
2.5kΩ |
| Output Impedance |
50Ω differential line level only |
| Maximum Input Level |
+20dBu @ 0dB gain |
| Maximum Output Level |
+20dBu |
| Sample Rate |
48kHz |
| Phantom Power |
+15VDC |
| Crosstalk |
Not specified by manufacturer |
| THD + N |
0.02%, nominal input level |
| Dimensions (WxDxH) |
19 x 7.5 x 3.5" (483 x 191 x 89mm) |
| Weight |
5.25 lb (2.38kg ) |
| Specialties |
Matrix mixing allows "mix-minus" routing to reduce acoustic feedback and eliminate echoes caused by speaker/microphone coupling in teleconferencing applications |
Contents
- 1 - Power Cord (Part #21499)
- 1 - Interconnect Cable - Black (Part #21529-1)
- 1 - Interconnect Cable - Red (Part #21710-1)
- 2 - 25-Pin Female Connectors (Part #21558)
- 14- 5-Position Plug (Part #21580)
- 1 - USB Cable (Part #21713)
- 2 - CAT5 Cable (Part #21716)
- 1 - Adjustment Tool (Part #35679)
- 1 - LecNet2 Software CD
- 1 - Manual
