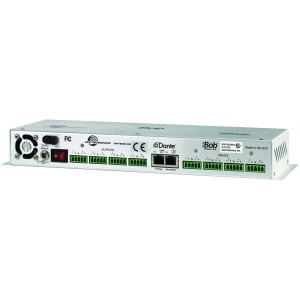

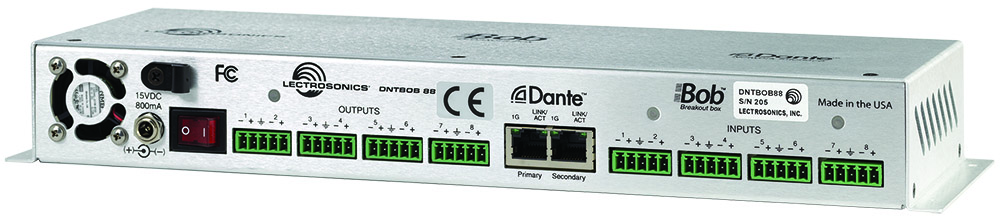

The DNTBOB 88 from Lectrasonics is a high quality, general purpose interface for transmitting and receiving line level analog audio signals via a Dante network. Analog inputs are converted to digital and appear on the network as transmit channels.
Main Benefits
- 8 Input/8 Output
- Balanced Line Levels
- 8 Dante Network Inputs and Outputs
- Uses Standard Ethernet Hardware
- Gigabit Compatible
- AVB Ready
Description
Audio on the analog outputs is available from other source that input to the transmit channels on the network. When connected to a network, each break out box will appear as a separate device in the Dante Controller software interface.
Tech Specs
| Sample Rates |
48 kHz |
| Network Interface |
Dante |
| Analog Inputs |
Type: Floating balanced
Level: 0.0 dBu, 20 dB headroom
Impedance: 15 kΩ (differential), 3.75 kΩ (common)
Connector: 4 x 5-pin Phoenix |
| Analog Outputs |
Type: Floating balanced
Level: 0.0 dBu, 20 dB headroom
Impedance: 50 kΩ
Connector: 4 x 5-pin Phoenix |
| Latency |
Analog In to Dante Network: 0.721 ms
Dante Network to Analog Out: Network latency + 0.521 ms |
| THD + N |
0.02%, analog in to analog out |
| Frequency Response |
20 Hz to 20 kHz, +/-0.1 dB |
| Gain |
0.0 dB, +/-1.0 dB (input to output) |
| Operating temperature |
-36 to +90°F (-20 to +50°C) |
| Power Requirements |
15 VDC, 800 mA |
| Dimensions (WxDxH) |
13.4 x 4.6 x 1.7" (339.0 x 117.0 x 44.0 mm) |
| Weight |
1.4 lb (0.6 kg) |
Contents
- 1 - Power Cord (Part #21499)
- 1 - 25-pin Connector (Part #21558)
- 8 - 5-position Plug (Part #21580)
- 1 - USB Cable (Part #21713)
- 1 - Adjustment Tool (Part #35679)
- 1 - DNT Software CD
- 1 - Manual
