DPA 4061 CORE Omnidirecetional Microphone, Loud SPL
This microphone is acoustically identical to the 4060 Miniature Omnidirectional Microphone, Normal SPL, but its sensitivity is adjusted to accommodate higher sound pressure levels (SPLs).
The 4061 Miniature Omnidirectional Microphone, Loud SPL can handle SPL up to 144 dB peak before clipping, making it one of the best miniatures for use on very loud sound sources, such as some instruments and human voices.
In comparison, the 4061 is about 10 dB less sensitive than the 4060 and therefore works well when used for hidden applications, for example mounted on the head or forehead of a theater performer. In this placement, the sound pressure level is about 10 dB louder than what you encounter with chest placement (lapel microphone).

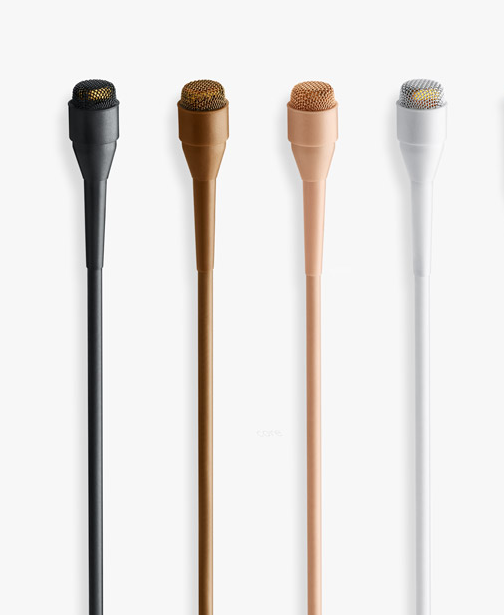

This mic is available in four colors: black, brown, beige and white. An even more robust, heavy-duty version is also available.
Features
- Exceptional audio quality
- Uniform, consistent sound between DPA mics
- Extremely rugged and reliable
- Diminutive size made for flexible and easy concealment
- Large selection of clips, windscreens, grids and other accessories
- Modular adapter system fits most professional wireless systems
Description
This series contains the 4060, 4061, 4062, 4063 and 4071 Omnidirectional Condenser Lavalier Mics. Each version is tailored towards a specific application based on sensitivity, voltage and placement needs. They are all based on the original 4060; the very first miniature microphone developed by DPA from the best technology previously only used in hearing aids and measurement microphones. All of the mics in the series share important basic features, but each is optimized for particular applications.
Nonetheless, we recommend that you try a DPA omnidirectional condenser lavalier microphones first because, when used close to the sound source, the equal frequency response makes these mics a flexible addition in your audio toolbox. It will often give a more natural sound, it can handle extremely high sound pressure levels, it does not suffer from proximity effect and is not as sensitive to wind, pop or handling noise.
Tech Specs
|
Directional pattern
|
Omnidirectional
|
|
Principle of operation
|
Pressure |
|
Cartridge type
|
Pre-polarized condenser
|
|
Frequency response
|
20 Hz - 20 kHz
|
|
Effective frequency range ±2 dB
|
Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
|
|
Sensitivity, nominal, ±3 dB at 1 kHz
|
6 mV/Pa; -44 dB re. 1 V/Pa
|
|
Equivalent noise level, A-weighted
|
Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
|
|
Equivalent noise level, ITU-R BS.468-4
|
Typ. 38 dB (max. 40 dB)
|
|
Distortion, THD < 1% - Legacy
|
120 dB SPL RMS, 123 dB SPL peak
|
|
Distortion, THD < 1% - CORE
|
134 dB SPL RMS, 137 dB SPL peak |
|
Dynamic range - Legacy
|
Typ. 97 dB
|
|
Dynamic range - CORE
|
Typ. 111 dB |
|
Max. SPL, THD 10%
|
144 dB SPL peak |
|
Rated output impedance
|
30 - 40 Ω |
|
Cable drive capability
|
Up to 300 m (984 ft) with DAD6001-BC XLR Adapter |
|
Power supply (for full performance)
|
For wireless systems: Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
|
|
Current consumption
|
Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter |
|
Connector
|
MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack |
|
Color
|
Black, beige, brown or white |
|
Weight
|
7.5 g (0.26 oz) incl. Cable and MicroDot connector |
|
Microphone diameter
|
5.4 mm (0.21 in) |
|
Microphone length
|
12.7 mm (0.5 in) |
|
Cable length
|
1.8 m (5.9 ft) |
|
Polarity
|
Positively increasing sound pressure produces positive going voltage on MicroDot pin
|
|
Temperature range
|
-40°C to 45°C (-40°F to 113°F)
|
|
Relative humidity (RH)
|
Up to 90%
|
|
Sensitivity selection tolerance (at 1 kHz)
|
±1.5 dB
|

Typical response of a d:screet™ 4061

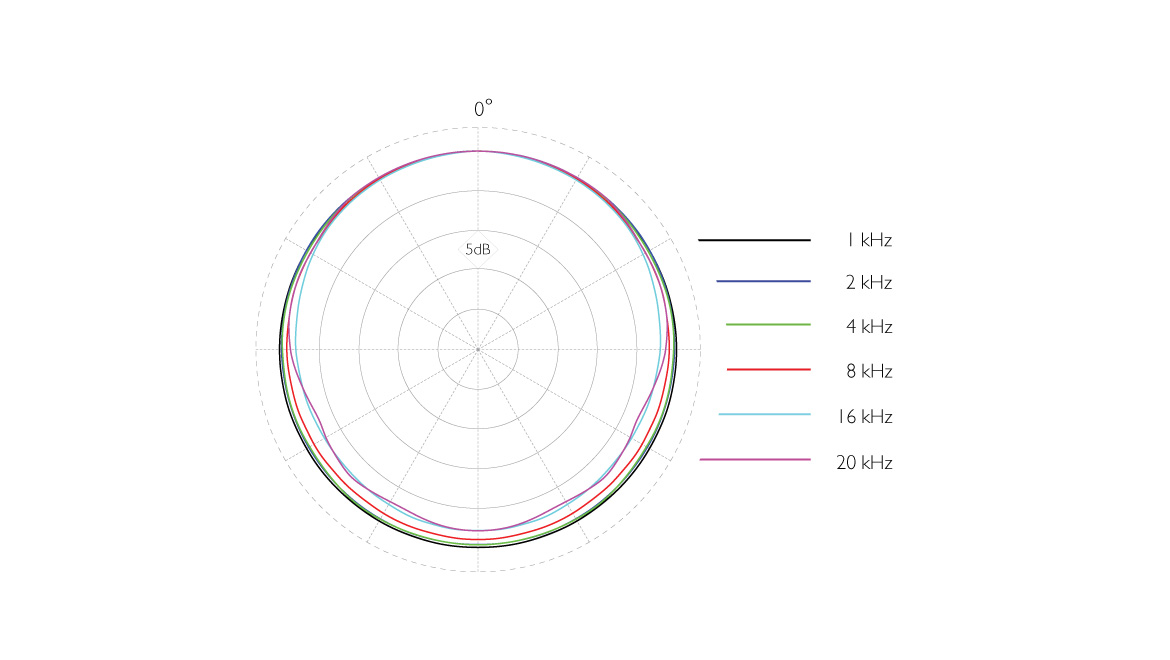

Typical directional characteristics of a 4061
Specifications
| 1-2 workdays |
