LR Miniature Digital Hybrid Receiver, 75 MHZ Tuning Range, 2 AA (Specify A1, B1, C1 frequency range)

Name: LR Miniature Digital Hybrid Receiver, 75 MHZ Tuning Range, 2 AA (Specify A1, B1, C1 frequency range)
Brand: Lectrosonics
SKU: LR
Price: 1795.20 EUR
Availability: InStock
Rating: 5 (1 reviews)

1.795,20 €
(2.279,90 € incl. VAT)

Frequency Block

–

Add to cart

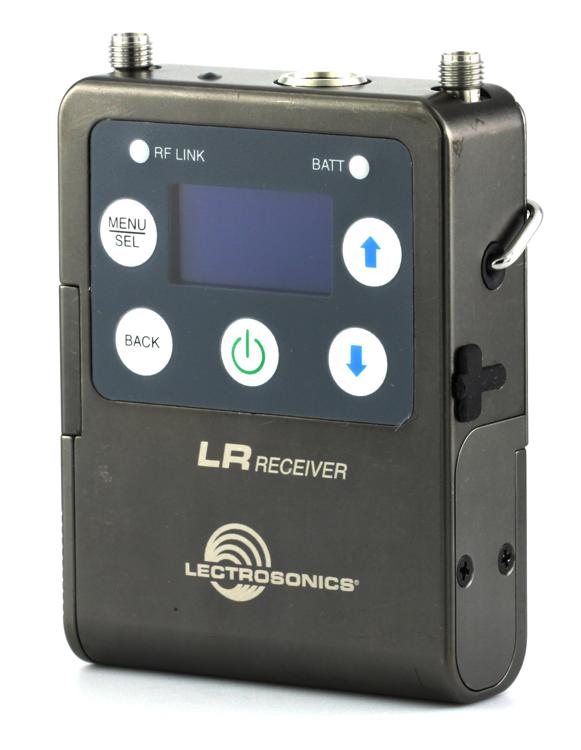

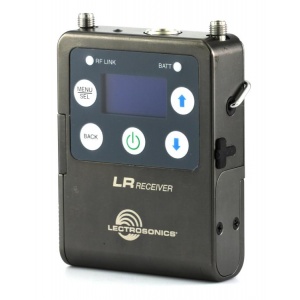

The LR Wireless Receiver from Lectrosonics is a digital hybrid ultra-compact portable wireless bodypack receiver with 75 MHz tuning bandwidth and with tracking front-end filters. When paired with a transmitter and microphone it can be used to capture audio in environments for applications such as broadcast TV, video production, ENG field work, and more.

Main Benefits

For Broadcast, EFP and ENG Applications
75 MHz Tuning Range
Digital Hybrid Wireless
Diversity Reception
Tracking Front-End Filters
2x Detachable Antennas
LCD Backlit Screen
Rugged Machined-Aluminum

Description

Excellent performance in a small package for ENG and DSLR video production is the purpose and intent of the LR receiver design. Tracking front-end filters block interference from high powered RF signals on nearby channels to preserve the extended operating range. RF spectrum scanning displays accurate results on the LCD to make finding clear spectrum quick and easy.

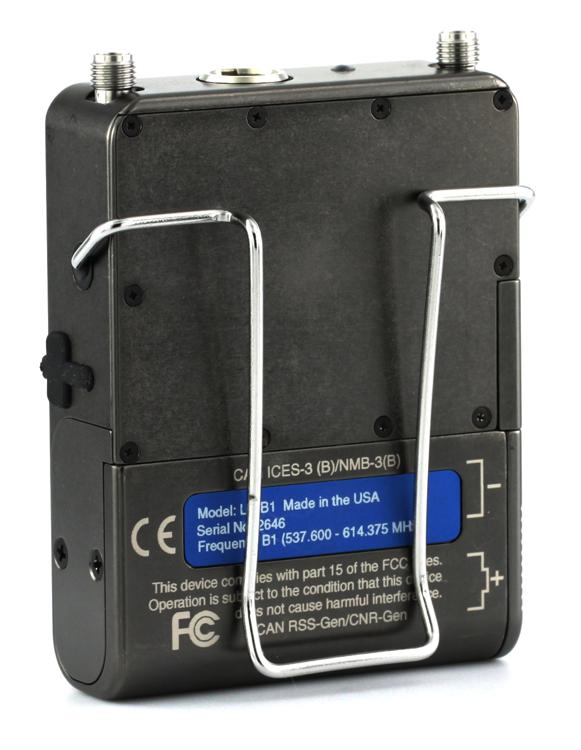

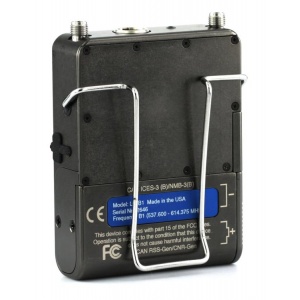

The receiver is powered by internal AA batteries or with an optional battery eliminator. The top panel includes an IR port for transmitter setup. Firmware updates are enabled via a USB port on the side panel. The housing is made from a solid machined aluminum billet.

Tech Specs

Frequency Selection Steps	Selectable 25 or 100 kHz
Receiver Type	Dual conversion, superheterodyne
IF Frequency	243.950 MHz and 250.000 kHz
Frequency Stability	± 0.001%
Front End Bandwidth	20 MHz @ -3 dB
Sensitivity	20 dB SINAD: 1.0 uV (-107 dBm), A weighted 60 dB Quieting: 2.2 uV (-100 dBm), A weighted
Squelch Quieting	> 100 dB typical
Modulation Acceptance	+/-100 kHz max. varies with selected compatibility mode
Image and Spurious Rejection	85 dB
Third Order Intercept	0 dBm
Diversity Method	SmartDiversity phased antenna combining
FM Detector	Digital pulse counting detector
RF Spectrum Analyzer	Single and multiple block scanning modes with coarse and fine views of results
Antenna Inputs	2x 50 ohms SMA female connectors
Audio Output	1x TA3 male (mini XLR) balanced output
Audio Output Level	Adjustable -50 to +5 dBu in 1 dB steps, unbalanced output level is 6 dB lower
Front Panel Controls	Sealed panel with membrane switches LCD for setup menus and monitoring
Audio Test Tone	1 kHz, -50 dBu to +5 dBu output (balanced), 1% THD
Transmitter Battery Type Selection	AA alkaline or lithium Timer available for use with alkaline, lithium and HiMH
Audio Polarity Selection	Normal or inverted
Compatibility Modes	Digital Hybrid (North American and European) Lectrosonics 100, 200 and 300 series Lectrosonics IFB Non-Lectrosonics modes 3, 6 an 7 (contact the factory for details)
SmartNR (Noise Reduction)	Off, Normal, Full modes (available in Digital Hybrid mode only)

Audio Performance
Frequency Response	32 Hz to 20 kHz (+/- 1 dB) receiver only (see transmitter documentation for overall system response)
Total Harmonic Distortion (THD)
Top Panel Features	1 x TA3M audio output jack 2 x SMA antenna jacks 1 x IR (infrared) port
Battery / Runtime	4 hours, AA alkaline
Operating Temperature	-4 to 32 °F (-20 to +50°C)
Dimensions (L x W x H)	3.21 x 2.45 x 0.84" (82 x 62 x 21 mm)
Weight	6.54 oz (185.4 g) with two AA lithium batteries
