The M2T/E01 IEM Digital Half-Rack Transmitter with Dante from Lectrosonics features transmission power up to 50 mW for extended operating range and locking XLR/TRS combo connectors, that facilitate up to four channels of analog audio sources. The Dante connection is equipped with two RJ45 connectors, four audio RX channels, and is internally routable. With ultra-low latency, 24-bit audio, and two stereo-digital channels, the M2T is an IEM transmitter for professional broadcast applications.
Main Benefits
- IEM (Wireless Monitor) with digital RF transmission
- 24-bit digital audio
- 2 independent stereo audio transmissions per 1/2 RV enclosure
- USB port for firmware updates
- Fully Dante™ compatible
- IR (infrared) port for fast setup
- Up to 50 mW per Rf carrier
- All metal housing
- Compatible with Wireless Designer™ Software
Description

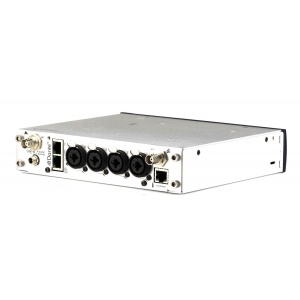

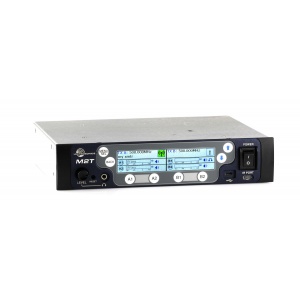

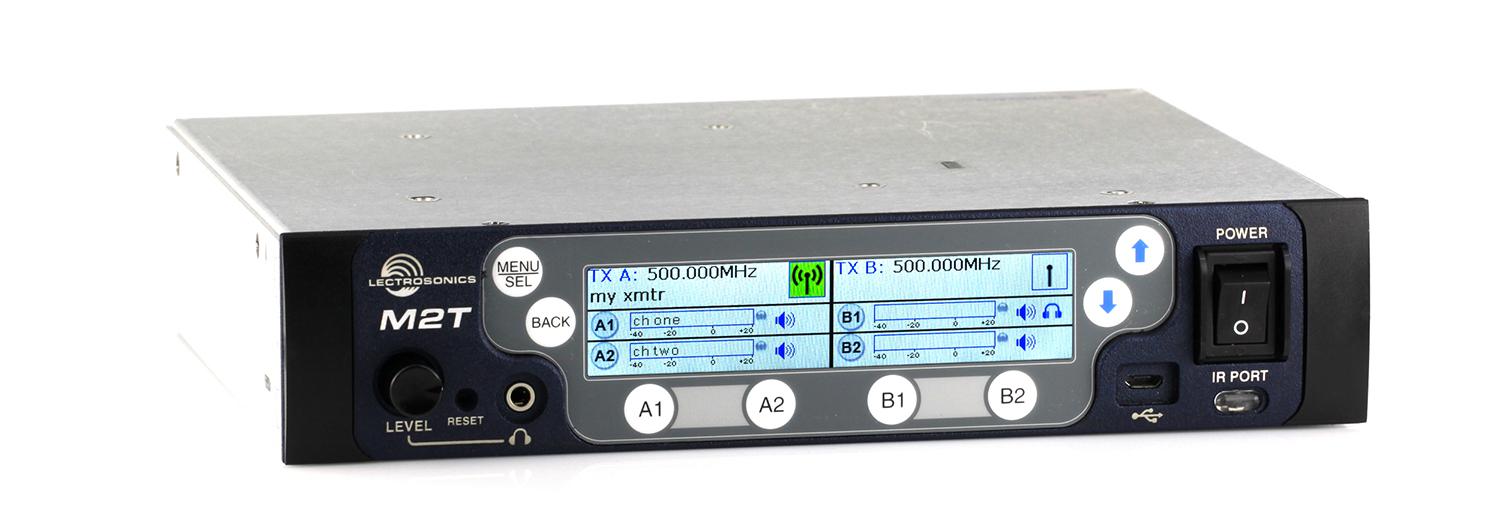

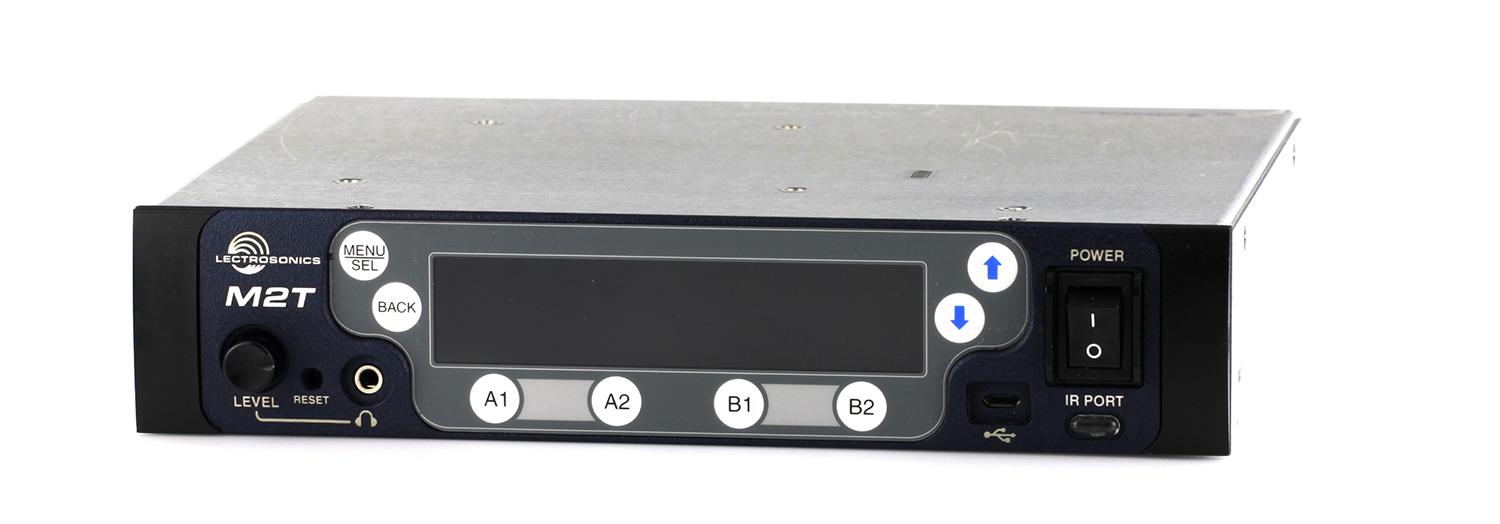

The M2T half-rack transmitter houses two stereo transmitters to provide two stereo audio channels, and for up to four mono audio channels in a single rack space. The audio inputs can be individually configured to be analog or Dante compatible. The analog input connectors are full-size XLR/TRS combo types for balanced line-level analog signals while the input preamp circuits use a special balanced amplifier with very high common mode rejection to minimize hum and noise. A Dante™ Ultimo™ interface via dual RJ45 connectors accepts Dante networked audio inputs and can daisy chain the digital stream to additional units via CAT6 cables. An additional RJ45 jack provides an Ethernet connection for programming and control via Wireless Designer™ software and a USB jack on the front panel allows for firmware updates. The transmitter features a full color, backlit LCD for high visibility in any environment, while the chassis is all-metal and can be racked singly or in pairs using included rack mount hardware.
Tech Specs
| RF Power Output |
2 x RF carriers, 2 audio channels each
10, 25, or 50 mW; adjustable |
| Antenna Output |
2 x BNC sockets |
| Operating Frequencies |
470 to 608 MHz |
| Frequency Selection Steps |
25 kHz |
| Frequency Stability |
± 0.002% |
| Modulation |
8 PSK |
| Emission Designator |
200KG7E |
| Spurious Radiation |
Compliant with ETSI EN 300 422-1 |
| Equivalent Input Noise |
-128 dBV |
| Audio Frequency Response |
20 Hz to 15 kHz |
| Audio Input |
-10 dBV or +4 dBu settings with ±5 dB trim |
| Audio Input Jack |
4 x combo XLR/TRS connectors |
| Dante Connection |
2 x RJ45, 4 audio channels |
| Ethernet Connector |
RJ45 |
| USB |
Micro USB on front panel for firmware updates |
| IRDA |
IR transceiver for sync of receivers |
| Input Impedance |
Line: 2 kOhms |
| Headphone Jack |
1/8" / 3.5 mm stereo |
| Power Requirements |
9 to 18 VDC |
| Power Consumption |
5 W |
| Dimensions (H x W x D) |
1.8 x 8.4 x 7.8" / 4.4 x 21.3 x 19.7 cm |
Contents
- 21926 Cable USB
- 25990 Bracket Rear Tie M2T/M4T
- 25991 Bracket Front Tie M2T/M4T
- 27076 Rack Flange Bracket
- 27082 Rack Handle RMP2T
- 4 - 28885 SCR10 Cap Screw
- 4 - 35664 Rubber Foot (Large)
- 35800 Hex L Key Wrench
- 35959 Hole Plug
- 2 - A500RA20 Antenna
- DCR15/4AU DC Power Supply
- Instruction Manual
