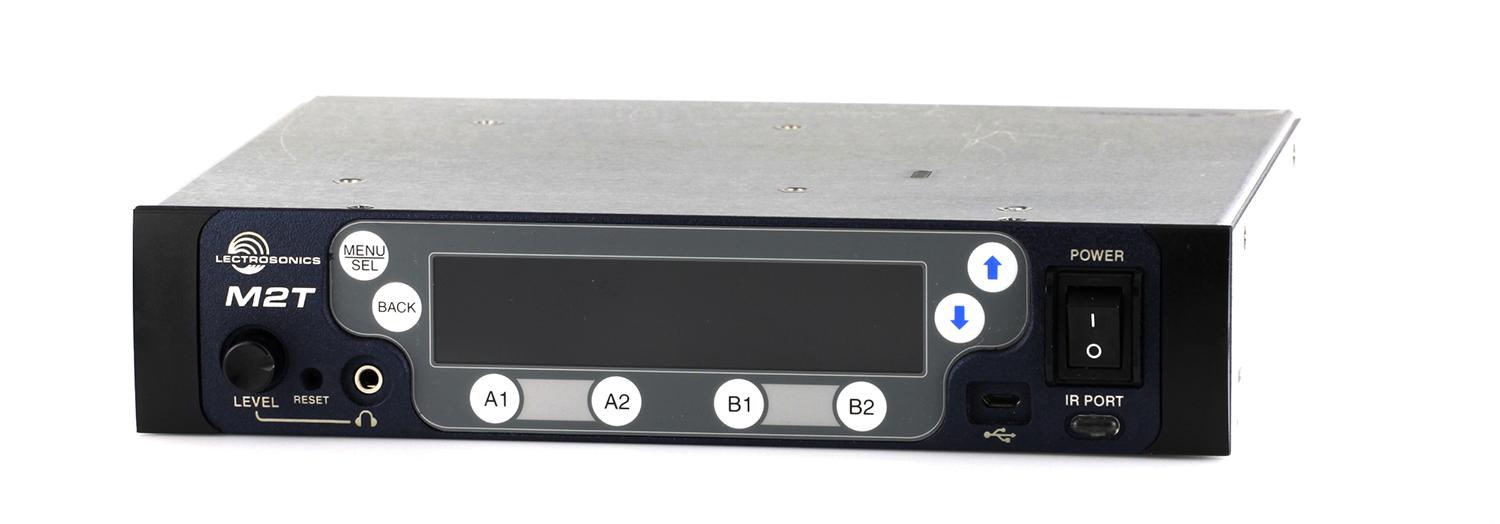

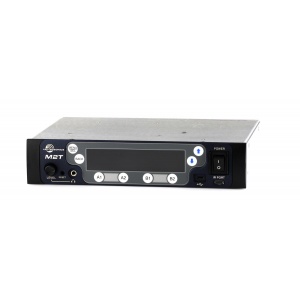

The M2TND/E01 IEM Digital Half-Rack Transmitter from Lectrosonics features transmission power up to 50 mW for extended operating range and locking XLR/TRS combo connectors, that facilitate up to four channels of analog audio sources. With ultra-low latency, 24-bit audio, and two stereo-digital channels, the M2TND/E01 is an IEM transmitter for professional broadcast applications.
Main Benefits
- IEM Wireless Monitor with Digital RF
- 24-Bit Digital Audio
- USB Port for Firmware Updates
- Analog Inputs
- IR (Infrared) Port for Fast Setup
- Up to 50 mW per RF Carrier
- All Metal Housing
- Works with Wireless Designer Software
- 2 independent stereo audio transmissions per 1/2 RV enclosure
- IEM (Wireless Monitor) with digital RF transmission
Description

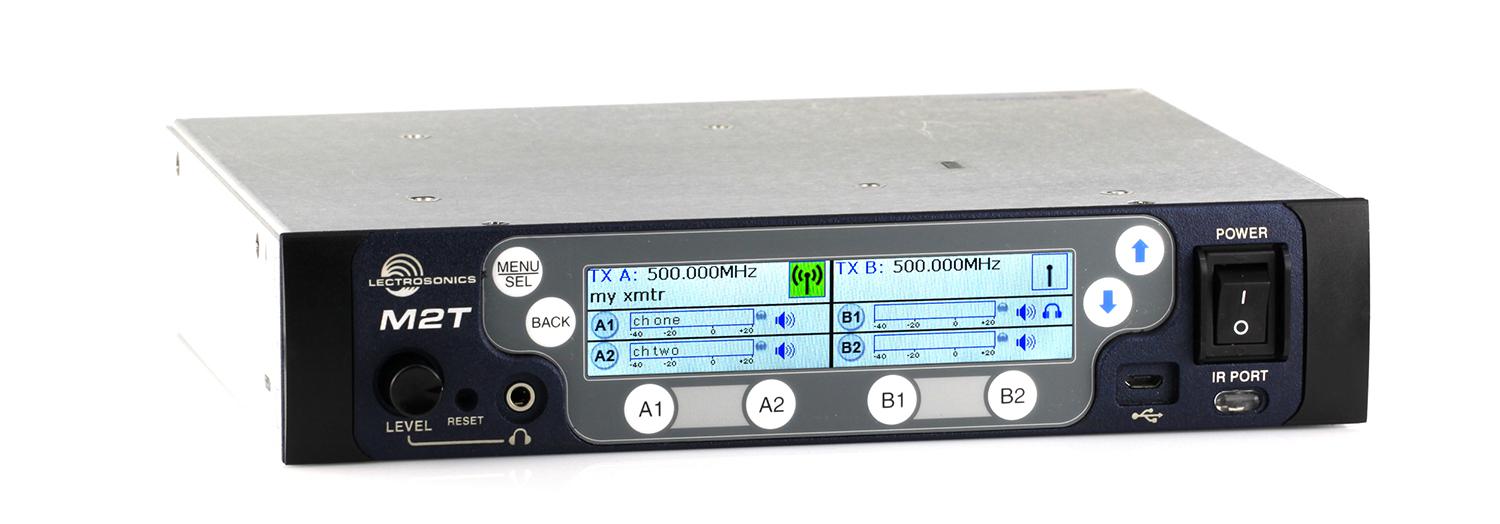

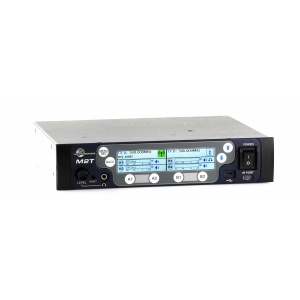

Built with a USB port for firmware updates and an IR port for fast setups, the M2T transmitter has a large, high-resolution backlit color LCD with large membrane switches for an intuitive interface visible in daylight or dimly-lit conditions. Analog signals are converted to an internal 24-bit digital format that is encoded, organized into packets, and passed to an RF modulator. The RF signal is filtered before and after amplification to suppress out-of-band noise and spurious signals.
Additionally, the M2T transmitter employs a technology that provides a frequency response from 20 Hz to 15 kHz with maximum channel separation. This digital audio technology eliminates a compandor and the associated artifacts, resulting in crystal clear sound, rock-solid stereo imaging, and low distortion.
Tech Specs
| RF Power Output |
2 x RF carriers, 2 audio channels each
10, 25, or 50 mW; adjustable |
| Antenna Output |
2 x BNC sockets |
| Operating Frequencies |
470 to 608 MHz |
| Frequency Selection Steps |
25 kHz |
| Frequency Stability |
± 0.002% |
| Modulation |
8 PSK |
| Emission Designator |
200KG7E |
| Spurious Radiation |
Compliant with ETSI EN 300 422-1 |
| Equivalent Input Noise |
-128 dBV |
| Audio Frequency Response |
20 Hz to 15 kHz |
| Audio Input |
-10 dBV or +4 dBu settings with ±5 dB trim |

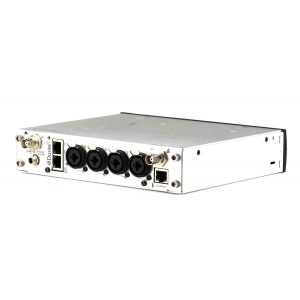

| Audio Input Jack |
4 x combo XLR/TRS connectors |
| Dante Connection |
Not applicable |
| Ethernet Connector |
RJ45 |
| USB |
Micro USB on front panel for firmware updates |
| IRDA |
IR transceiver for sync of receivers |
| Input Impedance |
Line: 2 kOhms |
| Headphone Jack |
1/8" / 3.5 mm stereo |
| Power Requirements |
9 to 18 VDC |
| Power Consumption |
5 W |
| Dimensions (H x W x D) |
1.8 x 8.4 x 7.8" / 4.4 x 21.3 x 19.7 cm |
