From small installations all the way up to sophisticated, multi-layered systems, the ASPEN mixers are the perfect compliment to your audio integration. Unlimited input expansion and 48 mix buses give you phenomenal scalibility. The Proportional Gain Algorithm provides seamless auto-mixing and integrates easily with with echo cancellation, analog mixing consoles, or any other type of audio system. And with TCP/IP addressibility for control through Ethernet, ASPEN is now part of your network. Any way you look at it, the ASPEN line from Lectrosonics is your new choice in professional DSP audio processing systems.
Main Benefits
- Ultra low noise input preamps
- Full crosspoint matrix with 48 outputs
- Unlimited input expansion
- TCP/IP Ethernet addressable
- Seamless auto-mixing with PGA™ at the matrix crosspoints
- Simultaneous multi-point 3rd party and native control
- Ultra-low latency
- Automatic Master/Slave detection
- Single CAT6 interconnection carries data, audio and control signals
Tech Specs

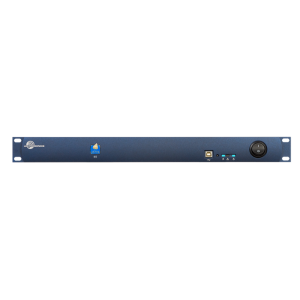

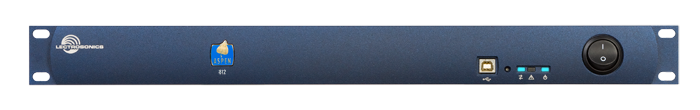

Specifications for SPN812 Unit:
Matrix: 48 mix buses with full output matrixing
ASPEN port: 1Gbs control and audio data between ASPEN units
Inputs:
SPN812: 8 mic/line
SPN1612, 1624: 16 mic/line
SPN2412: 24 mic/line
Gain: 0 dB to 56 dB, programmable in 8 dB steps
Input Level: 0 dBu nominal, max 20dBu
Input impedance: 8 k Ohms differential mode, 2 k Ohms common mode
Phantom power: True 48 Volt
Outputs:
SPN812, 1612:
1-8 line level (0 dBu),
9-12 mic/line level (0, -20, -40 dBu)
SPN1624:
1-8 line level (0 dBu),
9-12 mic/line level (0, -20, -40 dBu)
13-19 line level (0 dBu)
20-24 mic/line level (0, -20, -40 dBu)
Output Level: 0 dBu nominal, max 20 dBu
Output impedance: < 50 Ohms, all outputs, all attenuator settings
Dynamic range: 105 dB
THD + Noise: 0.01%
Programmable inputs:
SPN812: 15
SPN1612, 1624, 2412: 30
Frequency response: 20 Hz – 21 kHz ± 1 dB
Latency: Single PCB: 1.333 ms; System: 1.333 ms + 0.125 for each addn'l PCB
Monitor output: Any of the 48 final mixes
Output power: 50 mW
Contents
- 1 - Power Cord (Part #21499)
- 1 - Plug (Part #21558)
- 10 - 5-position Plug (Part #21580)
- 1 - USB Cable (Part #21713)
- 1 - Patch Cable (Part #21802)
- 1 - Adjustment Tool (Part #35679)
- 1 - Software CD (Part #ASPENNETWIN)
- 1 - Manual
