Product Code: 040106
Suspension XX-Small is suitable for compact condenser mics such as the Schoeps CCM or Sennheiser MKH 8000 series in a WS9 using a Lemo or Remote MZL cable respectively.
Main Benefits:
- Patented Lyre suspensions provide complete isolation against handling noise whilst safely gripping the microphone
- Our new small and medium modular bars are now more durable and less prone to wear and tear.
- Comfortable pistol-grip handles allow handheld use, but also have a 3/8" boom adaptor in the base for quick transfer boom operation
Description

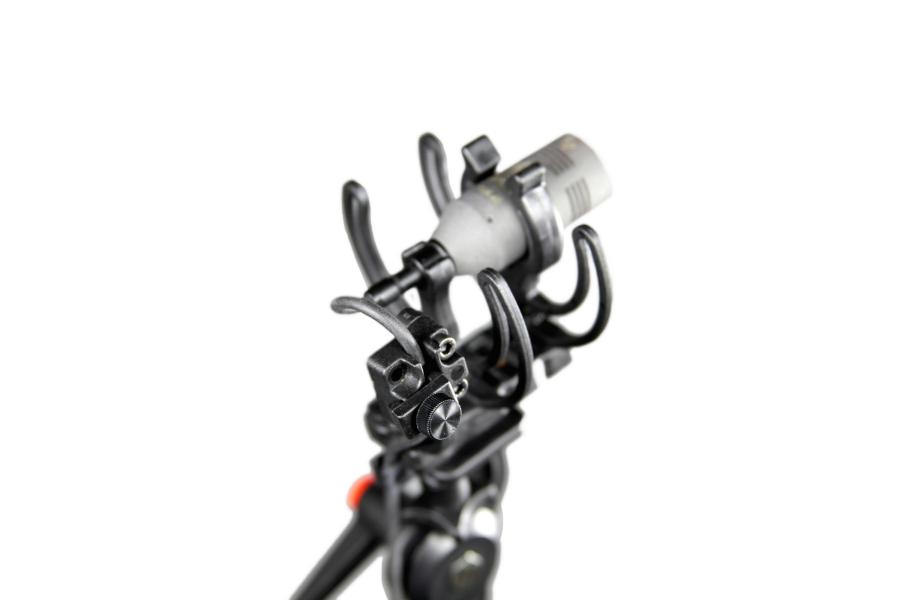

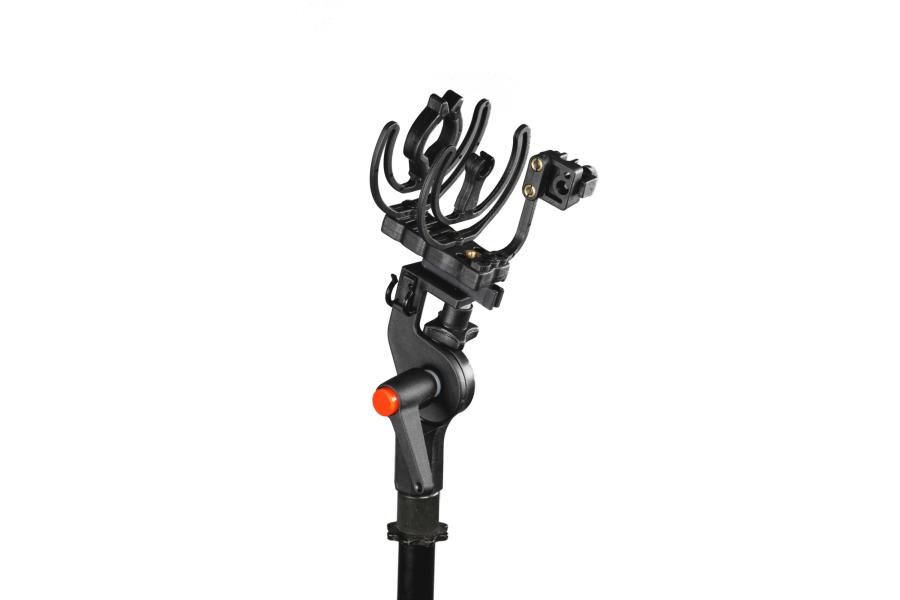

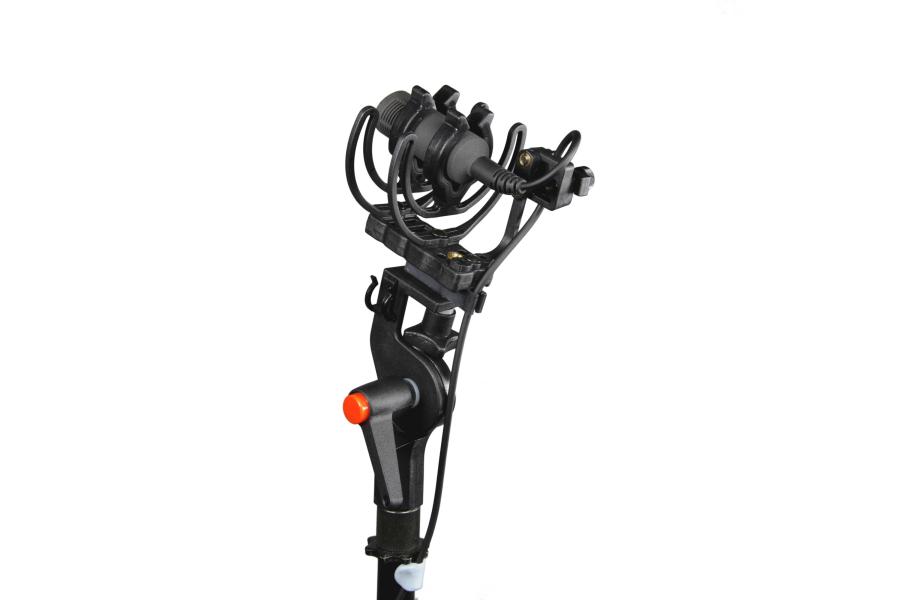

For compact condenser microphones or remote capsule setups. Equipped with two different Lyres mounted on the Mono Extended Ballgag Suspension. The front Lyre is a special 19/25mm diameter clip for holding the main part of the compact microphone. The rear Lyre is either an 8mm clip to hold the Lemo collar (Schoeps CCM) or a second 19/25mm clip to grip further back on the body (Sennheiser MKH 8000).
Tech Specs
Bar: XX Small half module (40mm length)
Lyres Fitted: 1 x Single Lyre 62 (19/25) and 1 x Single Lyre 62 (8)
Lyres as Spare: 1 x Single Lyre 62 (19/25)
Connbox: No Connbox
Small Modular suspensions are suitable for shotgun microphones from approximately 120mm to 210mm in length, and diameters ranging from 19-25mm, 30mm or Sennheiser MKH microphones.
Medium Modular suspensions are suitable for shotgun microphones from approximately 210mm to 400mm in length, and diameters ranging from 19-25mm, 30mm or Sennheiser MKH microphones.
Large Modular suspensions are suitable for heavier shotgun microphones from approximately 400mm up to 540mm in length, and diameters ranging from 19-25mm, 30mm or Sennheiser MKH microphones.
Contents
1x Single Lyre 62 (19/25), 1 x Single Lyre 62(8)
1x Single Lyre 62 (19/25) (as spare)
1 x X Small (3/4 module) Bar
1 x Hex Head Key
