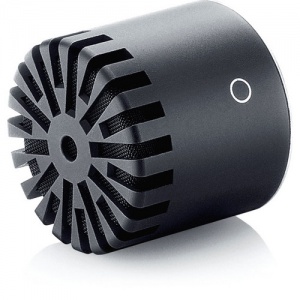

The DPA MMC2006 Twin Diaphragm Omni Microphone Capsule is a modular omnidirectional capsule with a transparent audio quality and wide frequency response. The MMC2006 yields a low noise floor and is a versatile solution for use with any of the DPA MMP series output stage / preamplifiers.
Main Benefits
- Modular Capsule for MMP Preamplifiers
- Transparent Audio Quality
- Omnidirectioal Polar Pattern
- Fast Impulse Response
- Large Frequency Bandwidth
Description
The MMC2006 Twin Diaphragm Omnidirectional Microphone Capsule is a linear omnidirectional mic capsule. The distinctive sound is well balanced. This capsule bridges the gap between the extreme sound quality of the d:dicate™ Microphones series and our well-known Miniature Microphones in the d:screet™ and d:fine™ series.
Inside this capsule, two opposite-facing miniature capsules are custom rebuilt. They are placed into a double-diaphragm, one-capsule composition. This combines the advantages of small capsules with the lower inherent noise achieved from a larger diaphragm area. These capsules provide fast impulse response and large frequency bandwidth.
The capsules are loaded to the supreme d:dicate™ Microphone series preamplifiers instead of the tiny miniature FET ones. This gives the sound more air and precision.
Comparisons with its big brother, the iconic MMC4006 capsule, are inevitable. The relationship between the two can be clearly heard. The MMC2000 series performs as well as more exclusive microphones. It is a premium-class mic capsule and redefines the term value for money.
The MMC2006 capsule is part of the flexible d:dicate™ Microphone series. The MMC2006A, with the MMP-A preamplifier, is the audiophile’s choice. It provides low distortion and accurate sound. The MMC2006C, with the MMP-C compact preamplifier, offers a subtle character alteration with a bit more 'body' to the low end. The MMC2006C is also easier to position.
Tech Specs
Directional pattern: Omnidirectional
Principle of operation: Pressure
Cartridge type: Pre-polarized condenser, Twin Diaphragm Capsule
Frequency range: 20 Hz - 20 kHz
Frequency range, ±2 dB: 50 Hz - 20 kHz with typ. 3 dB soft boost at 14 kHz
Sensitivity, nominal, ±2 dB at 1 kHz: 40 mV/Pa; -28 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 16 dB(A) re. 20 µPa (max. 18 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 28 dB (max. 30 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 78 dB(A)
Microphone diameter: 19 mm (0.75 in)
Microphone length: 17 mm (0.67 in)
Temperature range: -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH): Up to 90%
