Product Code: 041104
Suitable for compact mics such as the Schoeps CCM series and miniature shotgun mics such as the AKG C747. The 9.5mm Lyre clips feature a reducing sleeve which grips the connector and the cable, leaving the body of the microphone free to be completely covered by a foam.
Main Benefits:
- Virtually indestructible
- Offers much improved isolation from camera noise compared to other on-camera microphone mounts
- No elasticated parts — never sags or needs rethreading
Description

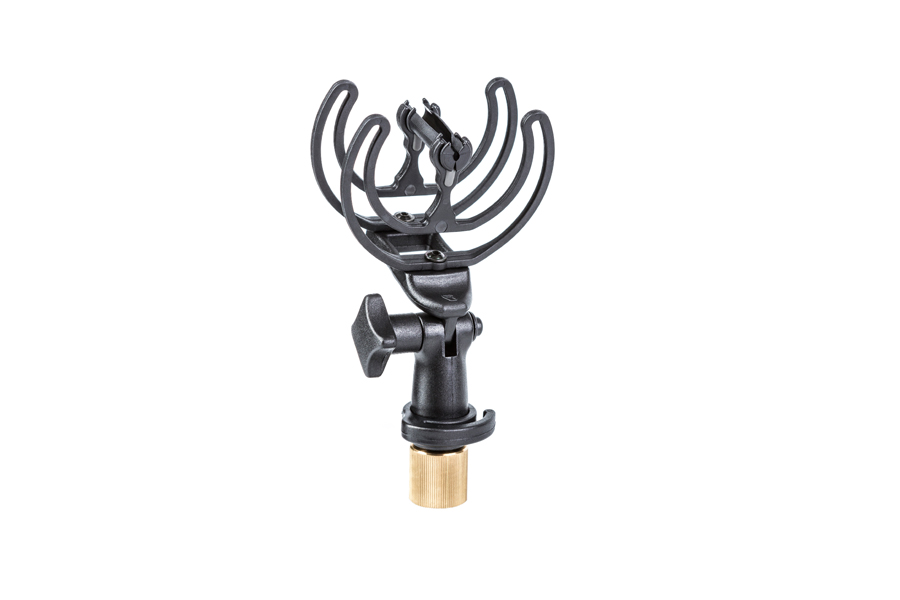

Part of the larger InVision range of noise-reducing microphone shock-mounts, Rycote's InVision Broadcast, are designed for discreet, low-profile on-camera use in broadcast studio environments where windshielding is not required.
The InVision Broadcast mounts feature Rycote's latest Lyre suspension systems to offer broadcast professionals the cleanest possible sound, free from unwanted cable or stand-borne noise. They may be used with microphones mounted on desks, stands or boom poles, or suspended mics.
Tech Specs
Suitable for mics including the AKG C747, Sennheiser ME36 and Audio-Technica AT853a, AT831b, and AT803b.
Fitted with:
- 2 x 9.5mm clips with Standard (70mm wide) Lyre, and a reducing sleeve
- Standard bar with 25mm (1") centres
- Sleeve clips onto the microphone connector and the cable, leaving the microphone casing free to be fitted with a foam windscreen if required
An InVision set contains two Lyre, an appropriate length mounting bar, and in some cases, a reducing sleeve (InVision INV-4). The Lyre suspension webs of our InVision come in two sizes: - InVision Lyre width: 43 mm - Standard Lyre width: 70 mm Mounting bars come in two sizes: - Standard length: 25 mm - Large length: 70 mm The reducing sleeve allows for smaller microphones (e.g. Schoeps CCM series) to be held by the Lyre.
Compatibility
| AKG C 747 |
This pre-polarised condenser microphone offers a slim profile, for unobtrusive podium mounting, and extended low and high frequency r... |
| Ambient TinyMic |
A miniature shotgun microphone, the Tiny Mike has been specially developed for use with consumer video cameras when used in a profess... |
| Audio-Technica AT 803b |
The AT803b is designed for clip-on lavalier and musical instrument use. Its small size is ideal for applications requiring minimum vi... |
| Audio-Technica AT 831 Series |
This clip-on lavalier mic also excels in acoustic guitar applications and provides crisp, full-sounding voice and instrument pickup.... |
| Audio-Technica ES 933CW |
For more information on this specific microphone, go to Audio-Technicas website at http://www.audio-technica.com/world_map/.
|
| Audio-Technica ES 933WH |
For more information on this specific microphone, go to Audio-Technicas website at http://www.audio-technica.com/world_map/.
|
| Audio-Technica ES 933WML |
For more information on this specific microphone, go to Audio-Technicas website at http://www.audio-technica.com/world_map/.
|
| Audio-Technica PRO45 |
The PRO 45's high-SPL handling is perfect for suspension over choirs and orchestras and it features a wide-range condenser element wi... |
| Audio-Technica PRO70 |
A small pickup capsule which can function as both a lavalier and also an instrument microphone. It can operate on ether battery or ph... |
| DPA 4023 |
The 4023 uses the same type of cartridge as the famous 4011, but is preamplified using a built-in, ultra-small, thick-film mounted FE... |
| DPA 4028 |
A similar compact design to the 4021 but with a wide cardioid pick-up pattern. This allows recording of a broader sound field which i... |
| DPA 4033 |
The 4033 uses the same type of cartridge as the 4007 reference microphone, but is preamplified using a built-in, ultra-small, thick-f... |
| DPA 4036 |
The 4036 uses the same type of cartridge as the 4007 reference microphone, but is preamplified using a built-in, ultra-small, thick-f... |
| DPA 4052 |
The 4052 uses the same type of cartridge as the famous 4006, but is preamplified using a built-in, ultra-small, thick-film mounted FE... |
| DPA 4053 |
The 4053 uses the same type of cartridge as the famous 4006, but is preamplified using a built-in, ultra-small, thick-film mounted FE... |
| MBHO KA Series w/MBP 648A |
As far as the technical features are concerned, the MBP 648 A is identi- cal to the MBP 648. It has been developed for specific recor... |
| Milab VM-44 |
The transformerless VM-44 Classic puts the focus on detail, designed to yield maximum clarity when dealing with fast transients and a... |
| Schoeps CMC Remote Capsule |
SCHOEPS offers 20 different microphone capsules, including omnidirectional, wide cardioid, "Open Cardioid," super cardioid ... |
| Sennheiser ME 36 |
The ME 36 is a miniature shotgun capsule with a supercardioid/lobar pattern that fits onto a range of goosenecks which in turn mount... |
