Product Code: 086017
The Modular Windshield WS 9 kit is suitable for use with compact condenser mics when used with remote or active cables such as Schoeps CCM range (lemo) and Sennheiser MKH8000 range (MZL). Please note, this product is not supplied with a Connbox.
Main Benefits:
- Flexible, complete windshield and suspension package, which provides varying levels of windshielding for numerous microphone configurations
- The iconic Windshield Kit is the industry standard, and leads the way in windshielding and suspension technology
Description

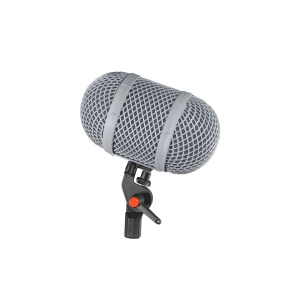

The Modular Windshield WS 9 Kit offers a unique and highly effective solution for compact condenser microphones requiring wind protection and maximum shock isolation. It completely surrounds the compact microphone, sliding onto the XX-Small Suspension to provide up to 25dB of wind noise attenuation. The wind attenuation performance is equivalent to a Rycote full sized Windshield yet in a much smaller and lighter package – only 170mm x 105mm including end caps.

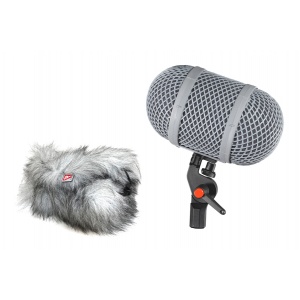

High quality synthetic fur-cover Windjammer for WS 9 provides the highest possible protection against extreme wind-noise. When using a Windjammer fitted over a Windshield up to 35 dB of windnoise attenuation can be achieved, producing excellent exterior audio recordings.
Tech Specs
Total Windshield Length: 170 mm (includes the End Caps)
Height: Windshield 100mm
Net Weight:
Gross Weight:
Windjammer Fur Length: 40mm
Windjammer Fur Colour: Grey
Microphone Connector: No Connbox supplied
Max Wind-noise Attenuation: 35 dB
Finding the correct Windshield Kit will depend on the type, length and diameter of the microphone.
Because the whole microphone is encased in a windshield basket the total length of the microphone including the XLR cable must be accounted for, this means adding 50mm to the length of the mic.
For a windshield to work effectively the microphone should be mounted centrally within the windshield, therefore the microphone + XLR length should approximately equal the windshield body length. The body length of our windshields is the total length, excluding end caps.
Compatibility
| Neumann KM 100 series |
The variable condenser miniature microphone system consists of several active microphone capsules with different directional characte... |
| RODE NT-6 |
A remote capsule design microphone for use where unobtrusive placement is required. The compact capsule is a 13mm design that can be ... |
| Schoeps CCM CCM41/CCM8 (Compact Mics) |
For more information on this specific microphone, go to Schoeps website at http://www.schoeps.de/en/home |
| Schoeps CCM Series (Hard wired) |
For more information on this specific microphone, go to Schoeps website at http://www.schoeps.de/en/home |
| Schoeps CMC MK41/MK8 (Remote Capsule) |
For more information on this specific microphone, visit Schoeps website at http://www.schoeps.de/en/home |
Contents
|
|

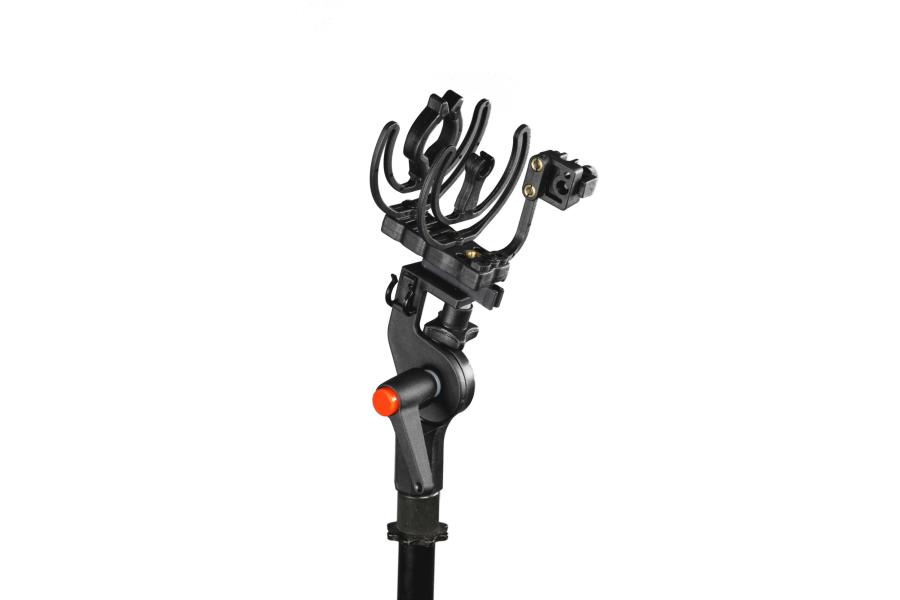

1 x Suspension XX-Small
Product Code: 040106
Suitable for compact condenser mics in a WS9 |
|
|
1 x Windjammer WJ 9
Product Code: 021509
Suitable for use with the Windshield 9 |
|
|
1 x Windshield WS 9
Product Code: 010605
Suitable for compact condenser mics
|
|
|
1 x XLR Holder MK II
Product Code: 048493
The XLR Holder Mk II fits between any 3/8" male threaded boom pole or mic stand and any 3/8" female microphone shock-mount or windshield system
|
|
|
1 x Boom Poles Adaptor
Product Code: 048402
|
|
|
1 x Pistol Grip Handle with Lever
Product Code: 048401
|
1 x Single Lyre 62 (19/25)
1 x Single Lyre 62(8)
1 x Single Lyre 62(19/25) (as spare)
Brush
Hex head Key
