Schoeps CMC 1 U

Name: Schoeps CMC 1 U
Brand: Schoeps
SKU: S132011
Price: 684.00 EUR
Availability: InStock
Rating: 4.85713 (35 reviews)

-46,00 € discount
~~730,00 €~~ (~~927,10 €~~ incl. VAT)
684,00 €
(868,68 € incl. VAT)

available: on stock

–

Add to cart

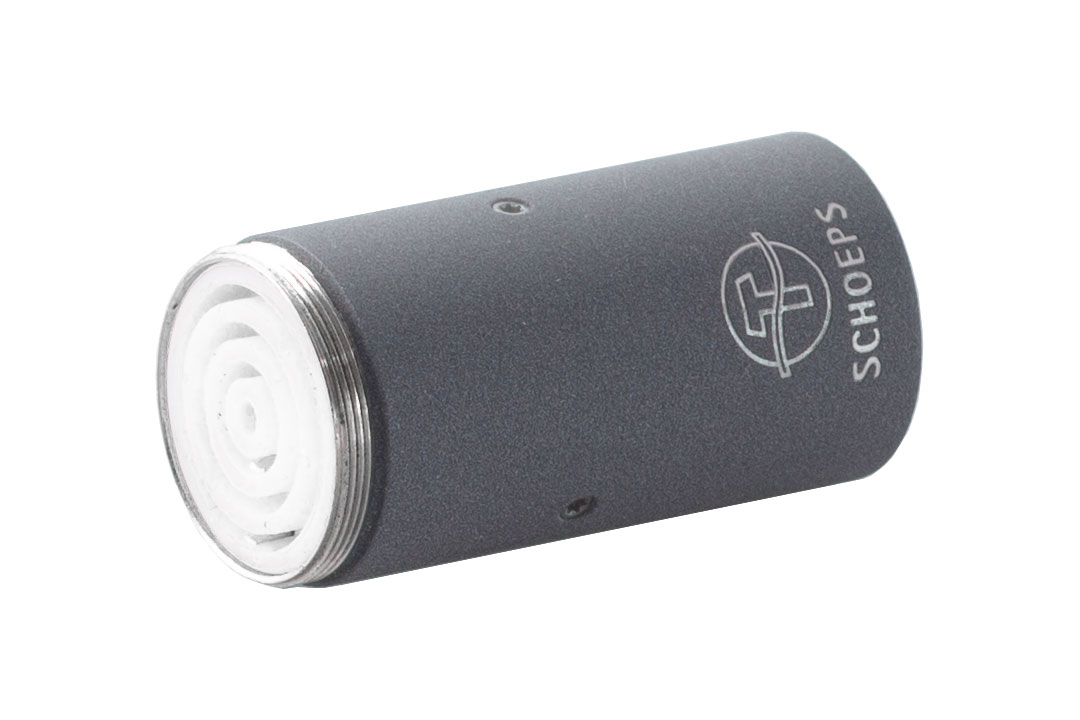

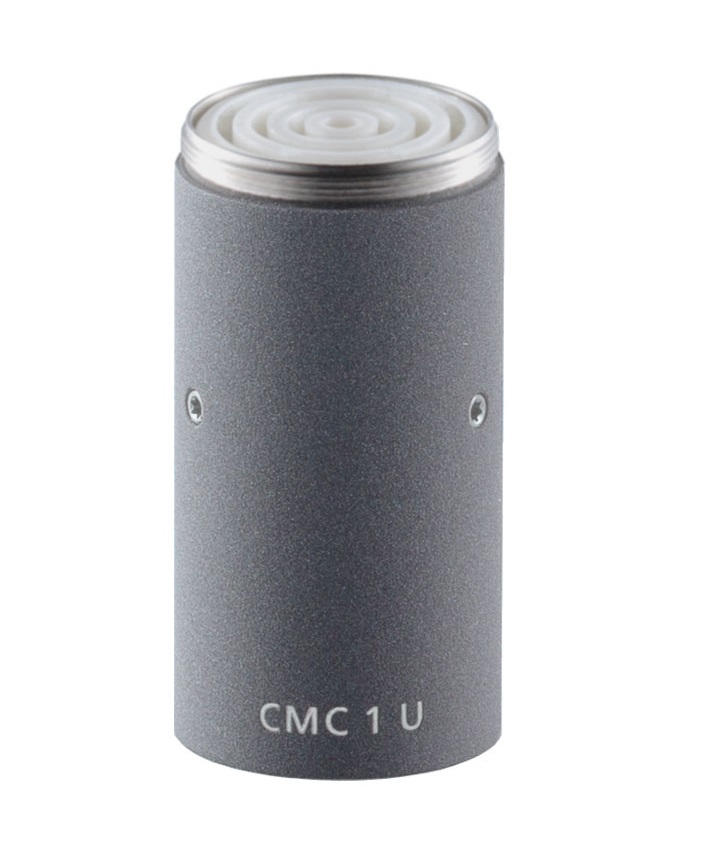

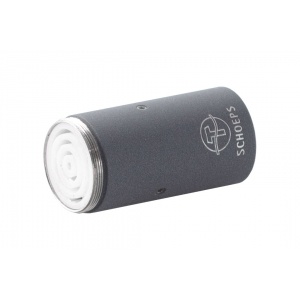

The CMC 1 is a new, small Colette microphone amplifier, about one-third the size and 40% lighter than the CMC 6. It is compatible with all components of the Colette system and can be used in place of the CMC 6 without compromise, for all applications in which the size and weight of the microphone play a role.

Main Benefits

Complete alternative to the renowned CMC 6
Fully compatible with all existing MK capsules and Colette active accessories such as the CUT 60 and RC tubes
Suitable mounting accessories are already available, such as the CINELA E-OSIX-CMC1U and the Rycote INV-6 elastic suspensions.
High maximum SPL: 135 dB-SPL with the MK 4 (0.5% THD or less)
Very low current consumption: 2.0 mA at 48 Volts
Operates on 48 V or 12 V phantom power
Very high immunity from RF interference with the SCHOEPS RFI Shield

Description

At SCHOEPS, “uncompromising miniaturization” means that the electrical characteristics of the CMC 1 are equal to, or even better than, those of the CMC 6. Through modern electronic design, these outstanding electrical properties have been achieved:

High maximum SPL: 135 dB-SPL with the MK 4 (0.5% THD or less)
Very low current consumption: 2.0 mA at 48 Volts
Operates on 48 V or 12 V phantom power
Very high immunity from RF interference with the SCHOEPS RFI Shield

Tech Specs

Frequency range	20 Hz-20 kHz
Sensitivity	see corresponding capsule
Maximum output voltage	1,8 V (5 dbV) with 1 kΩ load
Maximum sound pressure level (THD < 0.5 %)	135 dB-SPL (P48) with MK 4 131 dB-SPL (P12) with MK 4
Low cut filter	20 Hz, 12 dB/oct
Output impedance	50 Ω +/- 1 Ω (8 Hz - 50 kHz)
Minimum recommended load impedance	1 kΩ
Common mode rejection ratio (at 1 kHz)	> 55 dB
Maximum cable length	> 400 m / ~1300 ft

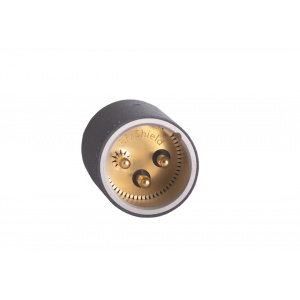

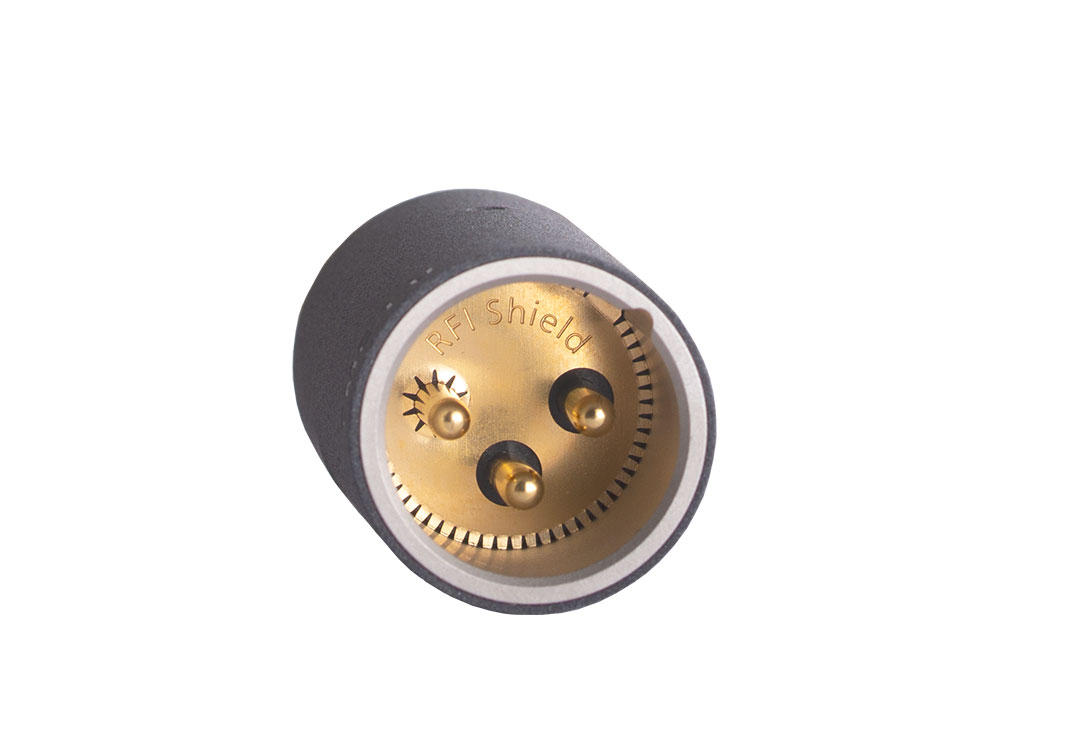

SCHOEPS RFI Shield	Yes
Powering standard / Valid range	P48 / 30-52 V P12 / 11-13 V
Current consumption	2 mA (P48) 3 mA (P12)
Output	XLR-3M, analog, 1 channel
Length	39 mm / ~1.5"
Diameter	20 mm / 0.8"
Weight	36 g / 1.3 oz
Surface finish	matte gray (g) or custom color

Application

Alignment of vertical capsules with the CMC 1/6:

The CMC 1 U can be used in many suspensions (e.g. OSIX) that have a rigid orientation of the XLR connector and thus the amplifier. Also in the compatible MS and dual MS setups (for example, Cyclone), the alignment is fixed. As a result, the microphone cannot be rotated arbitrarily in such a suspension. For axially aligned capsules like the MK 4 this is not important, but a vertical capsule like the MK 8 has to be aligned radially.

In such cases, this accessory helps:

No. 800540: O-ring for radial alignment of a MK capsule. This O-ring is placed on the thread of the amplifier and makes the MK capsule permanently stable in any orientation. The O-ring is included with the MK 8 and all other vertical capsules (MK 4V, 41V) and can also be ordered separately.
