DPA d:fine 4288 In-Ear Broadcast Headset Microphone, 120 mm, Directional Boom, MicroDot, Dual-Ear, 1 In-Ear

Description

The d:fine™ In-Ear Broadcast Headset Microphones series is the first broadcast solution that gives you uncompromising mic performance and convenient in-ear communication.

No more fiddling with two parallel systems – one for the mic and one for the in-ear communication. This unique line of mics was developed specifically for broadcast professionals who insist on superior voice reproduction but also appreciate ease of use and outstanding comfort. The d:fine™ In-Ear Broadcast Headset Microphones series is available in both omnidirectional and directional variants.

Setting new standards for the broadcast industry

Already the worldwide leader in headset mics for theater and broadcast applications, the d:fine™ In-Ear Broadcast Series now adds an integrated in-ear monitor to create a broadcast and communication headset with outstanding acoustic performance and feather-light comfort.



The in-ear drivers allow no audio leakage to the microphone capsule. They are easily driven due to their high sensitivity. Two sizes of ear-pads are included to fit most ears.

The cable steer, located at the headset mount, controls the cable run down the neck. You can easily adjust the headset mount size.

These innovative headsets – the first of their kind – are designed for broadcast professionals who insist on superior voice reproduction without compromising on simple setup and daylong comfort.

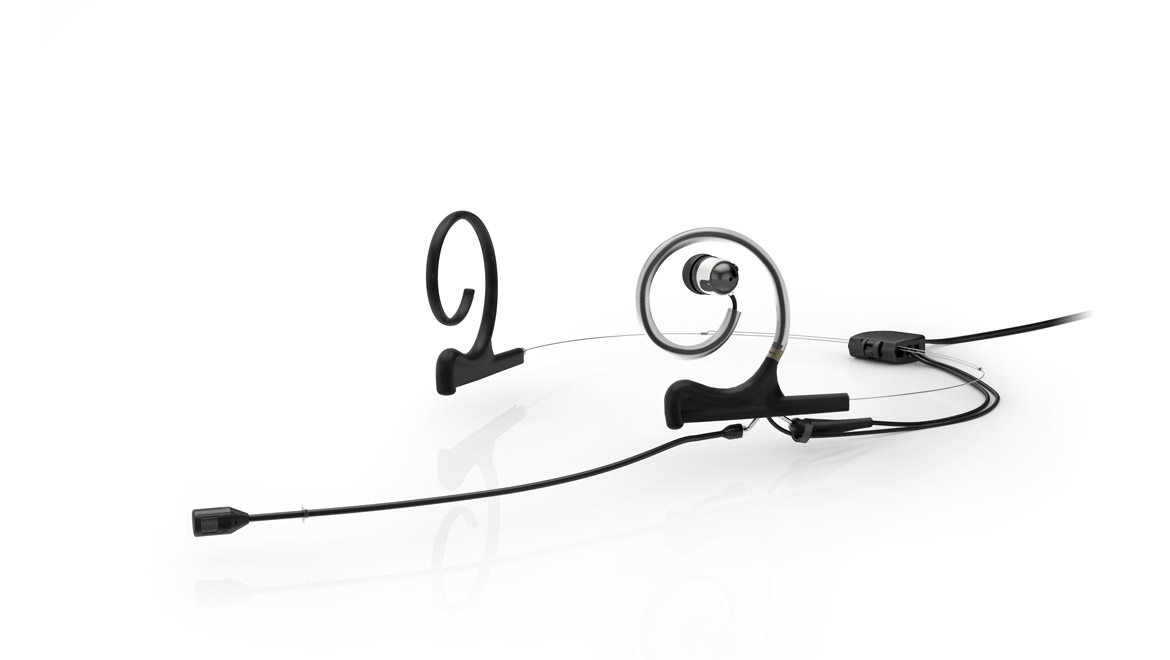

d:fine™ 4288 Directional In-Ear Headset Mic

The d:fine™ 4288 Directional In-Ear Broadcast Headset Microphone combines the legendary sound of the 4088 Directional Capsule with a lightweight and flexible headset system. Staying true to the DPA legacy, d:fine™ offers accurate and natural voice intelligibility and very high-SPL capabilities – users can both speak and sing into the mic with no hint of distortion.

This mic comes in either a Single In-Ear  or Dual In-Ear version. It is available in both black and beige.

A bit about cardioids

Named for its “heart shaped” polar pattern, a cardioid (or directional) microphone has the most sensitivity at the front and is least sensitive from the sides and at the back. They come in many variations – with wider or narrower angles of sensitivity (supercardioid, hypercardioid, wide cardioid etc.). Although cardioids also pick up sound coming in from the sides, this off-axis sound will normally be more or less colored and damped. The unique DPA capsule technique however skips the colorization of the sound coming from the sides or the rear of the mic and just reduces the sensitivity to these angles and thereby offers perfect sound stages. The amount of damping depends on the exact specifications of the mic.

A cardioid microphone is, by definition, damped -6 dB at the 90°side entry of the microphone but for many, the word cardioid generally covers mics with a directional pattern versus omnis, which pick up sound from all directions.

Due to their nature, directional mics are often used on the live stage – both during concerts as well as spoken-word events, to capture the focused sound of an instrument or voice. The narrow angle of sensitivity helps to minimize the bleed from other sounds on a busy stage. One thing to note with cardioid mics is the proximity effect, which causes an increase in bass response the closer the microphone is moved to the sound source. Therefore, when judging mic specs you should always look for a statement stating the distance at which the flat frequency response has been measured. In addition, cardioid mics are far more sensitive to wind, pop and handling noises than omni mics, so be sure to take precautions to guard against this.


Adapter system gives you flexibility

The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a completely new microphone. When you make the switch, you won't hear any loss or change in sound quality.



The d:fine™, d:screet™ and d:vote™ series of miniature microphones work with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom and many more. DPA Microphones’ ingenious adapter system is one of a kind in the industry. It protects your investment in fantastic sound for years to come.

Tech Specs

4288 Frequency response

Typical on and off-axis response of a d:fine™ 4288

4288 Polar pattern

Typical directional characteristics of a d:fine™ 4288

Downloads

In-Ear User's Manual

In-Ear Flyer
