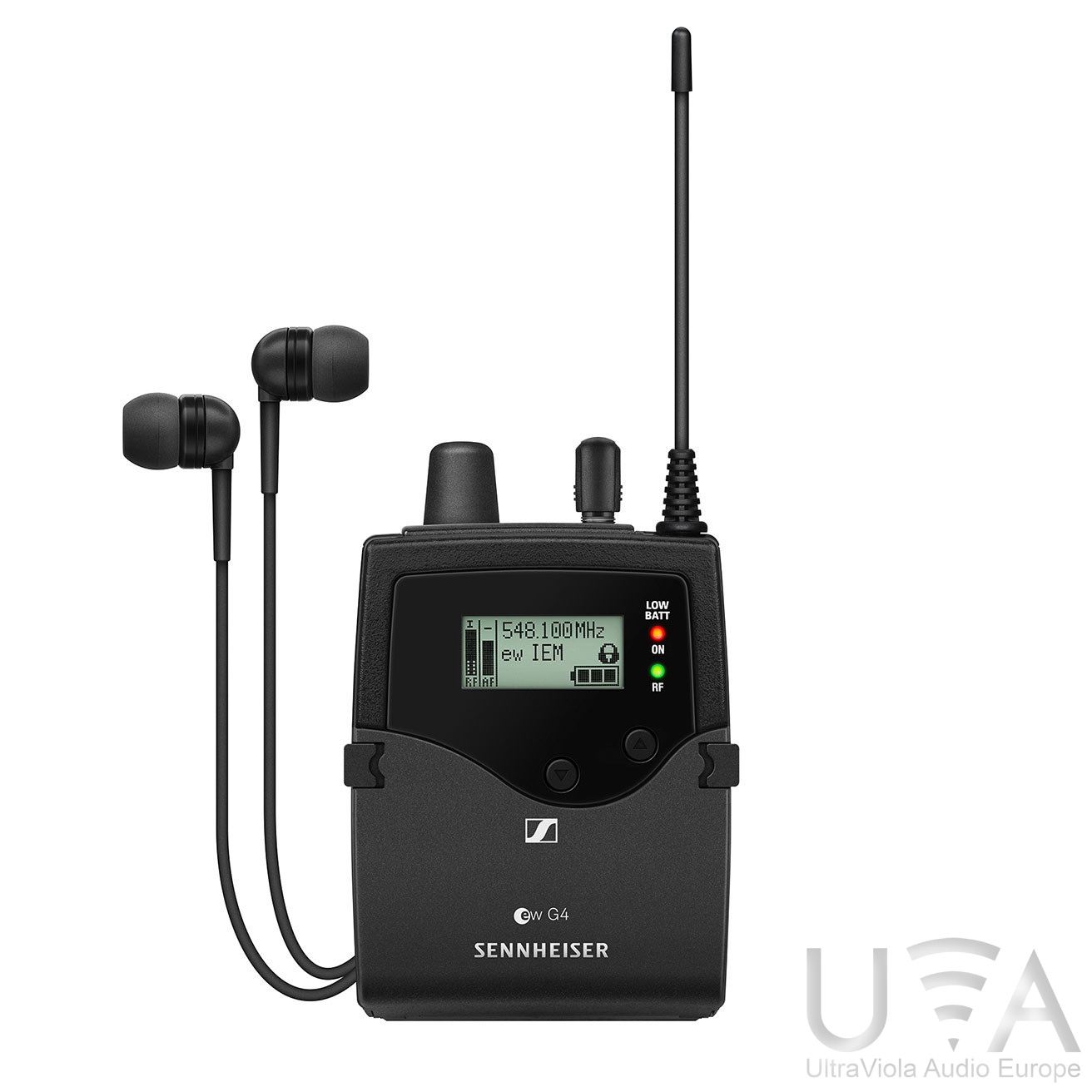

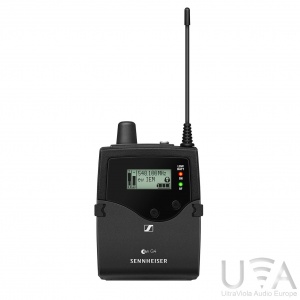

Sennheiser EK IEM G4-G
Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage with evolution wireless G4 In Ear Monitoring systems.
Features
-
Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage
-
Easy and flexible wireless synchronization between transmitter and receiver via infrared
-
Compatible with Sennheiser WSM control software for flexible frequency allocation
-
Up to 16 compatible channels
-
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
-
Transmission Range: up to 100 meters / 300 feet
-
High RF output power (up to 50 mW) depending on country regulations
Tech Specs
-
- Frequency range
-
-
- Dimensions
-
-
- Compander
-
-
- THD, total harmonic distortion
-
-
- Weight
-
(incl. batteries) approx. 125 g
-
- Signal-to-noise ratio
-
-
- Switching bandwidth
-
-
- Peak deviation
-
-
- Nominal deviation
-
-
- Operating time
-
approx. 4 to 6 hours (depending on volume level)
-
- Modulation
-
-
- Power supply
-
2 AA batteries, 1.5 V or BA 2015 accupack
-
- Current consumption
-
at nominal voltage: approx. 140 mA
with transmitter switched off: ≤ 25 µA
-
- Adjacent channel rejection
-
-
- Audio-Output-Power
-
-
- Intermodulation attenuation
-
-
- Limiter
-
–18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off
-
- Powering
-
3 V battery / 2.4 V rechargeable battery
-
- Receiving frequency
-
Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
-
- RF sensitivity
-
< 4 μV, typ. 1.6 μV for 52 dBA rms S/N
-
- Squelch
-
5 to 25 dBµV, adjustable in steps of 2 dB
-
- Bass Boost
-
-
- Temperature Range
-
-
- Receiver Principle
-
-
- Blocking
-
Contents
- EK IEM G4 stereo receiver
- 2 AA batteries

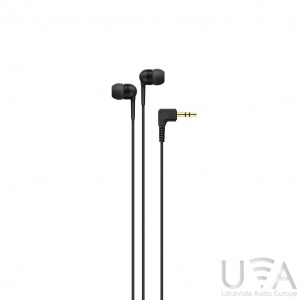

- IE 4 earphones
- quick guide
- safety guide
- manufacturer declaration sheet
